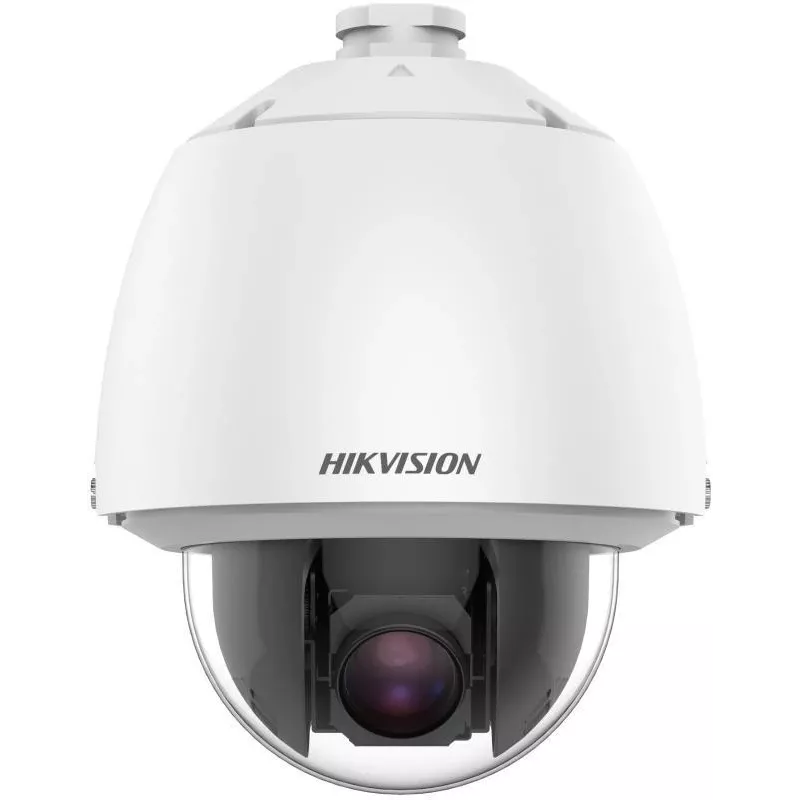

Hikvision DS-2DE5425WG1-E 4 MP 25x netwerk IR PTZ camera

Monitoring large outdoor areas demands a camera that can capture fine details at long distances while withstanding harsh weather. The Hikvision DS-2DE5425WG1-E solves this with a 4 MP sensor and 25x optical zoom, delivering clear images up to 150 m in complete darkness thanks to its powerful IR illumination. Its 360° endless pan and -15° to 90° tilt ensure no blind spots, making it ideal for securing perimeters, parking lots, and industrial sites.

Who is it for

This PTZ camera is built for security professionals and businesses needing reliable, high-detail surveillance over expansive outdoor areas. It suits warehouses, logistics centers, public venues, and critical infrastructure where flexible coverage and long-range identification are essential.

Main features

• 4 MP (2560 × 1440) resolution with 1/2.8" progressive scan CMOS for sharp, detailed footage.
• 25x optical zoom (4.8–120 mm lens) to focus on distant objects without losing clarity.
• 120 dB True WDR for balanced images in challenging backlight or high-contrast scenes.
• IR range up to 150 m for clear night vision in total darkness.
• 360° endless pan and -15° to 90° tilt with auto flip for complete coverage.
• H.265+ compression to reduce bandwidth and storage while maintaining quality.
• IP66 weatherproof rating for reliable outdoor operation in rain, dust, and extreme temperatures.
• Smart detection: line crossing, intrusion, region entrance/exiting, object removal, unattended baggage, audio exception, and face detection.
• MicroSD slot supporting up to 256 GB for local storage.
• Audio and alarm I/O for integration with external sensors and speakers.

Specifications

• Sensor: 1/2.8" progressive scan CMOS
• Resolution: 4 MP (2560 × 1440)
• Optical zoom: 25x (focal length 4.8–120 mm, aperture F1.6–F3.5)
• Minimum illumination: Color 0.005 lux @ F1.6, B/W 0.001 lux, 0 lux with IR
• Pan/tilt: 360° endless, -15° to 90° (auto flip)
• Video compression: H.265+/H.265/H.264+/H.264
• WDR: 120 dB True WDR
• IR range: up to 150 m
• Network: 1 RJ45 10/100 Mbps Ethernet
• Power: 12 VDC, PoE+ (802.3at), max 24 W
• Ingress protection: IP66
• Storage: MicroSD/SDHC/SDXC up to 256 GB
• Audio: 1 in / 1 out
• Alarm: 2 in / 1 out
• Operating temperature: -30°C to 65°C

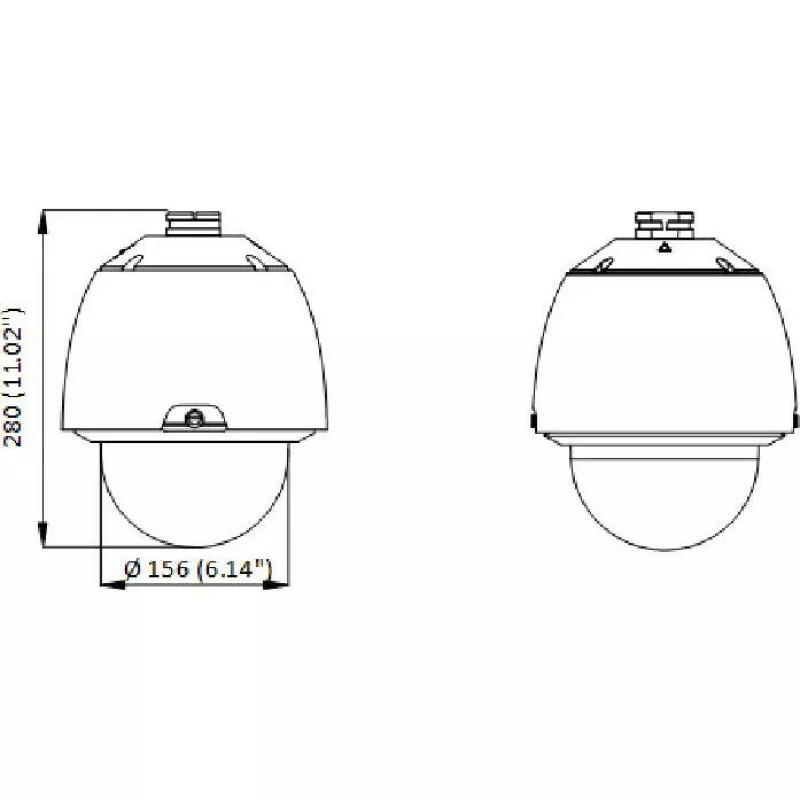

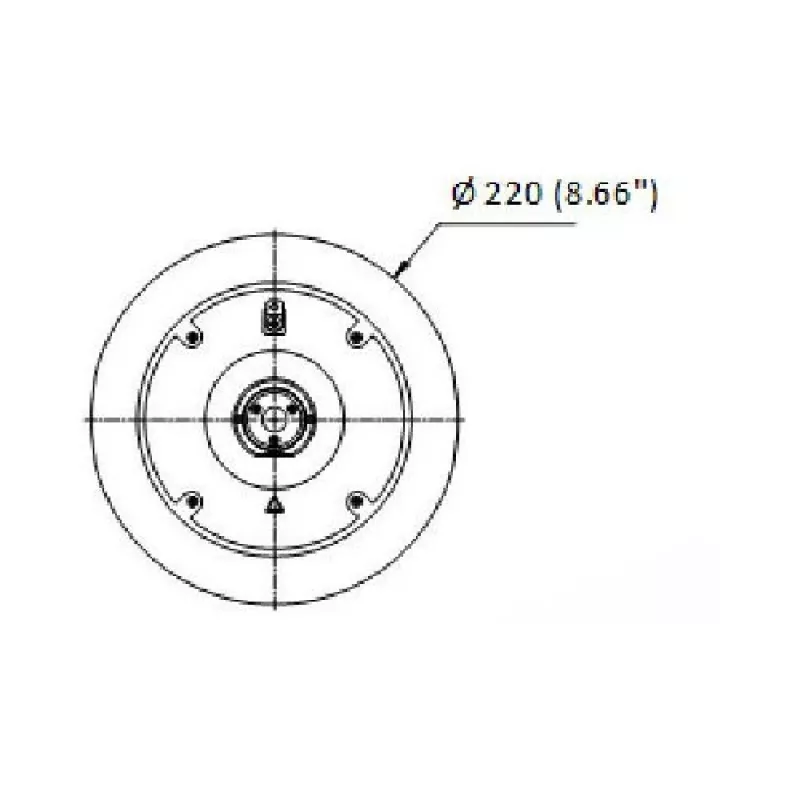

• Dimensions: Ø220 mm × 353.4 mm
• Weight: 4.5 kg

Tips

For optimal performance, mount the camera at a height that allows clear line of sight and use a PoE+ switch or injector to simplify cabling. Configure smart events to trigger recording or alerts, and regularly check the lens and IR LEDs for cleanliness to maintain image quality.
