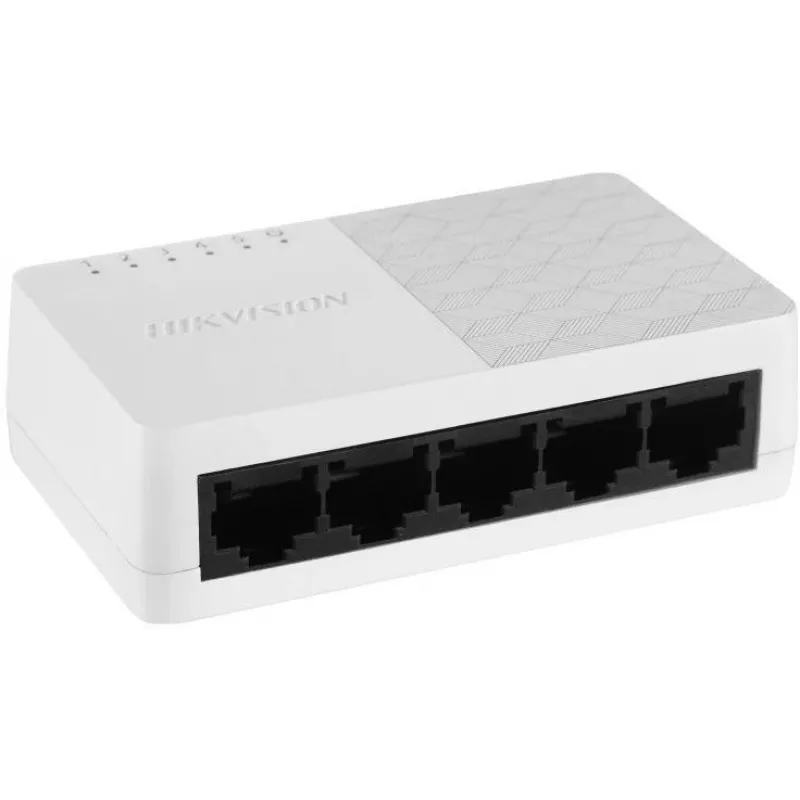

Hikvision DS-3E0105D-O unmanaged Fast Ethernet-switch, 5 poorten, 10/100 Mbps, zwart & wit

The Hikvision DS-3E0105D-O is a compact and reliable unmanaged Fast Ethernet switch designed for small office or home network expansion. With 5 auto-negotiating 10/100 Mbps RJ45 ports, it provides plug-and-play connectivity for computers, printers, IP cameras, and other network devices. Its fanless design ensures silent operation, making it ideal for noise-sensitive environments.

Advantages

This switch offers easy installation with no configuration required. Its energy-efficient design consumes only 1.5 W maximum power, reducing electricity costs. The durable ABS plastic housing and desktop form factor make it suitable for any workspace.

Suitable for

• Small office or home networks
• Expanding wired connectivity for IP cameras, VoIP phones, and computers
• Quiet environments like libraries or meeting rooms

Key specifications

• Switch type: Unmanaged
• Ethernet standard: Fast Ethernet (10/100 Mbps)
• Number of ports: 5 x RJ45
• Switching capacity: 1 Gbps
• Packet forwarding rate: 0.744 Mpps
• MAC address table: 2K entries
• Jumbo frame support: 1536 bytes
• Network protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Power supply: 5 VDC, 0.6 A (external adapter)
• Max power consumption: 1.5 W
• Fanless design: Yes
• Mounting: Desktop
• Operating temperature: 0°C to 40°C
• Operating humidity: 10% to 90% RH (non-condensing)
• Housing material: ABS plastic
• Color: Black & White
• Plug and play: Yes

Recommendations

For optimal performance, use Cat5e or higher Ethernet cables. This switch is ideal for small networks requiring reliable, low-cost connectivity without advanced management features.
