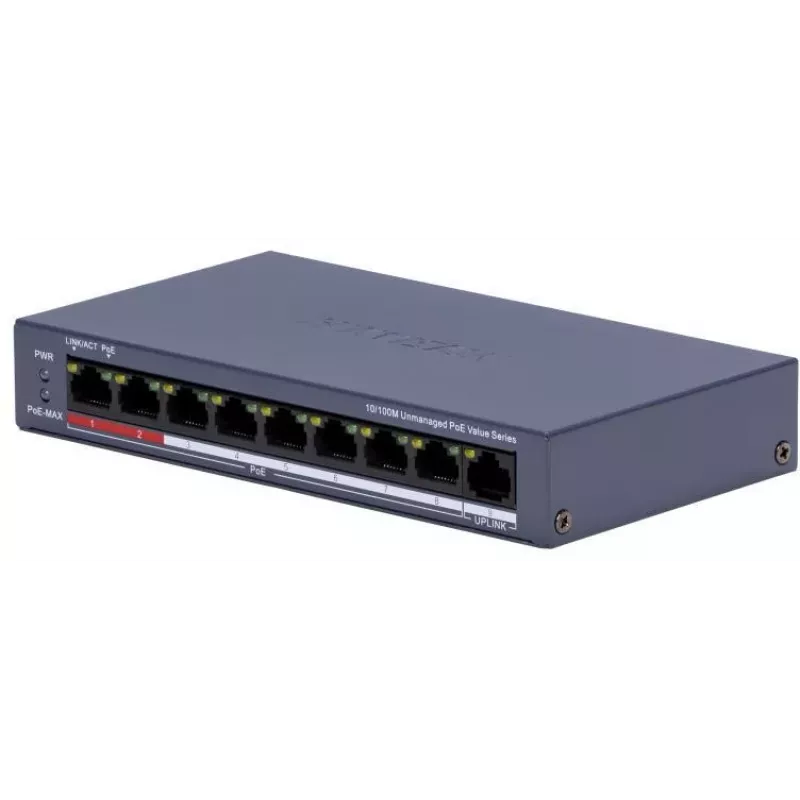

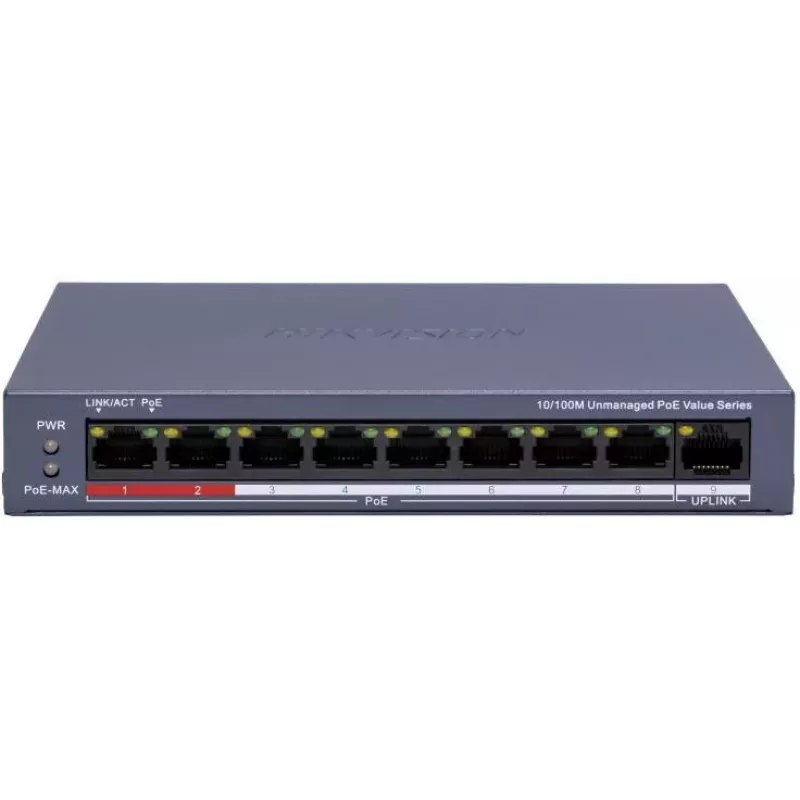

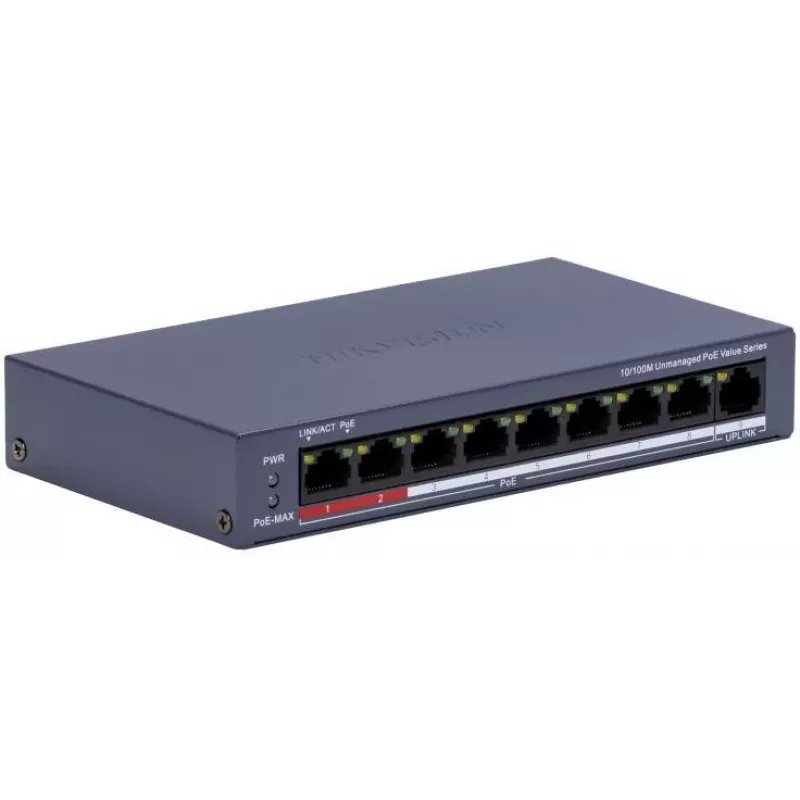

Hikvision DS-3E0109P-E/M(C) 9-poorts Fast Ethernet PoE-switch, 8 PoE-poorten, 65W budget, unmanaged

The Hikvision DS-3E0109P-E/M(C) is a reliable and cost-effective unmanaged PoE switch designed for small to medium-sized network deployments. With 8 Fast Ethernet PoE ports and 1 uplink port, it delivers power and data over a single cable, simplifying installation and reducing costs. Ideal for IP cameras, VoIP phones, and wireless access points, this switch offers a total PoE budget of 65W, with up to 30W per port, supporting both IEEE 802.3af and 802.3at standards. Its compact desktop and wall-mountable design makes it suitable for various environments.

Advantages

Plug-and-play operation with no configuration required, saving time and effort. PoE capability eliminates the need for separate power cables for powered devices. Extended PoE transmission distance of up to 250 meters in Extend Mode provides flexibility in device placement. Robust surge protection of 6 KV on PoE ports ensures reliable operation in demanding conditions.

Suitable for

• Small office/home office (SOHO) networks
• IP surveillance systems
• Wireless access point deployments
• VoIP phone installations

Key specifications

• 9 ports: 8 x 10/100 Mbps PoE + 1 x 10/100 Mbps uplink
• PoE standard: IEEE 802.3af/at, max 30W per port, total budget 65W
• Switching capacity: 1.8 Gbps
• Packet forwarding rate: 1.339 Mpps
• MAC address table: 4K entries
• Jumbo frame support: 1536 bytes
• Power supply: External adapter, 48 VDC input
• Max power consumption: ≤ 70W
• Operating temperature: 0°C to 40°C
• Mounting: Desktop or wall-mounted

Recommendations

For optimal performance, use with Hikvision IP cameras or other PoE-compatible devices. Ensure the total power draw of connected devices does not exceed 65W. The switch is unmanaged, so advanced features like VLANs or QoS are not available. For larger networks, consider a managed switch.
