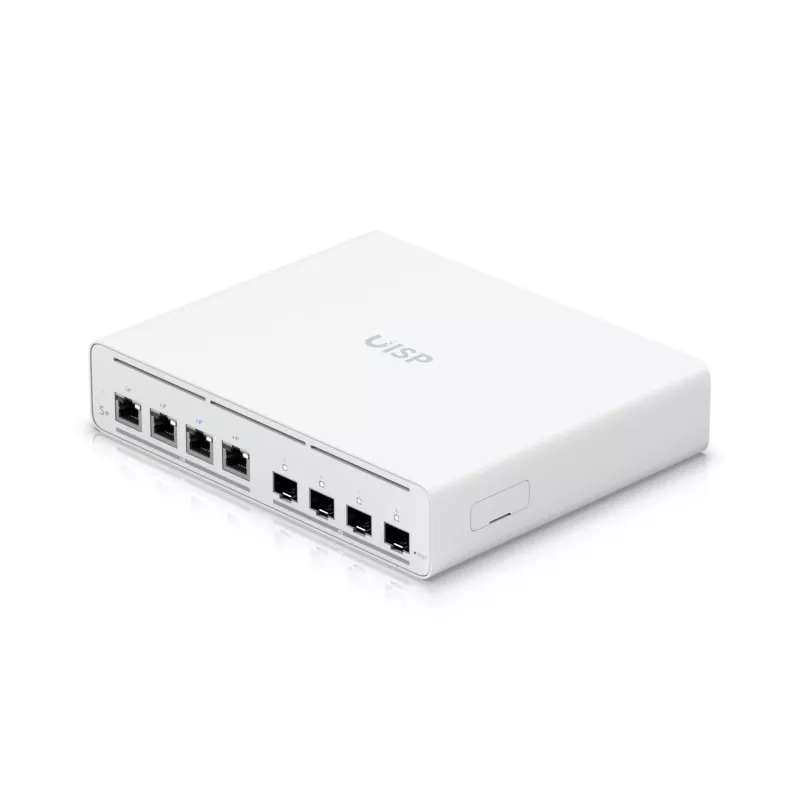

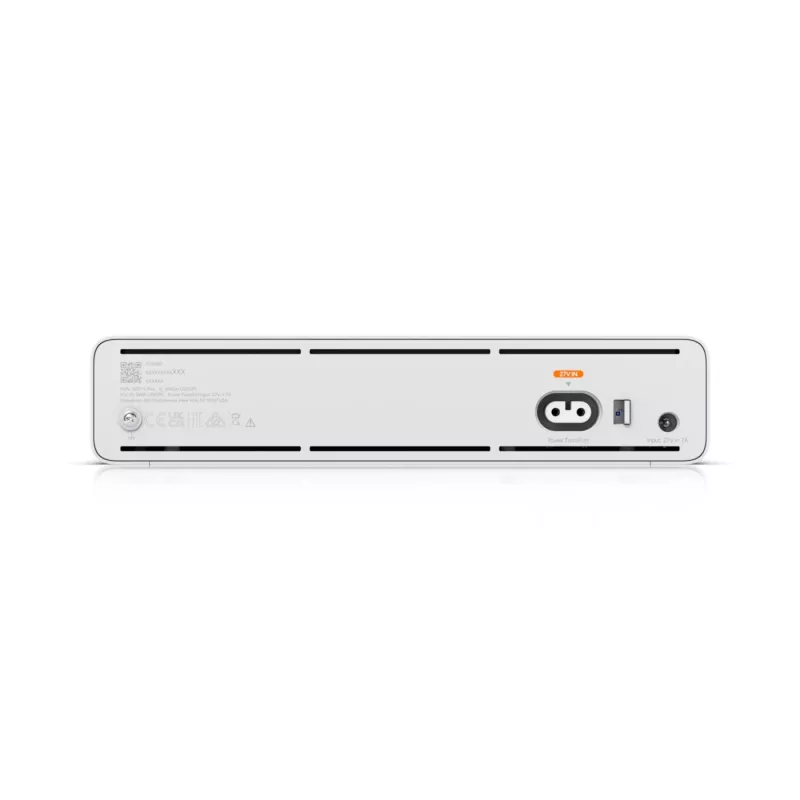

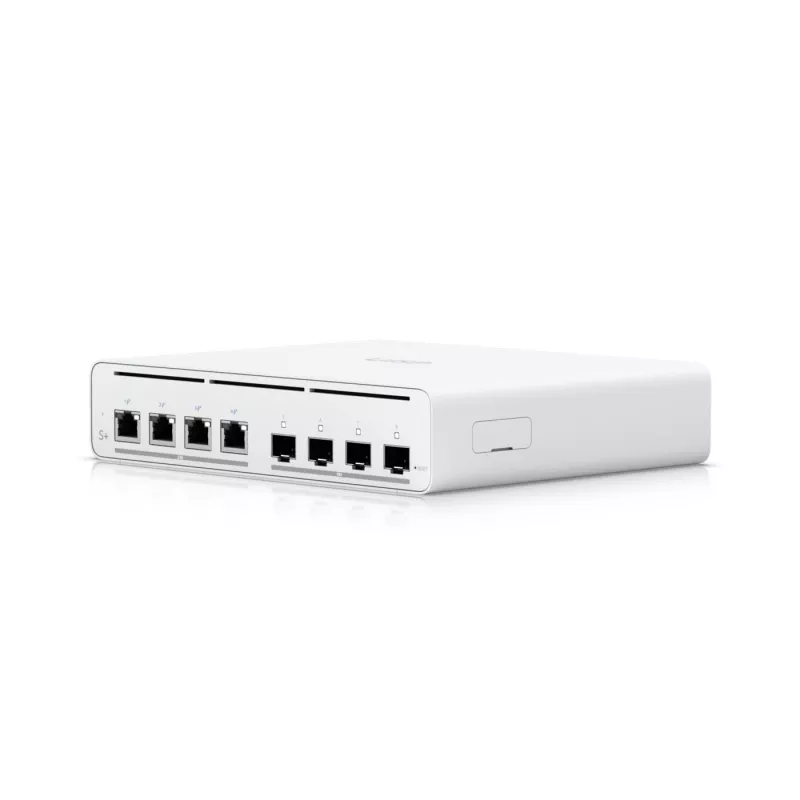

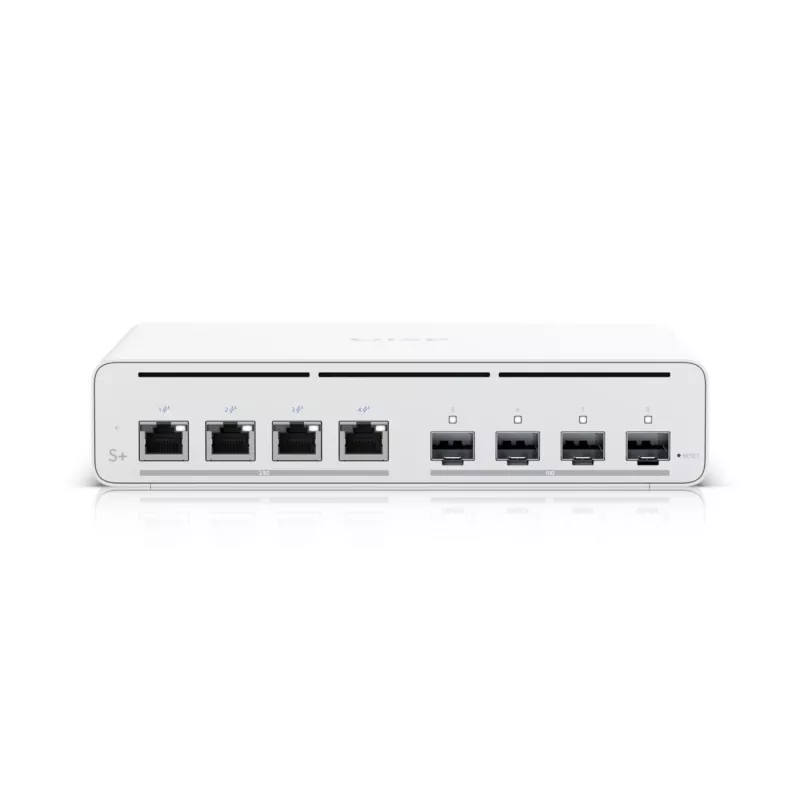

Ubiquiti UISP-S-PLUS-EU 8-poorts 2,5GbE PoE++ switch met 10G SFP+ uplink, 200W budget

For ISPs and network integrators needing high-speed access switching without the bulk of enterprise chassis, the Ubiquiti UISP-S-PLUS-EU packs eight 2.5 GbE PoE++ ports and a 10G SFP+ uplink into a compact steel enclosure. Its 200W total PoE budget can power Wi-Fi 6 access points, IP cameras, and other 60W devices directly from the switch, eliminating separate injectors. Managed through the UISP application, this switch simplifies deployment and monitoring across distributed sites.

Highlights

• 8× 2.5 Gigabit Ethernet ports with PoE++ (IEEE 802.3bt) up to 60W per port
• 1× 10G SFP+ uplink for high-capacity backhaul or aggregation
• 200W total PoE power budget, internal 240W AC/DC power supply
• Layer 2 switching with 60 Gbps switching capacity and 44.64 Mpps forwarding rate
• Fanless, SGCC steel enclosure for quiet operation in wiring closets or desks
• ESD/EMP protection: ±16 kV air, ±12 kV contact

In daily use

Connect a mix of PoE-powered devices—such as UISP airMAX radios, UniFi access points, or third-party IP cameras—directly to the eight 2.5 GbE ports. Each port can deliver up to 60W, enough for the most demanding PoE++ endpoints. The 10G SFP+ uplink ensures non-blocking connectivity to a core switch or router, even when all eight access ports are running at full 2.5 Gbps. Because management is entirely in-band via the UISP application, there is no separate out-of-band management port to configure; simply adopt the switch into your UISP controller and push VLANs, port profiles, and monitoring from a single pane of glass.

Full specifications

• Ethernet Ports: 8× 2.5 Gigabit Ethernet (RJ45)
• Uplink Ports: 1× 10 Gigabit SFP+
• PoE Standard: PoE++ (IEEE 802.3bt) on all 8 ports
• Total PoE Power Budget: 200W
• Max. PoE Wattage per Port: 60W (PoE++)
• Switching Capacity: 60 Gbps
• Forwarding Rate: 44.64 Mpps
• Management Interface: Ethernet In-Band (UISP Application)
• Power Method: 100-240V AC, 50/60 Hz Universal Input
• Power Supply: Internal 240W AC/DC
• Max. Power Consumption (Excl. PoE): 30W
• Operating Temperature: -20 to 45° C (-4 to 113° F)
• Enclosure Material: SGCC Steel
• ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
• Layer Support: Layer 2

Final note

The UISP-S-PLUS-EU is a purpose-built access switch for ISP and managed service provider networks, delivering high PoE budgets and 2.5 GbE performance in a durable, fanless design that fits easily into any deployment.
