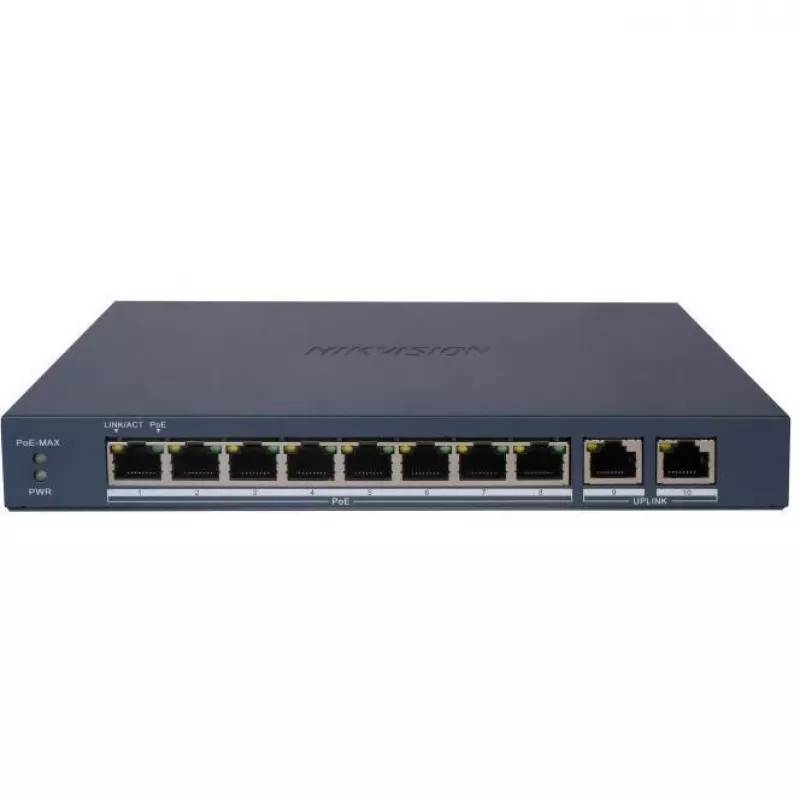

Hikvision DS-3E1510P-EI/M(B) LinkVu 10-poorts Layer 2 managed PoE-switch met 8 PoE-poorten en 2 SFP-uplinks

The Hikvision DS-3E1510P-EI/M(B) LinkVu is a high-performance Layer 2 managed PoE switch designed for small to medium-sized network deployments. With 8 PoE ports and 2 SFP uplink ports, it provides reliable power and data connectivity for IP cameras, access points, and other PoE devices. The switch supports IEEE 802.3af/at PoE standards with a total power budget of 110W, and features Hi-PoE on port 1 for up to 60W. Its fanless design ensures silent operation, making it ideal for office and indoor environments.

Advantages

This switch offers advanced management features including VLAN, QoS, and SNMP, allowing for flexible network configuration and monitoring. The PoE Watchdog and Long Range PoE (up to 300m) enhance reliability and extend deployment possibilities. With a switching capacity of 20 Gbps and jumbo frame support, it ensures smooth data transfer for bandwidth-intensive applications.

Suitable for

• IP surveillance systems
• Wireless access points
• VoIP phone networks
• Small business networks
• Edge network deployments

Key specifications

• 10 total network ports: 8 x 10/100/1000 Mbps PoE RJ45 + 2 x 1000 Mbps SFP
• PoE standard: IEEE 802.3af/at, Hi-PoE on port 1 (up to 60W)
• PoE power budget: 110W
• Switching capacity: 20 Gbps
• Packet forwarding rate: 14.88 Mpps
• MAC address table: 8K
• Jumbo frame support: 10 KB
• VLAN support: 802.1Q
• QoS support: WRR, SP, WFQ, WRED
• Spanning Tree Protocol: STP/RSTP/MSTP
• Management: Web GUI, CLI, SNMP, Telnet
• Operating temperature: -10°C to 55°C
• Power supply: 100-240 VAC, 50/60 Hz
• Fanless design
• Desktop and rack-mountable

Recommendations

For optimal performance, use this switch with Hikvision IP cameras and NVRs. Ensure proper ventilation when rack-mounting. The PoE Watchdog feature automatically reboots connected devices if they become unresponsive, reducing maintenance efforts.
