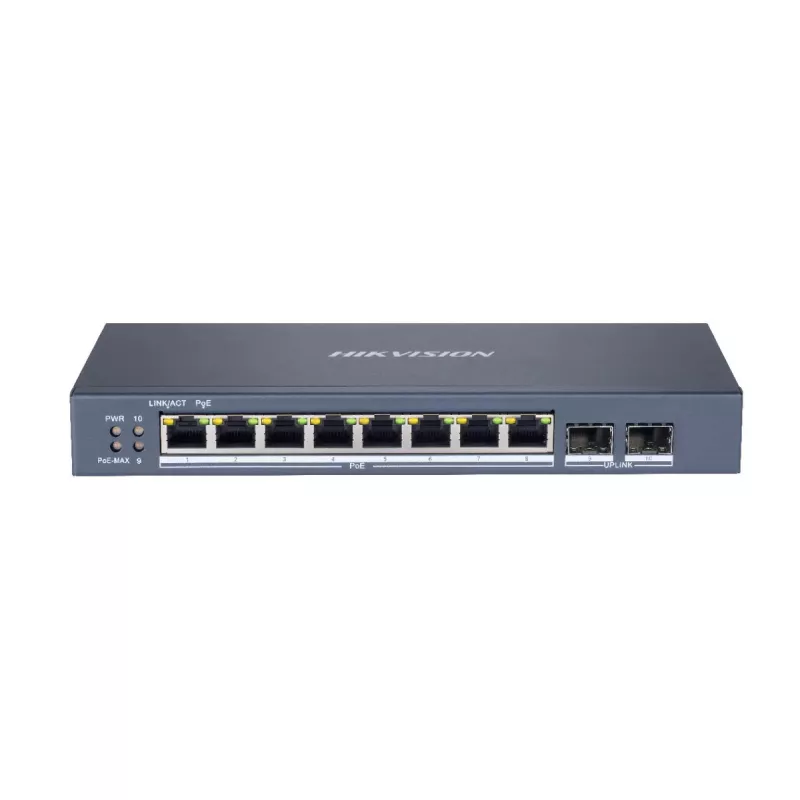

Managed L2 Gigabit Ethernet-switch Hikvision DS-3E1510P-SI

The Hikvision DS-3E1510P-SI is a managed L2 Gigabit Ethernet switch offering eight Gigabit RJ-45 ports with Power over Ethernet (PoE) capability. Designed for small to medium networks, the switch provides a 20 Gbit/s switching capacity and a MAC address table capable of storing up to 8000 entries, enabling stable traffic forwarding and device connectivity. Compliance with a range of IEEE networking standards ensures interoperability with common Ethernet devices and reliable power delivery to PoE endpoints.

Advantages

The switch combines Gigabit performance on all ports with integrated PoE to power cameras, access points and other powered devices without separate power supplies. Managed L2 features allow VLAN segmentation, link aggregation and basic traffic control to optimize network performance. A compact black metal enclosure and a moderate weight make the unit suitable for rack or wall mounting in confined spaces.

Suitable for

• Small to medium office networks requiring segmented traffic and PoE support
• IP surveillance deployments where cameras need both data and power over the same cable
• Wireless access point backhaul and PoE-powered AP installations
• Edge switching in retail, hospitality or branch locations with limited rack space

Key specifications

• Switch type: Managed L2
• Port configuration: 8 × Gigabit RJ-45 (10/100/1000) with PoE support
• Switching capacity: 20 Gbit/s
• MAC address table size: 8000 entries
• Supported standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af, 802.3at
• Product colour: Black
• Weight: 1.21 kg
• 10G support: No

How to use

Install the switch on a flat surface, in a cabinet or on a wall bracket following local installation practice and ensuring adequate ventilation. Connect uplink and endpoint devices using standard Cat5e or Cat6 cables to the Gigabit RJ-45 ports. Configure network parameters through the switch’s management interface to set VLANs, link aggregation, QoS and PoE behavior according to site requirements. Monitor status LEDs and the management console for port activity, link speed and PoE power usage.

Recommendations

Use shielded or unshielded Ethernet cabling rated for Gigabit speeds (Cat5e/Cat6), plan PoE power budget for all connected devices before deployment, and separate management traffic with a dedicated VLAN. Apply firmware updates from the manufacturer and keep the switch in a cool, ventilated location to maintain reliable performance.
