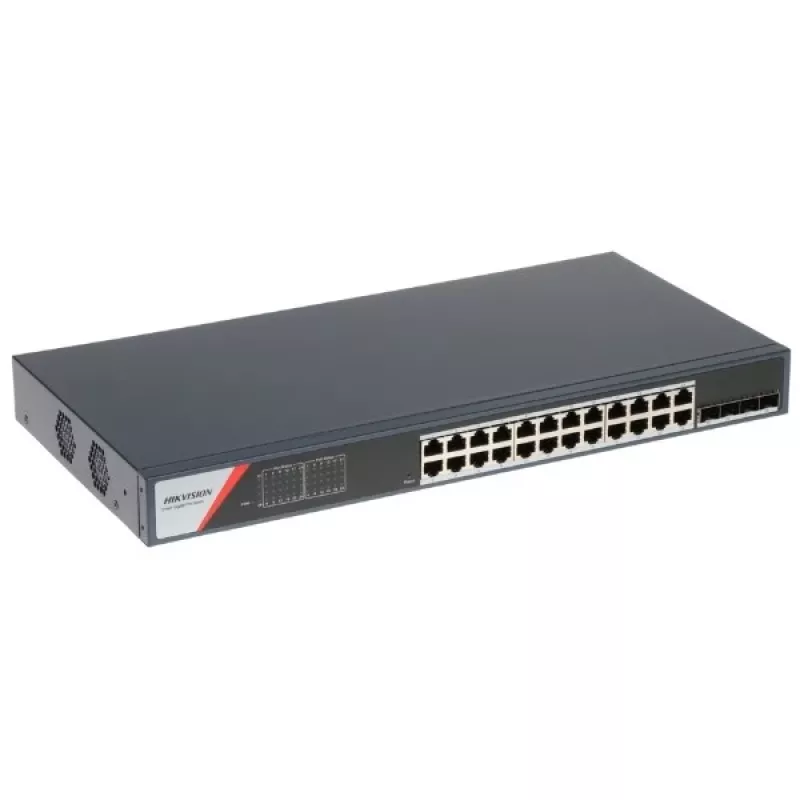

Hikvision DS-3E1528-SI-24T4F Layer 2 managed PoE-switch, 24 PoE-poorten, 4 SFP-uplinks, 370W PoE-budget

The Hikvision DS-3E1528-SI-24T4F is a high-performance Layer 2 managed PoE switch designed for small to medium-sized business networks. With 24 Gigabit PoE ports and 4 SFP uplink slots, it delivers reliable power and data connectivity for IP cameras, wireless access points, and VoIP phones. The switch offers a total PoE budget of 370W, supporting IEEE 802.3af/at standards with up to 30W per port.

Advantages

Robust security features including IP-MAC-Port-VLAN binding, ARP inspection, DHCP snooping, and 802.1X authentication ensure network integrity. Advanced QoS with 8 priority queues and flexible scheduling optimizes traffic for voice and video. The switch supports VLANs, link aggregation (LACP), and spanning tree protocols (STP/RSTP/MSTP) for network resilience.

Suitable for

• IP surveillance systems requiring PoE for cameras
• Wireless network deployments with PoE access points
• Converged networks with VoIP and data traffic
• Edge switching in enterprise or campus networks

Key specifications

• 24 x 10/100/1000 Mbps PoE ports (IEEE 802.3af/at)
• 4 x 1000 Mbps SFP uplink ports
• Switching capacity: 56 Gbps
• Packet forwarding rate: 41.66 Mpps
• MAC address table: 16K entries
• Jumbo frame support: 9 KB
• VLAN support: 4K VLANs, port-based, IEEE 802.1Q
• QoS: 8 priority queues, WRR/SP/WFQ
• Management: Web, CLI, SNMP v1/v2c/v3, Telnet, RMON
• Security: IP-MAC-Port-VLAN binding, ARP inspection, DHCP snooping, DoS protection, 802.1X
• Power supply: 100-240 VAC, 50/60 Hz
• Operating temperature: 0°C to 45°C
• Mounting: 1U rack-mountable

Recommendations

Ideal for network administrators seeking a cost-effective, feature-rich managed switch with PoE. The DS-3E1528-SI-24T4F provides the necessary performance and security for modern business networks.
