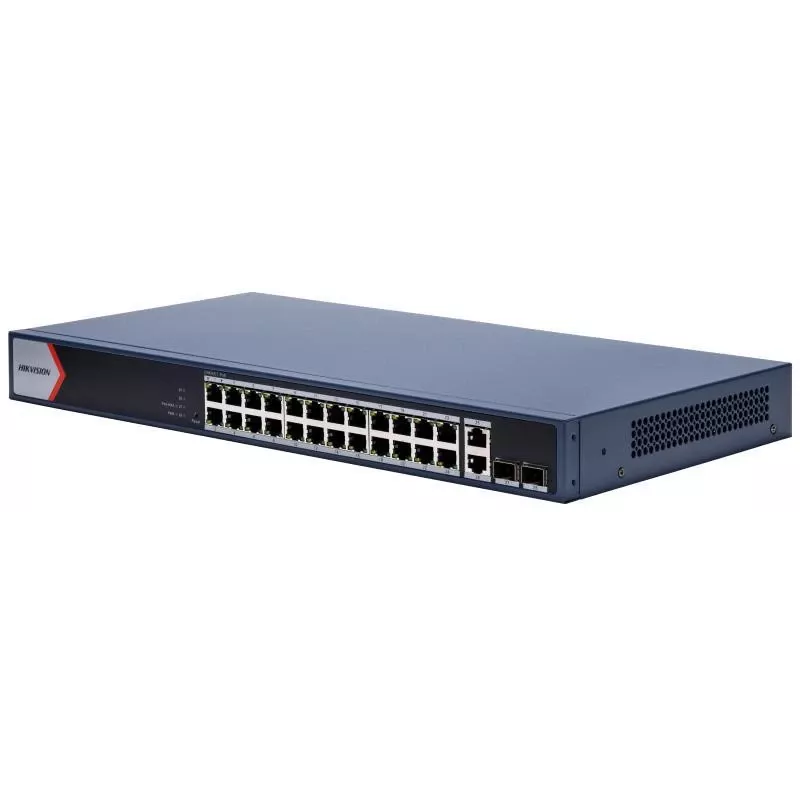

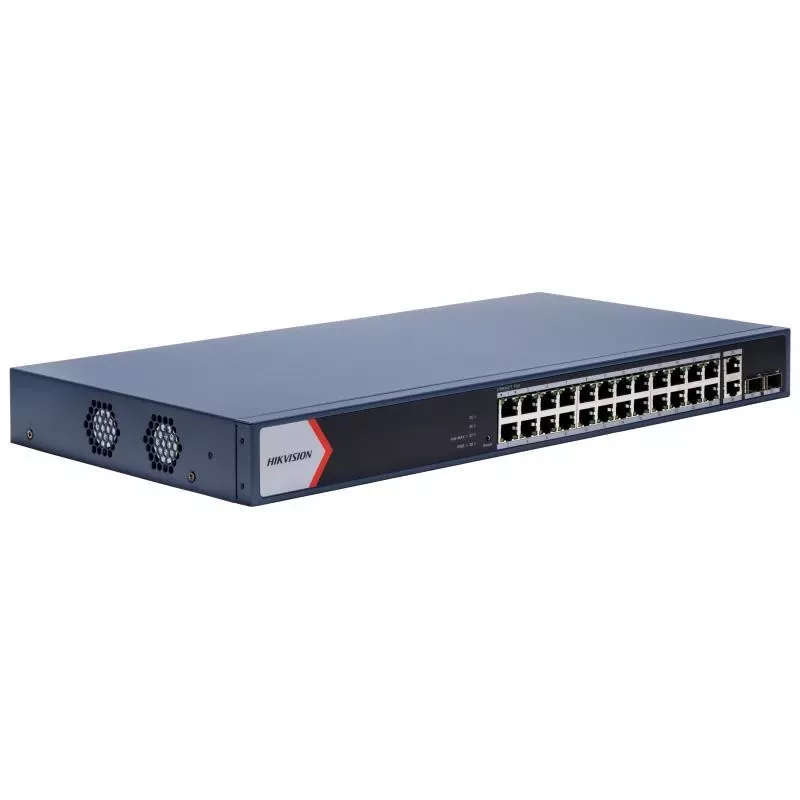

Hikvision DS-3E1528P-EI 24-poorts Gigabit PoE+ Managed Switch

The Hikvision DS-3E1528P-EI is a high-performance Layer 2 managed switch designed for medium to large-scale network deployments requiring Power over Ethernet. With 24 PoE+ ports and a total power budget of 370W, it supports IEEE 802.3af/at/bt standards, delivering up to 60W per port on select ports for high-power devices such as PTZ cameras and wireless access points. The switch features 2 Gigabit RJ45 uplink ports and 2 Gigabit SFP slots for flexible fiber connectivity, ensuring seamless integration into existing networks.

Advantages

This switch offers robust management capabilities including VLAN, QoS, IGMP snooping, and SNMP, enabling efficient traffic control and network optimization. Its 56 Gbps switching capacity and 41.66 Mpps forwarding rate ensure wire-speed performance even under heavy loads. The 6 kV surge protection on PoE ports enhances reliability in outdoor or industrial environments. With a rack-mountable design and fanless operation, it is ideal for noise-sensitive areas.

Suitable for

• Enterprise networks requiring centralized power and data distribution
• IP surveillance systems with high-power PTZ cameras
• Wireless LAN deployments with multiple access points
• Industrial environments needing robust surge protection

Key specifications

• 24 PoE ports (IEEE 802.3af/at/bt) with total budget 370W
• 2 Gigabit RJ45 + 2 Gigabit SFP uplink ports
• Switching capacity: 56 Gbps
• Packet forwarding rate: 41.66 Mpps
• MAC address table: 16K
• Jumbo frame support: 10 KB
• VLAN support: 802.1Q
• Surge protection: 6 kV on PoE ports
• Power supply: 100-240 VAC, 50/60 Hz
• Operating temperature: -10°C to 55°C

Recommendations

For optimal performance, use Category 6 or higher cabling for PoE++ devices. Ensure adequate ventilation when mounting in a rack. This switch is an excellent choice for expanding network capacity while simplifying power management.
