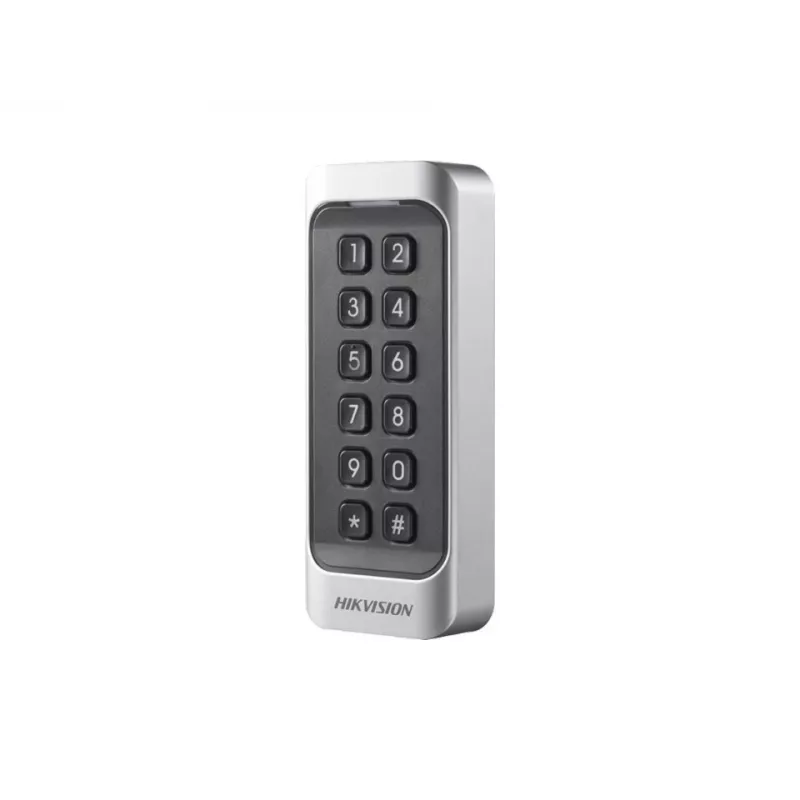

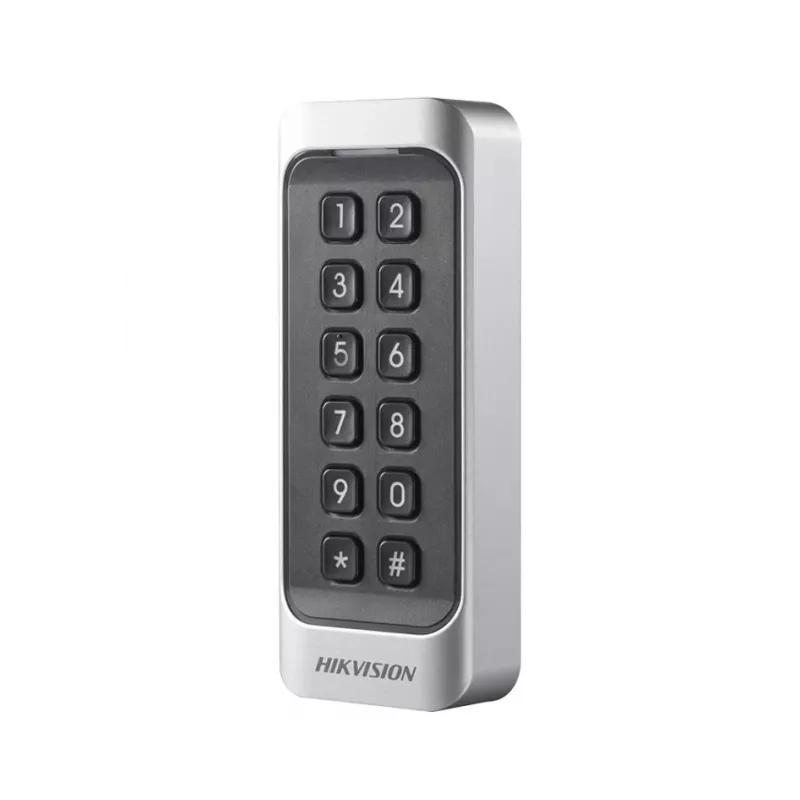

Hikvision DS-K1107AMK proximity-lezer met toetsenbord

The Hikvision DS-K1107AMK is a proximity reader with a keypad, designed for access control applications. It operates at 13.56 MHz and supports RS-485, Wiegand (W26/W34), and OSDP protocols.

Key features

• Proximity reader with 12-button keypad (0-9, *, #)
• Read range up to 50 mm
• Audio alarm and tamper alarm
• LED indicators: power and status
• ID settings via DIP switch on mainboard

Specifications

• Brand: Hikvision
• MPN: DS-K1107AMK
• Power supply: 12VDC
• Power consumption: ≤ 2W
• Protection degree: IP65
• Processor: 32-bit
• Memory: 32 MB
• Operating frequency: 13.56 MHz
• Keypad: 12 buttons (0 to 9, *, #)
• Supported protocols: RS-485, Wiegand (W26/W34); OSDP
• Read range: up to 50 mm
• Audio alarm
• Tamper alarm
• LED indicators: power indicator; status indicator
• ID settings: via DIP switch on mainboard
• Operating temperature: -20°C to 65°C
• Operating humidity: 10% to 90%
• Weight: 0.13 kg
• Dimensions (H x W x D): 115 x 44 x 22 mm
