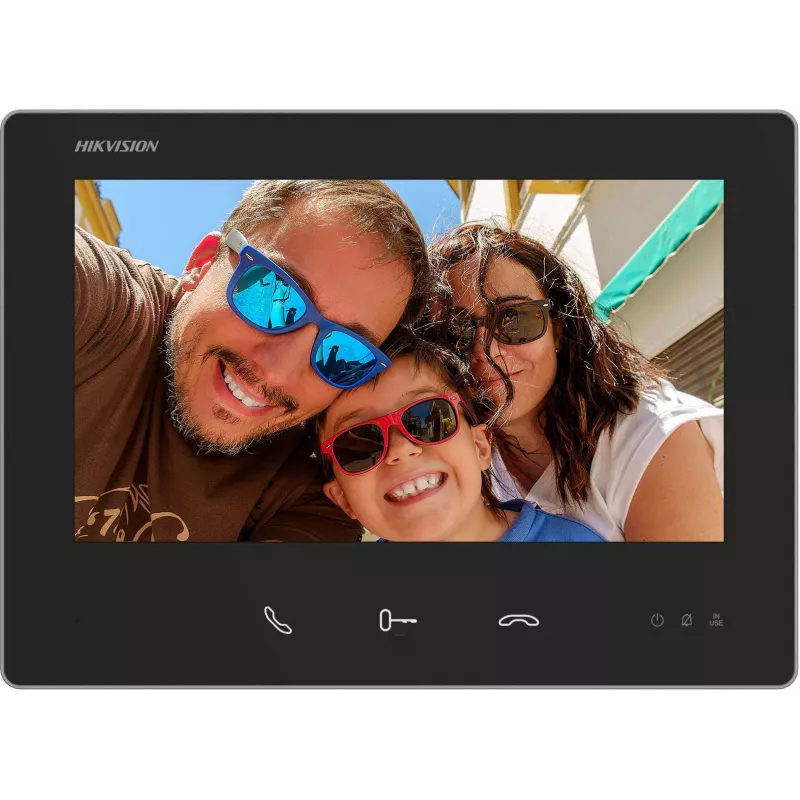

Hikvision DS-KH7300EY-TE2 7 inch IP-video-deurintercommonitor met touchscreen, PoE en afstandsontgrendeling

The Hikvision DS-KH7300EY-TE2 is a 7-inch IP video intercom monitor engineered for clear two-way communication and door control. Its capacitive touchscreen and 1024 x 600 resolution deliver sharp visuals, while built-in omnidirectional microphone and loudspeaker ensure natural audio. With PoE support and remote unlocking via mobile app, it integrates seamlessly into modern security systems.

Advantages

This monitor offers a responsive IPS touchscreen for intuitive operation. It supports H.264 video compression for efficient streaming and G.711 audio codecs for clear voice. Eight alarm inputs and two outputs provide flexible integration with sensors and actuators. An RS-485 interface and SD card slot (up to 128 GB) extend functionality for access control and local recording.

Suitable for

• Residential complexes and single-family homes
• Office buildings and commercial facilities
• Installations requiring remote door release and mobile call forwarding
• Systems with existing PoE network infrastructure

Key specifications

• 7-inch IPS capacitive touchscreen, 1024 x 600 resolution
• Embedded Linux OS, 10/100 Mbps Ethernet, PoE (IEEE 802.3af) or 12 VDC
• Two-way audio with built-in microphone and speaker, G.711 U/A
• H.264 video compression
• 8 alarm inputs, 2 alarm outputs, RS-485 interface
• SD card slot up to 128 GB
• Remote unlocking and call forwarding to mobile app
• Max power consumption: 6 W
• Operating temperature: -10°C to 50°C (14°F to 122°F)
• Surface mount

Recommendations

For reliable video intercom with advanced access features, the DS-KH7300EY-TE2 is a solid choice. Ensure your network provides PoE or use the included 12 VDC option. Pair with compatible Hikvision door stations for a complete solution.
