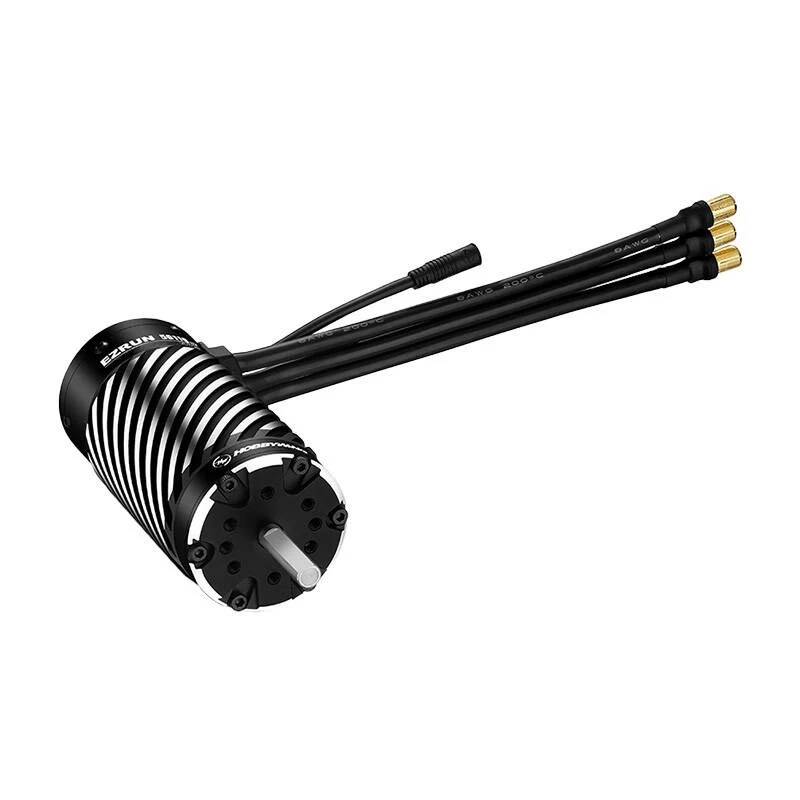

Hobbywing EZRUN 56118SD G2 800KV Sensored borstelloze motor - zwart

The Hobbywing EZRUN 56118SD G2 800KV is a high-performance sensored brushless motor designed for 1/5th scale RC vehicles. With its robust construction and advanced technology, it delivers exceptional power and efficiency for demanding applications such as monster trucks and buggies.

Advantages

This motor features a CNC machined billet aluminum housing for superior heat dissipation and durability. The sintered neodymium magnet rotor ensures high torque and efficiency. With adjustable timing (20-40 degrees), you can fine-tune performance to match your driving style. The IP5X dustproof and splashproof rating provides reliable operation in various conditions.

Suitable for

• 1/5th scale RC monster trucks
• 1/5th scale RC buggies
• Other large-scale RC vehicles requiring high power

Key specifications

• Motor Type: Sensored Brushless
• KV Rating: 800KV
• Pole Count: 4-Pole
• LiPo Cells: 6-12S
• Outer Diameter: 56 mm
• Length: 118 mm
• Shaft Diameter: 8 mm
• Weight: 1010 g
• Max Output Power: 5880 W
• Max Current: 200 A
• No-load Current: 5.5 A
• Resistance: 0.0042 Ohm
• Connectors: 8mm Gold Plated Bullet
• Housing Material: CNC Machined Billet Aluminum
• Color: Black

Recommendations

For optimal performance, pair this motor with a compatible Hobbywing ESC and use high-quality LiPo batteries within the 6-12S range. Ensure proper gearing and cooling for extended runs.
