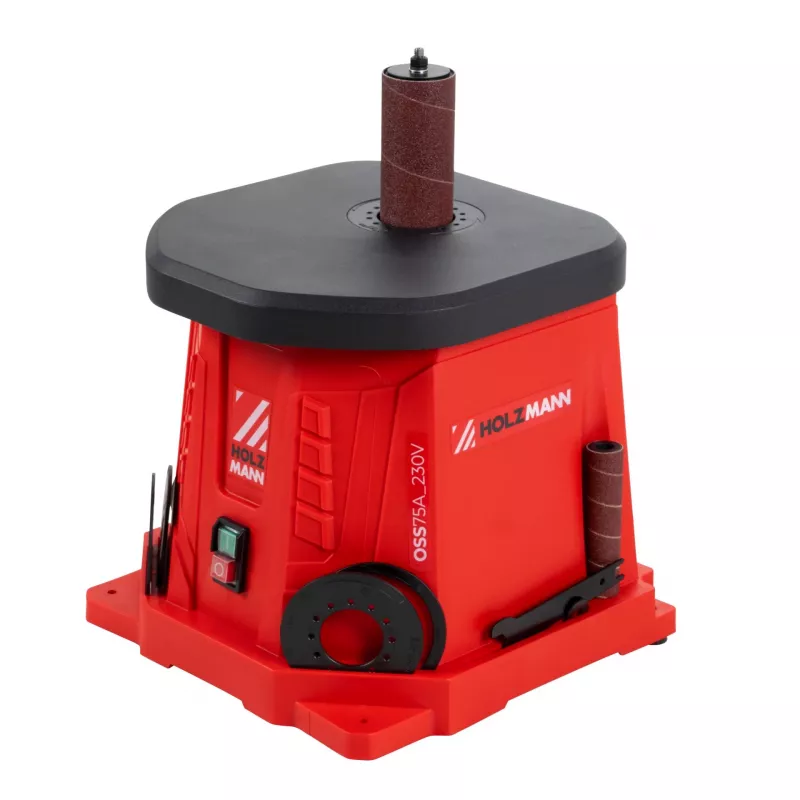

HOLZMANN MASCHINEN OSS75A spindelschuurmachine 230V

The HOLZMANN MASCHINEN OSS75A Spindle Sanding Machine is a robust oscillating spindle sander designed for precision sanding of curved and contoured surfaces. Ideal for woodworking workshops, it combines powerful performance with versatile sanding options.

Advantages

Equipped with a 450 W motor (S1 100%) and 600 W (S6 40%), the OSS75A delivers consistent power for demanding tasks. The oscillating spindle action (58 strokes/min, 16 mm stroke) ensures smooth finishes and reduces clogging. The cast iron table (470 x 410 mm) tilts from 0° to 45°, allowing for bevel sanding. Includes 6 sanding spindles (13, 19, 26, 38, 51, 76 mm) and matching table inserts for quick changeovers.

Suitable for

• Woodworking professionals and hobbyists
• Sanding curved edges, contours, and profiles
• Furniture making, cabinetry, and model building

Key specifications

• Motor Power (S1 100%): 450 W
• Motor Power (S6 40%): 600 W
• Voltage: 230 V / 50 Hz
• Spindle Speed: 2000 rpm
• Oscillation Speed: 58 strokes/min
• Oscillation Stroke: 16 mm
• Table Size: 470 x 410 mm
• Table Tilt: 0° - 45°
• Dust Port Diameter: 50 mm
• Spindle Length: 115 mm
• Number of Sanding Spindles Included: 6
• Sanding Spindle Diameters: 13, 19, 26, 38, 51, 76 mm
• Table Inserts Included: Yes (matching spindle sizes)
• Table Material: Cast Iron

Recommendations

For optimal results, use high-quality sanding sleeves and always connect to a dust extraction system. The OSS75A is a reliable addition to any professional workshop.
