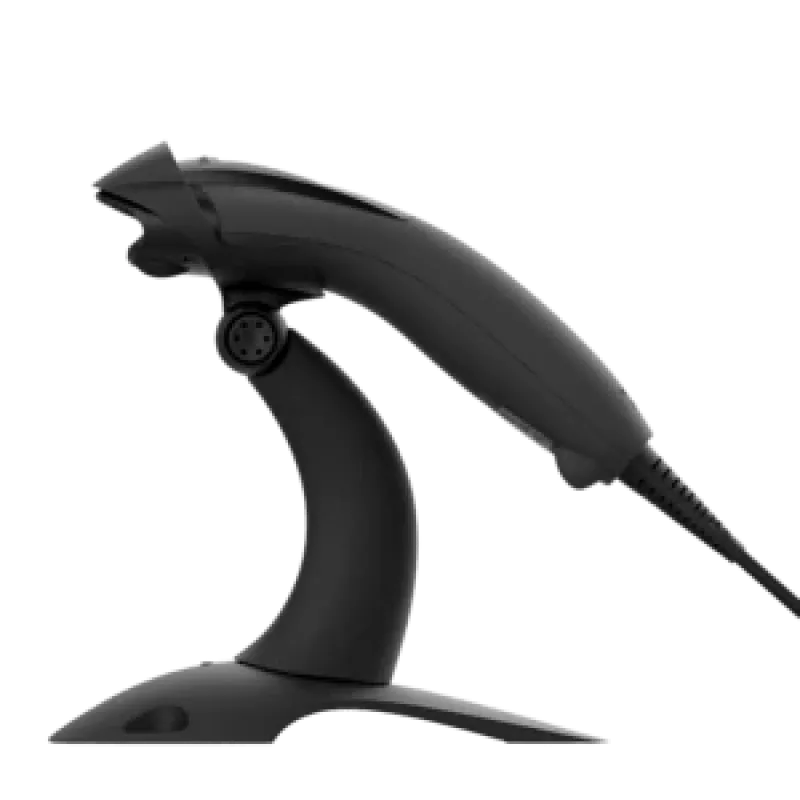

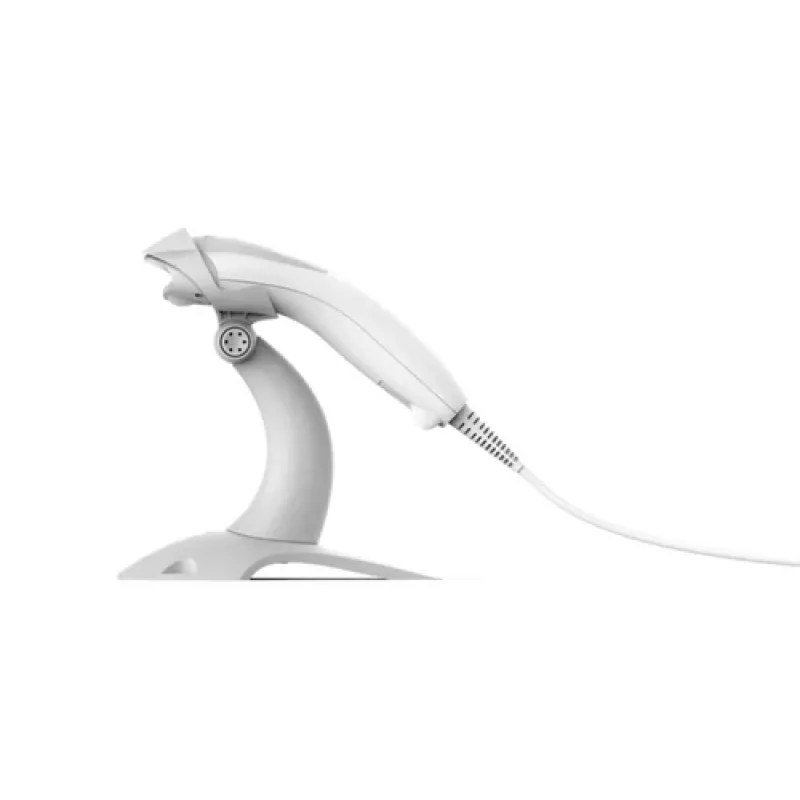

HONEYWELL Voyager XP Curve USB-kit tethered gener - handscanner (1400GSR-1USB-E)

Capture barcodes at speeds up to 70 cm/s with the Honeywell Voyager XP Curve, a corded handheld scanner engineered for high-throughput retail and light industrial environments. Its 1040 x 768 pixel area imager reads both 1D and 2D symbologies with precision, while the IP40-rated housing shrugs off dust and the occasional knock from a 1.8 m drop.

Overview

The Voyager XP Curve (model 1400GSR-1USB-E) combines a rugged, ergonomic design with Honeywell’s proven scanning performance. The curved shape fits naturally in the hand, reducing fatigue during long shifts. A simple USB connection delivers plug-and-play operation with most POS and inventory systems, making it an easy upgrade for any workspace.

What stands out

• High-speed motion tolerance: 70 cm/s for 13 mil UPC codes keeps lines moving.
• Dual 1D/2D decoding: reads traditional barcodes plus QR, Data Matrix, PDF417, and Aztec.
• Built to last: survives 30 drops from 1.8 m to concrete and carries an IP40 rating.
• Flexible lighting: works from total darkness to 100,000 lux (direct sunlight).
• Low power draw: only 2 W, powered entirely through the USB cable.

Technical details

• Scanner type: Handheld area imager (1D & 2D)
• Connectivity: Corded USB (also supports keyboard wedge, RS232, RS485 via cable options)
• Imager resolution: 1040 x 768 pixels
• Print contrast minimum: 20%
• Operating temperature: 0°C to 50°C (32°F to 122°F)
• Operating humidity: 0% to 95% non-condensing
• Drop specification: 30 drops from 1.8 m (6 ft) to concrete
• Environmental sealing: IP40
• Input voltage: 4.0 V DC to 5.5 V DC
• Operating power: 2 W (400 mA @ 5 V DC)
• Colour: Black
• Kit contents: Scanner, USB cable

Our verdict

For businesses that need reliable, fast barcode reading without wireless complexity, the Voyager XP Curve is a no-brainer. Its rugged build and broad symbology support make it a dependable workhorse for retail counters, kiosks, and light warehousing.
