SFP+ Transceiver Huawei OMXD30000 10GBase-SR 850nm MMF 300m LC

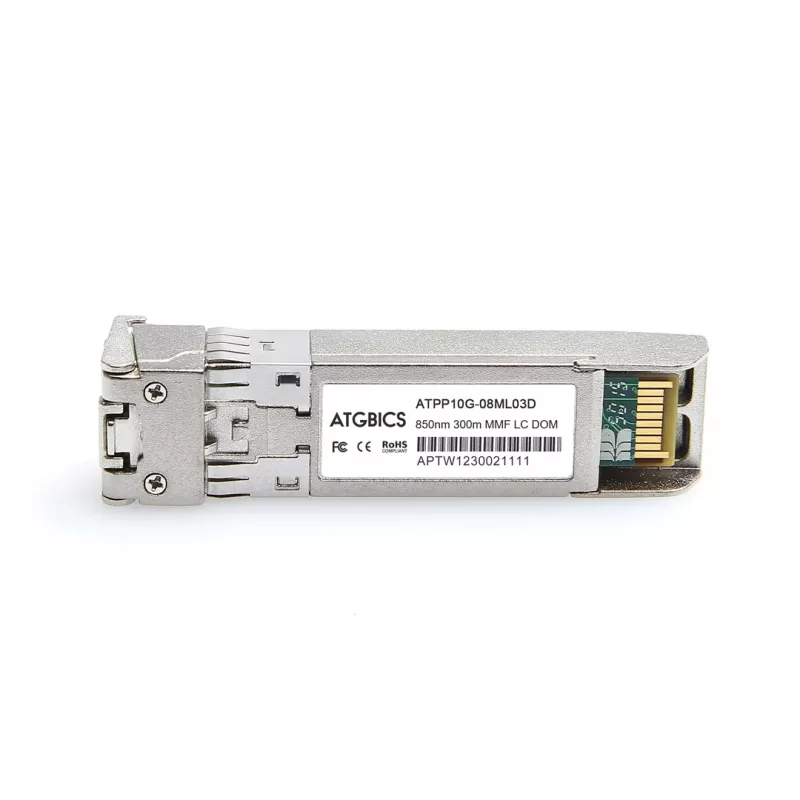

The ATGBICS Huawei compatible OMXD30000 SFP+ transceiver supports 10GBase-SR connections over multimode fiber (MMF) at 850nm, enabling data transmission up to 300 meters via an LC Duplex connector. The module operates within a commercial temperature range, features a metal housing for durability, and includes Digital Optical Monitoring (DOM) for real-time parameter checks. It is designed to meet the Huawei OMXD30000 specification and carries traceable serial numbering, MSA and IEEE compliance, and a limited lifetime warranty.

Advantages

This SFP+ transceiver provides compatibility with Huawei OMXD30000 interfaces, supports 10 Gbit/s data rates, and operates over MMF up to 300 m at 850 nm. The metal housing improves durability while DOM enables monitoring of optical parameters. The product is tested, complies with MSA and IEEE standards, and is supplied with a traceable serial number and a limited lifetime warranty.

Suitable for

• Short-range data links in data centers and enterprise networks
• 10 Gigabit Ethernet connections over multimode fiber
• Upgrading or replacing Huawei-compatible SFP+ modules

Key specifications

• Form factor: SFP+
• Standard: 10GBase-SR
• Wavelength: 850 nm
• Maximum reach: up to 300 m over multimode fiber (MMF)
• Connector: LC Duplex
• Data rate: 10 Gbit/s
• Housing: metal
• Monitoring: Digital Optical Monitoring (DOM)
• Compatibility: Huawei OMXD30000 compliant
• Certifications: CE, RoHS (as provided)

How to use

Insert the SFP+ transceiver into a compatible SFP+ port on the switch, router or server until it clicks into place, then connect LC Duplex multimode fiber cables to the module. Ensure the host device supports 10GBase-SR and Huawei OMXD30000-compatible modules. Use the host management interface or DOM to verify link status and optical parameters after installation.

Recommendations

Use multimode fiber of appropriate grade (for example OM3/OM4) to achieve the specified 300 m reach, verify compatibility with the host device before installation, and handle the transceiver and fiber connectors with care to avoid contamination or damage.
