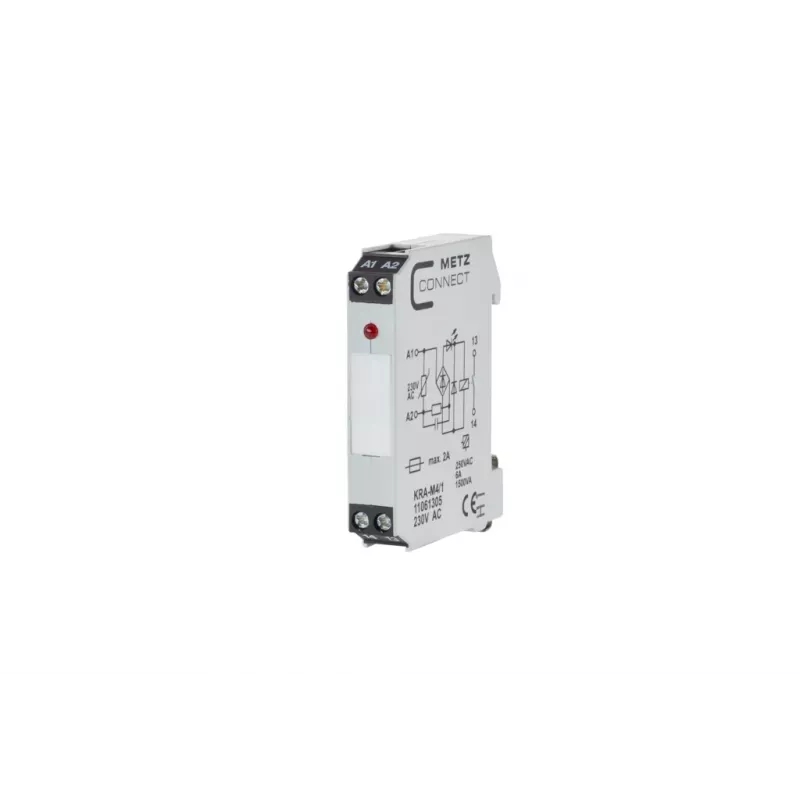

METZ CONNECT KRA-M4/1 relaismodule, 230 V AC spoel, 1 CO contact, wit 11061305

The METZ CONNECT KRA-M4/1 is a compact relay module that stands out for its DIN rail mounting and screw terminal connections, making it a practical choice for control cabinet installations. Unlike many alternatives, it offers a single changeover contact rated for 6 A switching current, suitable for a variety of automation tasks.

Highlights

• 230 V AC coil voltage
• 1 changeover (1 CO) contact
• Max switching voltage 250 V AC
• DIN rail mounting
• Operating temperature range: -20 °C to 55 °C

In daily use

With its white housing and compact dimensions of 11.2 x 60 x 87.5 mm, the KRA-M4/1 fits neatly into distribution boards. The screw terminals ensure secure wiring, and the module weighs only 45 g, simplifying handling during installation.

Full specifications

• Product type: Relay Module
• Coil voltage (AC): 230 V
• Max switching voltage (AC): 250 V
• Max switching current: 6 A
• Number of contacts: 1 changeover
• Connection type: Screw terminals
• Mounting type: DIN rail
• Operating temperature: -20 - 55 °C

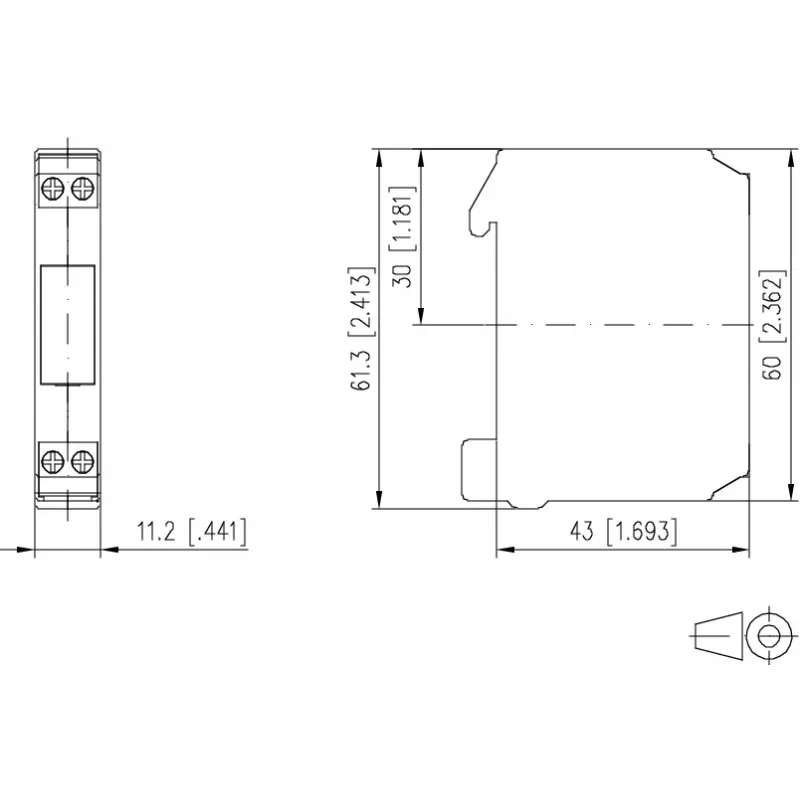

• Dimensions (WxDxH): 11.2 x 60 x 87.5 mm
• Weight: 45 g

Final note

A reliable relay module for switching AC loads up to 250 V, engineered for straightforward DIN rail integration.
