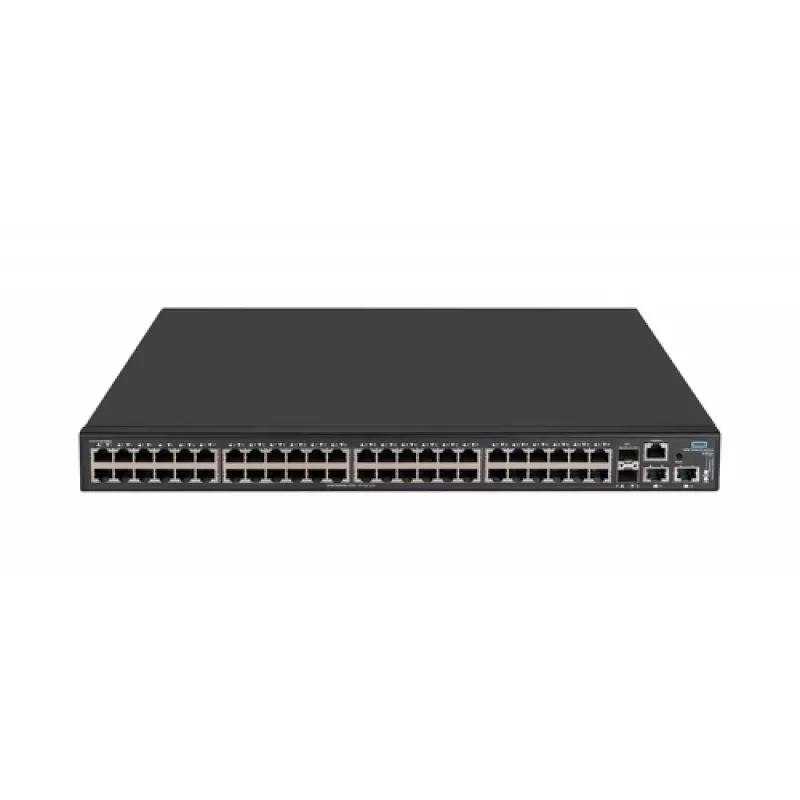

HPE FlexNetwork 5140 48G PoE+ 2SFP+ 2XGT EI Switch - L3 Smart Managed - 48 poorten PoE+ 370W

The HPE FlexNetwork 5140 48G PoE+ 2SFP+ 2XGT EI Switch is a high-performance Layer 3 smart managed switch designed for enterprise networks. It offers 48 Gigabit Ethernet PoE+ ports, 2 SFP+ uplink ports, and 2 10GBASE-T ports, providing robust connectivity and power over Ethernet for devices such as IP phones, wireless access points, and surveillance cameras. With a PoE budget of 370W, it supports IEEE 802.3at PoE+ standard. The switch is rack-mountable in a 1U form factor and delivers a switching capacity of 176 Gbps and a forwarding rate of 130.9 Mpps. It includes advanced features like VLAN support, QoS, link aggregation, and security protocols such as 802.1X, ACLs, and DHCP snooping. Management is flexible via SNMP, RMON, CLI, or web GUI.

Advantages

This switch provides high-density Gigabit Ethernet with PoE+ capability, making it ideal for powering network devices directly from the switch. Its Layer 3 smart management allows for efficient traffic routing and network segmentation. The dual SFP+ and 10GBASE-T uplinks offer flexible high-speed connectivity to the core network. The 370W PoE budget supports multiple high-power devices simultaneously. The switch is designed for reliability with a mean time between failures (MTBF) of over 500,000 hours and includes comprehensive security features to protect the network.

Suitable for

• Enterprise campus networks requiring high-performance switching and PoE
• Deployments with IP phones, wireless access points, and IP cameras
• Network edge or aggregation layer in medium to large businesses
• Environments needing advanced Layer 3 features and smart management

Key specifications

• 48 x 10/100/1000Base-T PoE+ ports (IEEE 802.3at)
• 2 x 1/10 Gigabit SFP+ uplink ports
• 2 x 10 Gigabit Ethernet RJ-45 uplink ports
• PoE power budget: 370 W
• Switching capacity: 176 Gbps
• Forwarding rate: 130.9 Mpps
• MAC address table: 16K entries
• Jumbo frame support: up to 9KB
• VLAN support: IEEE 802.1Q
• Quality of Service (QoS) support
• Link aggregation: LACP
• Security: 802.1X, ACLs, DHCP snooping
• Management: SNMP, RMON, CLI, Web GUI
• Rack-mountable 1U form factor
• Internal AC power supply 100-240V

Recommendations

For optimal performance, use this switch with HPE transceivers and cables. Ensure adequate ventilation in the rack. The switch supports stacking via optional modules (not included). For advanced configurations, refer to the HPE FlexNetwork 5140 EI Switch Series documentation.
