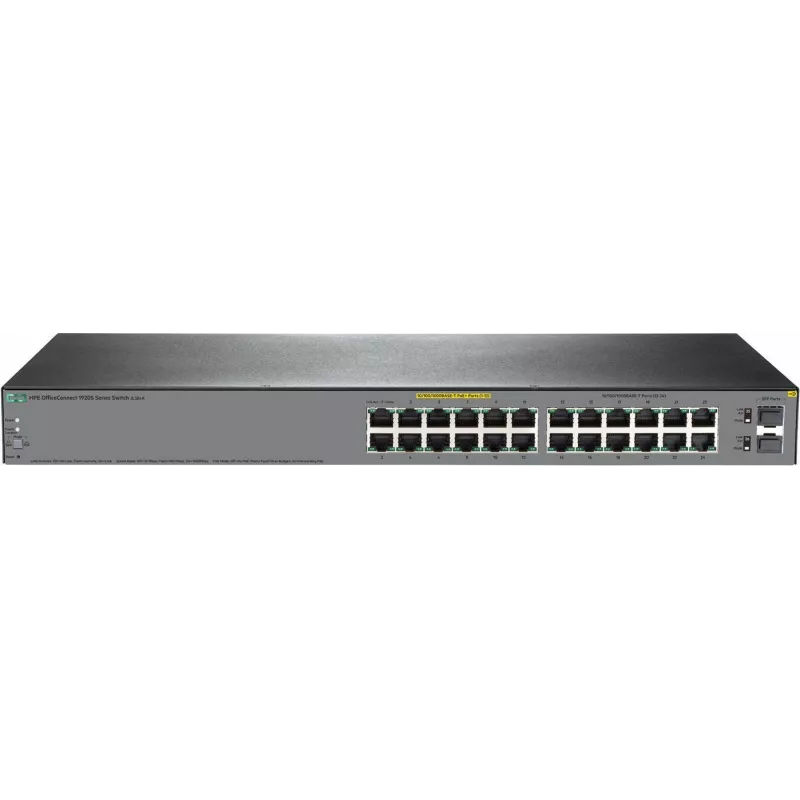

Managed 24-poorts HP Enterprise OfficeConnect 1920S switch JL384A-RFB, layer-2-functies, rackmontage

The Managed 24‑port HP Enterprise OfficeConnect 1920S switch JL384A‑RFB is a rackmountable Layer 2 managed switch designed for small and medium business networks. It provides 24 Ethernet ports with managed features including VLAN support, Quality of Service (QoS) controls and security settings to segment traffic, prioritize critical applications and protect the network. Web-based and CLI management options allow administrators to configure the device in office server rooms or at network edge deployments while maintaining centralized control and monitoring.

Advantages

This HP Enterprise OfficeConnect 1920S switch JL384A‑RFB combines a compact rackmountable chassis with Layer 2 switching capabilities and an array of management features suitable for SMB environments. Built-in VLAN and QoS functions enable traffic segmentation and performance prioritisation without requiring complex controllers. Security controls and administrative access methods (web GUI and CLI) simplify deployment and ongoing management. The 24‑port density supports multiple wired devices and user groups, while the managed feature set helps align the switch to business policies and operational needs.

Suitable for

• Small and medium business office networks requiring managed Layer 2 switching
• Server room or network edge installations where a rackmountable switch is needed
• Environments that require VLAN segmentation and QoS for application prioritization
• Networks that need basic security controls and centralized web/CLI management

Key specifications

• Model: HP Enterprise OfficeConnect 1920S JL384A‑RFB
• Ports: 24 Ethernet ports (24 x 10/100/1000BASE‑T)
• Layer: Layer 2 switching features (VLAN, QoS, basic security)
• Management: Web GUI and Command Line Interface (CLI)
• Form factor: Rackmountable chassis suitable for server racks
• Target segment: Small and medium business networks

How to use

Install the JL384A‑RFB in a standard 19‑inch rack using the included mounting brackets and secure it per rack instructions. Connect the switch to your network using the 24 Ethernet ports for workstations, servers and edge devices. Access the management interface via the web GUI over the management IP or via CLI over console/SSH to configure VLANs, QoS policies and security parameters. Use VLANs to separate traffic by department or service, and configure QoS to prioritise voice and critical application traffic. Save configuration changes to the device to ensure settings persist across reboots.

Recommendations

For stable operation, place the switch in a controlled environment with adequate ventilation and stable power. Plan VLAN and QoS settings before deployment to minimise reconfiguration. Regularly update firmware through HP Enterprise support channels and back up configuration files after major changes. Use strong administrative credentials and limit management access to trusted hosts or management VLANs to reduce security risks.
