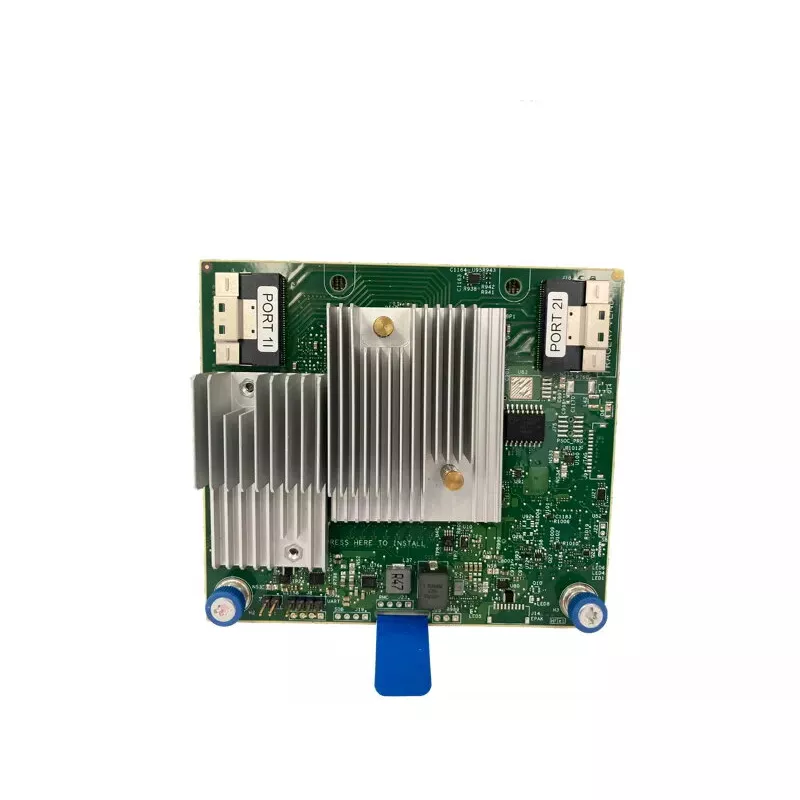

HPE P26325-B21 RAID-controller PCI Express x16 SAS SATA

HPE P26325-B21 is a RAID controller with a PCI Express x16 host interface that supports both SAS and SATA drives. It provides hardware RAID functionality with support for RAID levels 0, 1 and 10, allowing a balance of performance and data redundancy for enterprise storage systems.

Advantages

The controller supports PCI Express x16 connectivity and multiple drive types (SAS and SATA), enabling flexible integration into server platforms. Built-in RAID 0, 1 and 10 modes deliver configuration options for increased throughput or mirrored redundancy. Its form factor and interface are compatible with HPE Gen10 Plus environments and similar enterprise servers.

Suitable for

• Enterprise servers requiring hardware RAID for mixed SAS/SATA storage
• Systems where RAID 0/1/10 configurations are sufficient for performance or redundancy needs
• Data centers and business-critical applications needing reliable storage connectivity

Key specifications

• Model: HPE P26325-B21
• Host interface: PCI Express x16
• Supported drive types: SAS, SATA
• RAID levels: 0, 1, 10
• Brand: HP Enterprise
• MPN: P26325-B21
• EAN: 4549821402724

How to use

Install the controller into an available PCIe x16 slot in a compatible server chassis and secure it according to the server manufacturer's instructions. Connect SAS or SATA drives to the appropriate backplane or cables. Configure RAID arrays using the server's RAID configuration utility or HPE management tools, selecting the desired RAID level (0, 1 or 10) and initializing the array. Install or update drivers and firmware as recommended by HPE for full compatibility.

Recommendations

Use this controller in systems that match its PCIe x16 interface and in environments where RAID 0/1/10 meets performance and redundancy requirements. Keep firmware and drivers up to date and follow HPE guidelines for drive compatibility and array configuration to ensure stable operation.
