HT Instruments 4413-2 veiligheidsmeetsnoeren, 2 m, CAT IV 1000V, 10 A, rood/zwart 1003090

Rated for CAT IV 1000V and 10 A, these HT Instruments 4413-2 safety test leads deliver reliable measurements in demanding electrical environments.

Overview

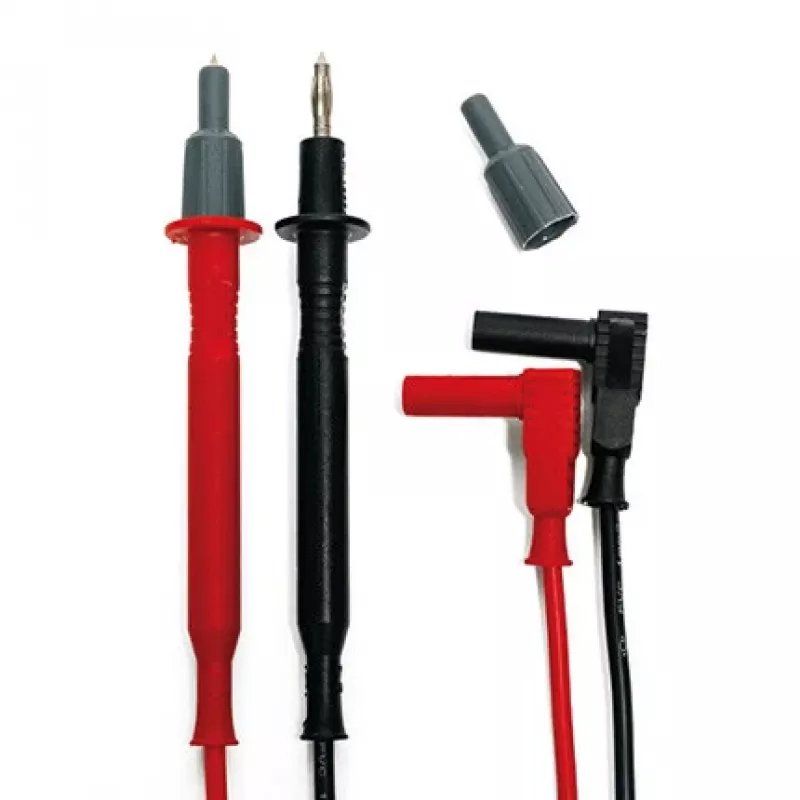

The HT Instruments 4413-2 is a set of two safety test leads (red and black), each 2 meters long, terminated with 4mm safety banana plugs. The leads are double insulated with PVC and feature nickel-plated brass connectors for durability and low contact resistance. They comply with IEC/EN 61010-031 and are suitable for use with test equipment having 4mm banana jacks.

What stands out

• CAT IV 1000V safety rating for high-energy circuits
• Double insulated for operator protection
• Nickel-plated brass connectors resist corrosion
• Operating temperature range from -10°C to +50°C

Technical details

• Cable length: 2 m
• Connector type: 4mm safety banana plug
• Number of leads: 2 (red, black)
• Voltage rating: CAT IV 1000V / CAT III 1000V
• Current rating: 10 A
• Insulation: Double insulated
• Safety standard: IEC/EN 61010-031
• Cable material: PVC
• Connector material: Nickel-plated brass
• Operating temperature: -10°C to +50°C

Our verdict

A robust and compliant set of test leads for professional electrical testing up to 1000V CAT IV.
