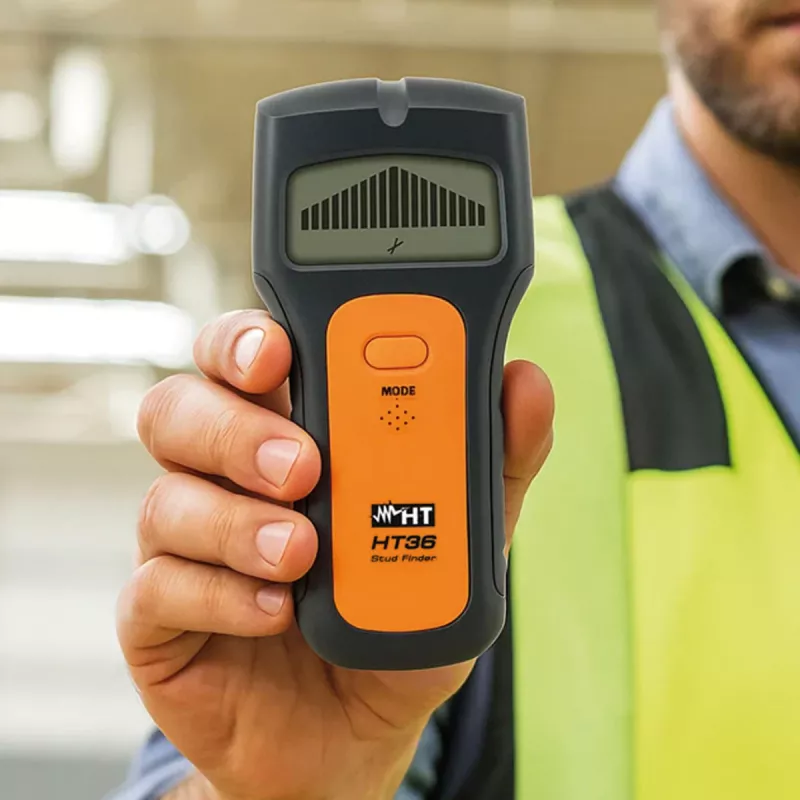

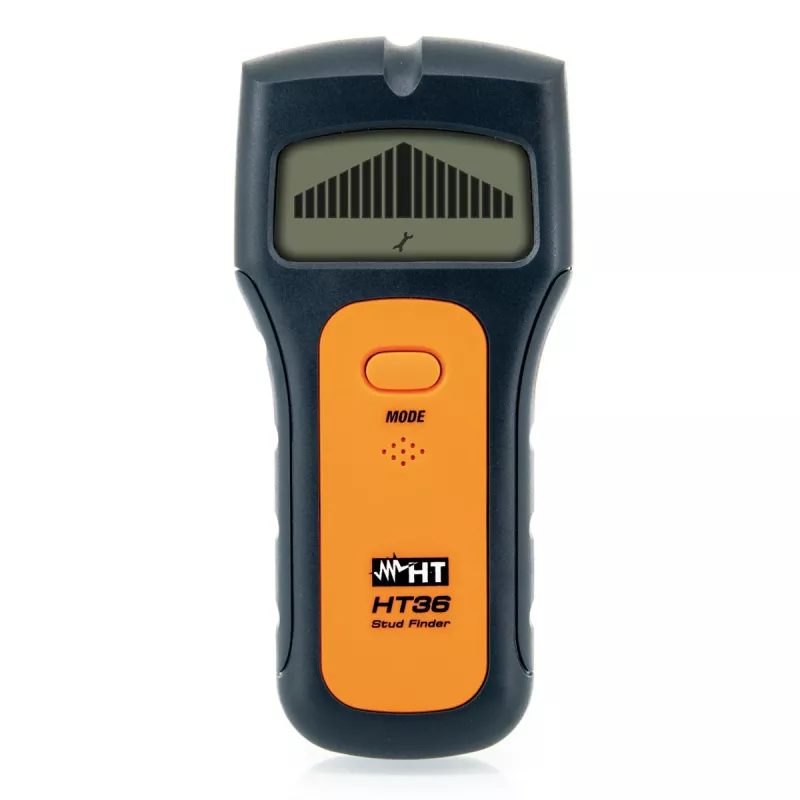

HT INSTRUMENTS HT36 digitale muurscanner voor metalen 1010890

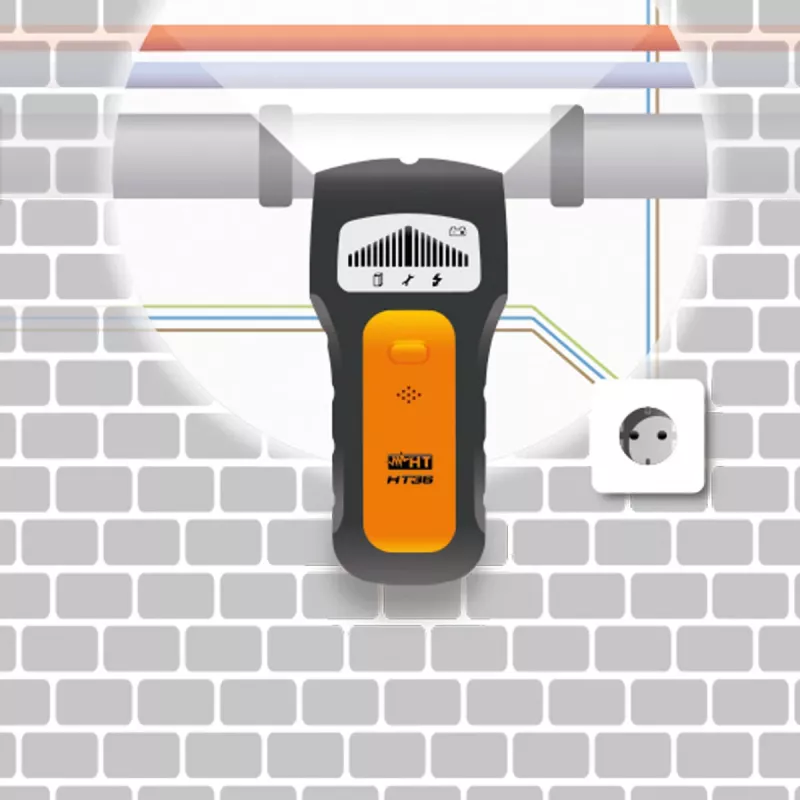

Locating hidden metal objects, live AC wires, and wooden studs behind walls can be a challenge during renovation or installation work. The HT INSTRUMENTS HT36 Digital Wall Scanner for Metals solves this problem by detecting multiple materials quickly and accurately.

Who is it for

This scanner is ideal for electricians, plumbers, carpenters, and DIY enthusiasts who need to avoid drilling into pipes, cables, or studs. It is suitable for both professional and home use.

Main features

• Detects ferrous metals up to 100 mm deep
• Detects non-ferrous metals up to 80 mm deep
• Detects live AC wires up to 50 mm deep
• Detects wooden studs up to 20 mm deep
• LCD display with backlight for clear readings
• Audible signal alerts when a target is found
• Automatic calibration for ease of use
• Automatic shutdown after 5 minutes of inactivity

Specifications

• Detection type: Multi-material (ferrous metals, non-ferrous metals, live AC wires, wood/studs)
• Detection depth: Ferrous metals up to 100 mm, non-ferrous metals up to 80 mm, live AC wires up to 50 mm, wood/studs up to 20 mm
• Display: LCD with backlight
• Power source: 1x 9V block battery (6LR61)
• Automatic shutdown: Yes, after approx. 5 minutes
• Calibration: Automatic
• Operating temperature: -10°C to +50°C
• Storage temperature: -20°C to +70°C
• Operating humidity: 0 to 85% RH (non-condensing)
• Indication: Visual (LCD) and audible signal
• Housing material: Durable plastic

Tips

For best results, move the scanner slowly across the surface and keep it flat against the wall. Calibrate the device on a clear section of the wall before scanning.
