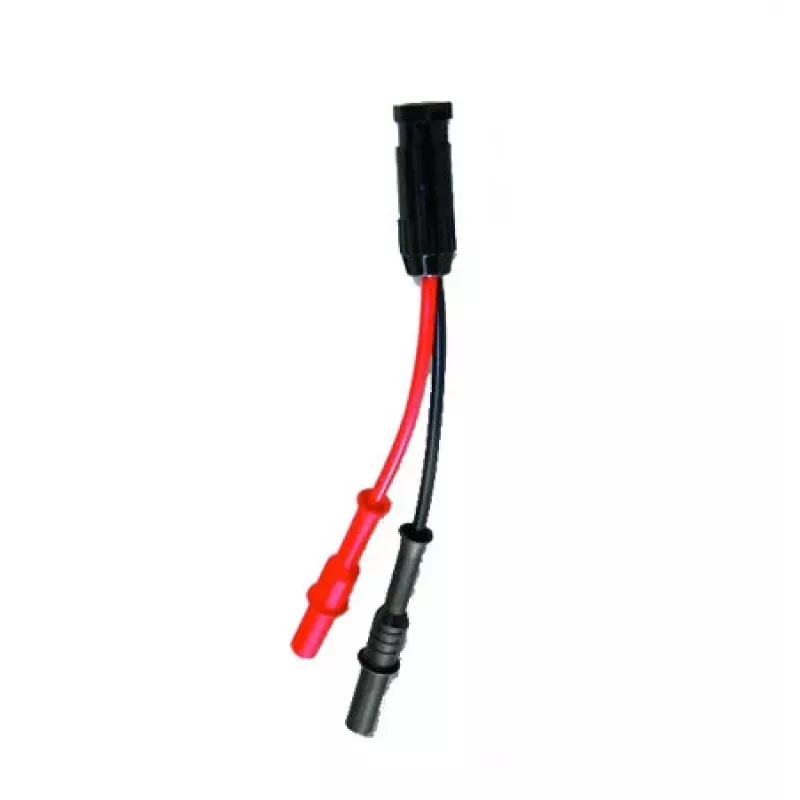

HT Instruments NOCANBA stroomtang-adapter voor M-serie multifunctionele testers 1004100

Connecting an external current clamp to an HT Instruments M-Series multifunction tester can be a challenge without the right interface. The NOCANBA adapter solves this by providing a direct link between your HT96U current clamp and the M-Series input port, enabling accurate AC/DC current measurements without compatibility issues.

Who is it for

This adapter is for electricians, maintenance technicians, and field engineers who already own an HT Instruments M-Series tester (M70–M77) and need to use an HT96U or similar current clamp with 4mm banana plug outputs. It eliminates the need for a separate meter or workaround wiring.

Main features

• Connects HT96U current clamp to M-Series testers
• Four 4mm banana jack inputs for clamp leads
• Proprietary multi-pin output for secure M-Series connection
• Supports AC/DC current measurement depending on clamp
• Robust ABS plastic housing in black

Specifications

• Product type: Current clamp connection adapter
• Brand compatibility: HT Instruments
• Device compatibility: M-Series multifunction testers (M70–M77)
• Input connectors: 4 x 4mm banana jack
• Output connector: 1 x multi-pin proprietary
• Measurement parameter: AC/DC current
• Safety rating: CAT III 600V / CAT II 1000V
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Operating humidity: <80% RH non-condensing
• Housing material: ABS plastic
• Colour: Black

Tips

Always verify that your current clamp output matches the 4mm banana jack inputs before connecting. For safety, ensure the tester is powered off when attaching or removing the adapter.
