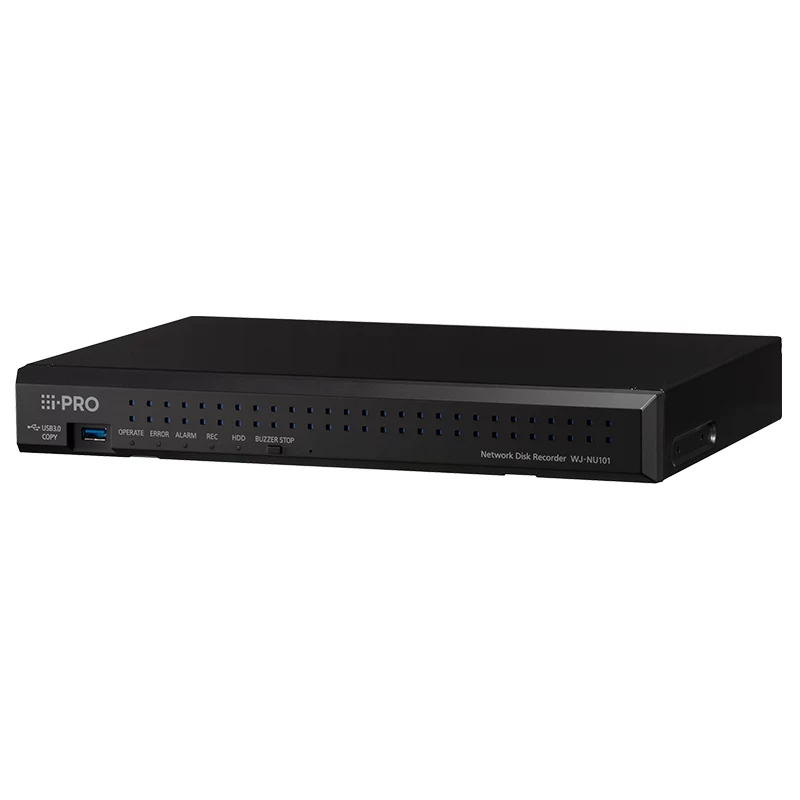

i-PRO netwerkrecorder WJ-NU101KG 4-kanaals zonder HDD

The i-PRO WJ-NU101KG is a professional 4-channel network video recorder designed for small to medium-sized surveillance systems. It supports up to 4K recording resolution and features H.265/H.264 compression for efficient storage. This unit comes without HDD, allowing you to install a single SATA drive up to 16 TB. Ideal for use with i-PRO cameras, it offers AI analytics support and reliable embedded Linux operation.

Advantages

High-resolution recording up to 4K, advanced compression, AI analytics support, and a compact design make this NVR a powerful yet cost-effective solution for modern security needs.

Suitable for

• Small businesses and retail stores
• Office surveillance
• Residential security systems
• Remote monitoring applications

Key specifications

• 4-channel network video recorder
• Max recording resolution: 4K (3840x2160) for 1 channel, 5MP for 2 channels, 1080p for 4 channels
• Video compression: H.265, H.264, JPEG
• 1x SATA HDD bay (HDD not included, max 16 TB per bay)
• 1x Gigabit Ethernet (RJ-45)
• Video outputs: 1x HDMI, 1x VGA
• USB ports: 2x USB 2.0 (front), 1x USB 3.0 (rear)
• Audio: 1x RCA input, 1x RCA output
• Recording bandwidth: 40 Mbps
• Playback bandwidth: 40 Mbps
• Simultaneous playback: 4 channels
• Operating system: Embedded Linux
• Power supply: DC 12V, approx. 10W consumption (without HDD)
• Operating temperature: 0°C to +50°C
• AI analytics support (with compatible i-PRO cameras)

Recommendations

For optimal performance, pair this NVR with i-PRO AI cameras and a high-capacity surveillance-grade HDD. Ensure proper ventilation and use a reliable 12V power source.
