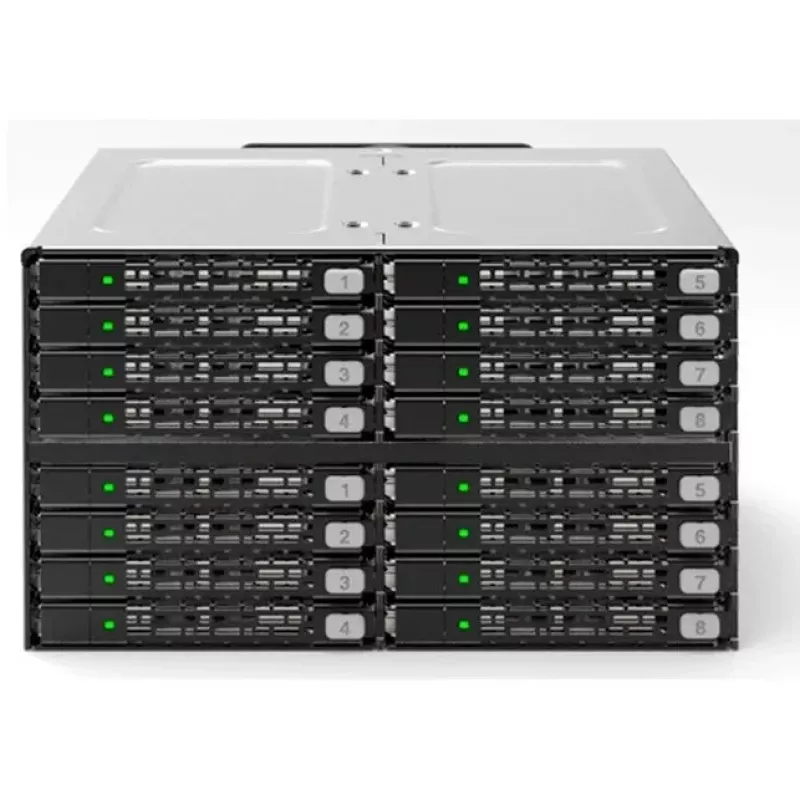

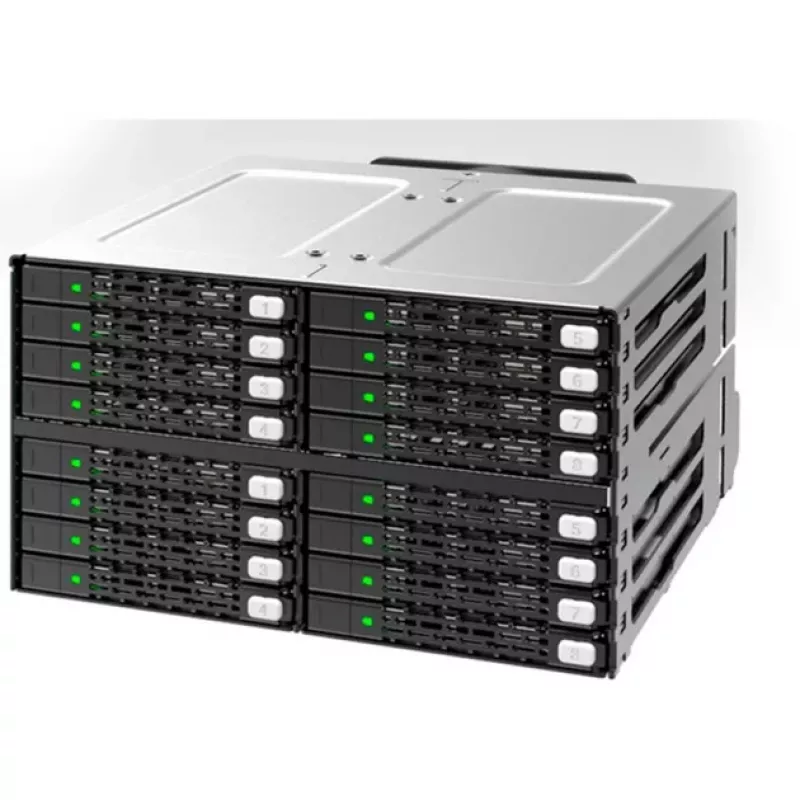

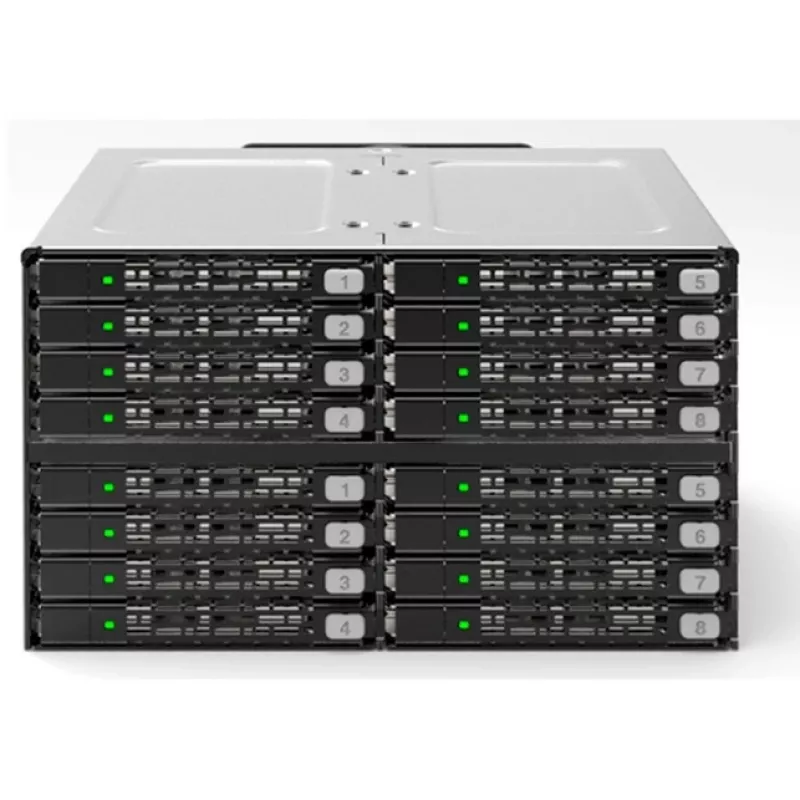

ICY DOCK ToughArmor MB516SP-B 16-Bay 2,5 inch SAS/SATA SSD/HDD backplane module voor 2x 5,25 inch bays

The ICY DOCK ToughArmor MB516SP-B is a high-density storage backplane module designed to fit into two standard 5.25" optical drive bays, accommodating up to sixteen 2.5" SAS or SATA SSDs/HDDs. Built with a full metal construction (aluminum and steel), it offers robust durability and efficient heat dissipation. The backplane features four Mini-SAS HD (SFF-8643) host interfaces supporting data transfer rates up to 12Gbps for SAS 3.0 and 6Gbps for SATA III. Each drive bay includes tool-less EZ-Slide mini trays for quick installation, and the module supports drive heights from 7mm to 15mm. Cooling is provided by two 40mm fans with three selectable modes (High, Low, Off), and per-bay LED indicators show power, activity, and drive failure status. A key lock system adds physical security. The backplane is hot-swap capable and RAID support depends on the host controller.

Advantages

Maximizes storage density by fitting 16 drives into just two 5.25" bays, saving valuable space in servers or workstations. Full metal construction ensures durability and effective thermal management. Tool-less trays and hot-swap support simplify drive maintenance and upgrades. The key lock provides security against unauthorized drive removal.

Suitable for

• Data centers requiring high-density storage in limited space
• Video surveillance systems with multiple SSDs/HDDs
• Media production environments needing fast, reliable storage
• Enterprise servers and NAS systems

Key specifications

• Drive Bays: 16 x 2.5" SAS/SATA SSD/HDD
• Host Interface: 4 x Mini-SAS HD (SFF-8643)
• Data Transfer Rate: Up to 12Gbps (SAS 3.0) / 6Gbps (SATA III)
• Power Input: 2 x SATA 15-pin power connectors
• Cooling: 2 x 40mm fans with 3-mode control
• Construction: Full metal (aluminum & steel)
• Drive Height Support: 7mm, 9.5mm, 12.5mm, 15mm
• Hot-Swap: Yes
• Security: Key lock system
• LED Indicators: Power, activity, failure per bay

Recommendations

For optimal performance, use with a compatible SAS/SATA host controller that supports the desired RAID level. Ensure adequate power supply capacity to handle up to 16 drives. The backplane is ideal for building high-capacity storage arrays in 2U or larger chassis.
