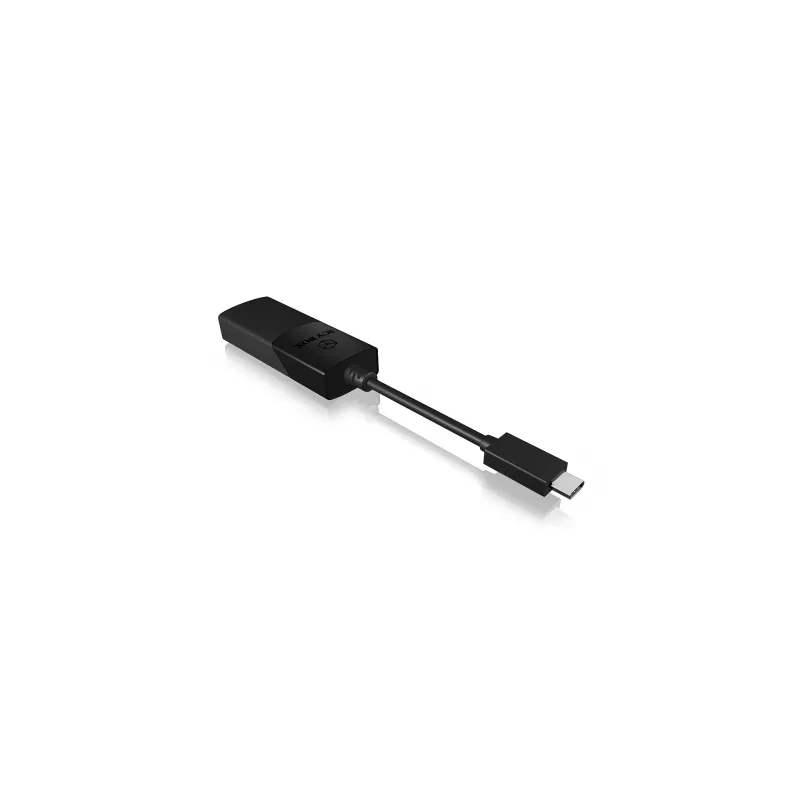

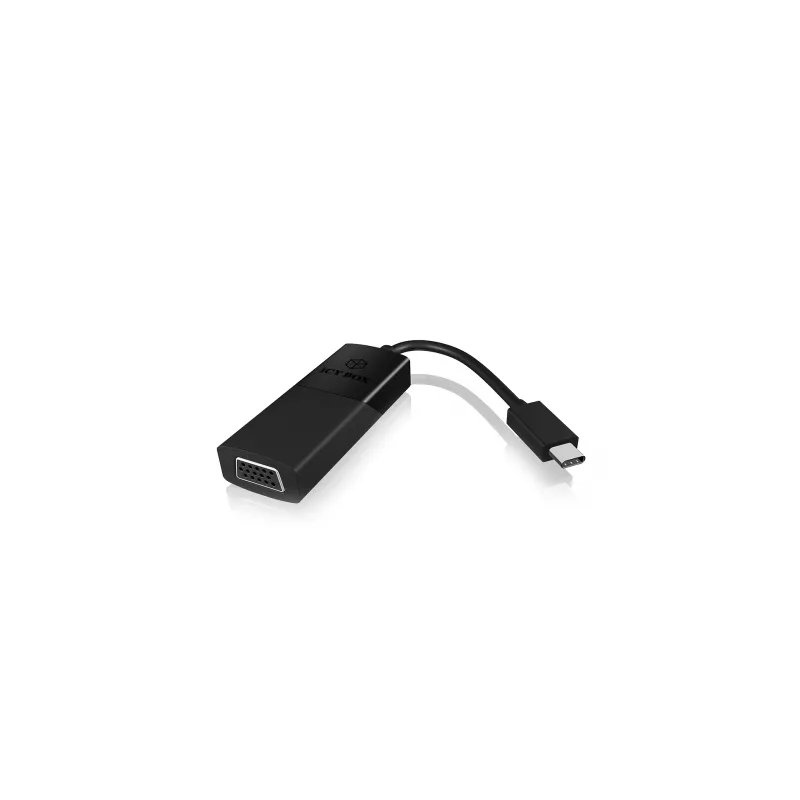

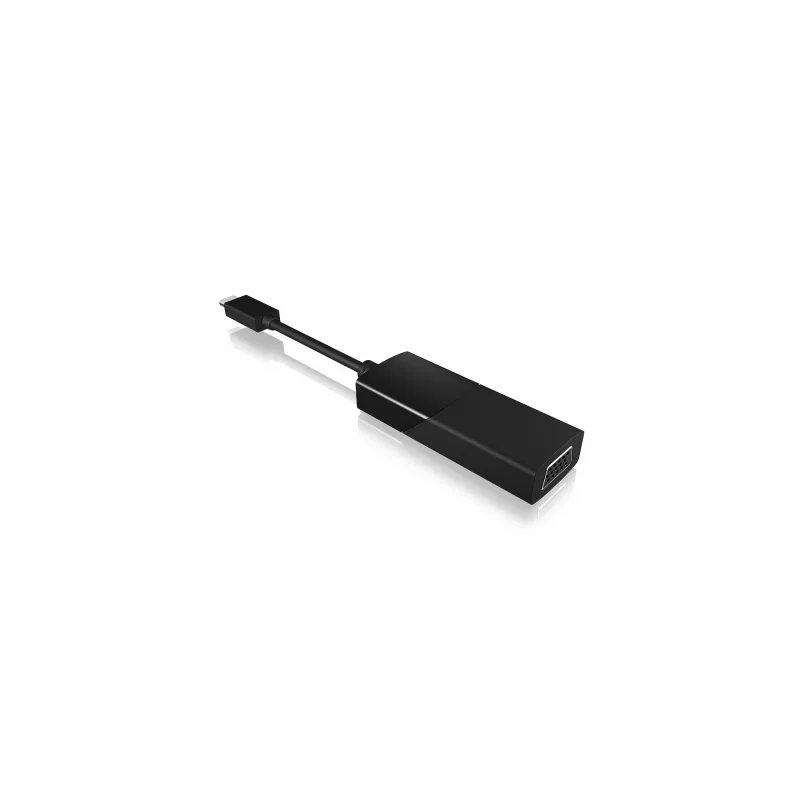

ICY BOX 60021 USB-grafische adapter 2048 x 1152 pixels zwart

The ICY BOX 60021 USB graphics adapter connects a USB Type-C Alternate Mode enabled device to a VGA port, allowing a notebook or PC to be connected to a monitor or projector for presentations or extended display. The compact adapter is made of durable ABS, measures 26 mm x 15 mm x 70 mm and supports a maximum resolution of 2048 x 1152 at 60 Hz when the host device provides DisplayPort Alternate Mode over USB-C.

Advantages

This adapter converts a USB Type-C video signal to VGA, enabling compatibility between modern USB-C hosts and legacy VGA displays. It supports video resolutions up to 2048x1152@60Hz and has a small form factor and lightweight design for easy transport and use in meetings, classrooms or at home.

Suitable for

• Connecting USB-C laptops or tablets to VGA monitors
• Presentations using projectors with VGA input
• Extending or mirroring a desktop to an additional VGA screen
• Temporary setups where legacy VGA displays are still in use

Key specifications

• Model: ICY BOX 60021 (IB-AC533-C)
• Maximum resolution: 2048 x 1152 @ 60 Hz
• Connector: USB Type-C (requires Alternate Mode with DisplayPort support) to VGA
• Material: ABS
• Dimensions: 26 mm (W) x 15 mm (D) x 70 mm (H)
• Weight: 0.028 kg
• Colour: Black
• Origin: Taiwan

How to use

Plug the USB-C end of the adapter into a host device that supports USB Type-C Alternate Mode (DisplayPort over USB-C). Connect a VGA cable from the adapter to the VGA input of the monitor or projector. Configure the display settings on your notebook or PC to mirror or extend the desktop as needed. Ensure the host device supports the required Alternate Mode and set the external display resolution to a maximum of 2048 x 1152@60Hz if supported.

Recommendations

Use a high-quality VGA cable for best video performance and verify that the source device supports DisplayPort Alternate Mode over USB-C. If no video appears, check the host device display output settings and try reconnecting the adapter.
