INFRALAN U-DQ(ZN)BH OS2 48E (4x12) Eca 5000N LSZH zwart 11,2mm G657A1 glasvezelkabel 54448.1D-E5

Universal fibre optic cable with 48 OS2 single-mode fibres in a robust 4x12 loose tube arrangement, engineered for high tensile strength of 5000 N and bend-insensitive G.657.A1 performance. The black LSZH sheath ensures low smoke and halogen-free safety in fire conditions, meeting Eca CPR classification for indoor and outdoor installations.

Advantages

Bend-insensitive G.657.A1 fibres reduce signal loss in tight bends, while the non-metallic strength member and water-blocking design provide reliable long-term performance. The low smoke zero halogen sheath enhances safety in populated areas, and the 5000 N tensile strength allows for demanding installation pulls.

Suitable for

• Indoor and outdoor backbone cabling
• High-density fibre distribution in data centres
• Installations requiring CPR Eca fire performance
• Environments where low smoke and halogen-free materials are mandatory

Key specifications

• Fibre type: OS2 single-mode (ITU-T G.657.A1)
• Fibre count: 48 (4 x 12 fibres)

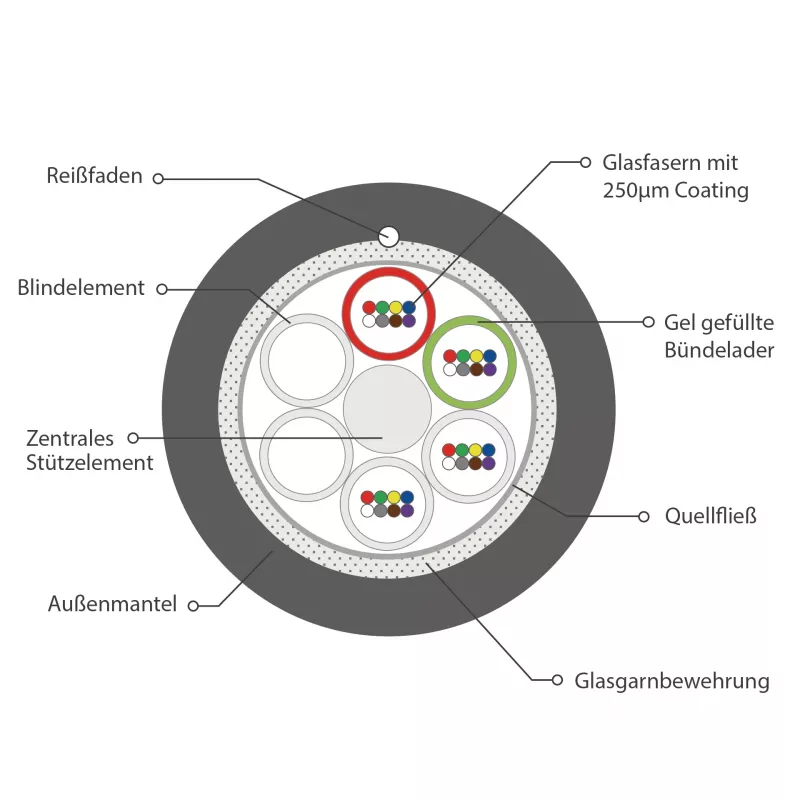

• Cable construction: U-DQ(ZN)BH loose tube
• Sheath material: LSZH (Low Smoke Zero Halogen)
• Fire performance: Eca (CPR compliant)
• Outer diameter: 11.2 mm
• Max. tensile strength: 5000 N
• Cable colour: Black
• Water blocking: Yes
• Strength member: Non-metallic
• Halogen free: Yes
• Low smoke: Yes
• Flame retardant: Yes

Recommendations

For best results, install with proper bend radius control and use fusion splicing or pre-terminated connectors compatible with G.657.A1 fibres. Ensure compliance with local fire safety regulations regarding Eca-rated cables.
