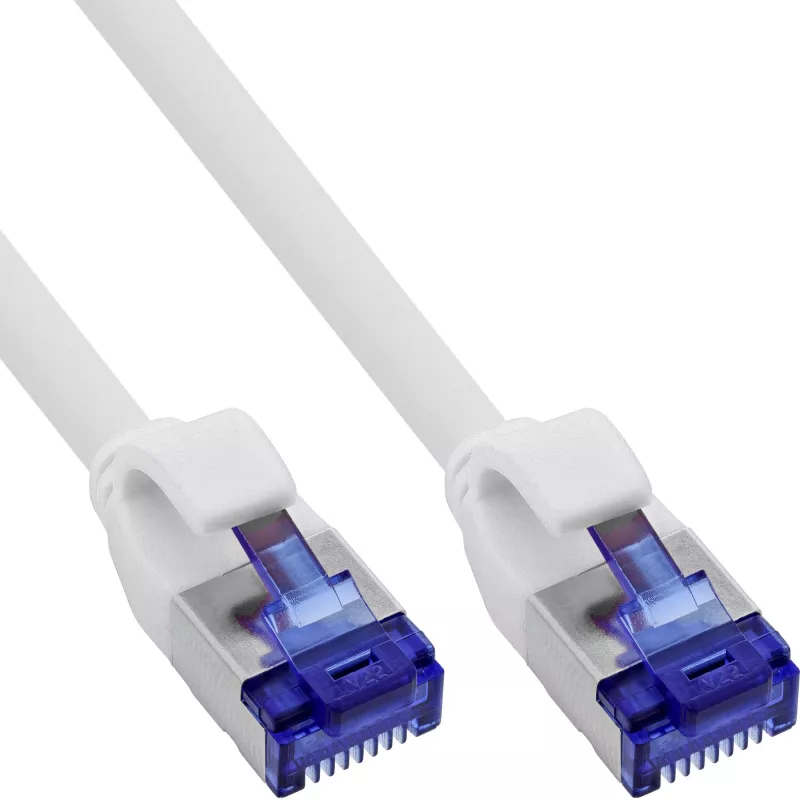

InLine 74901W Slim patchkabel, Cat.6A, S/FTP, TPE (LSZH), flexibel, PoE, wit, 1 m

The InLine 74901W is a slim Cat.6A S/FTP patch cable with a flexible TPE (LSZH) sheath, designed for space-saving network installations. It supports data transfer rates up to 10 Gbit/s and PoE up to 87 watts (4PPoE), making it suitable for powering devices such as IP cameras, access points, and VoIP telephones.

Key features

• Slim design with AWG28 conductors for high port density
• Full Cat.6A transmission quality up to 10 Gbit/s
• PoE support up to 87 watts (4PPoE)
• S/FTP shielding (pair and overall shielding) for protection against electromagnetic interference
• TPE (LSZH) sheath: halogen-free, flame-retardant, and flexible
• Gold-plated contacts
• 1:1 assignment according to T568B

Specifications

• Brand: InLine
• MPN: 74901W
• Product colour: White
• Category: Cat.6A
• Cable construction: S/FTP (PiMf)
• Conductor material: Pure copper
• Wire gauge: AWG28
• Sheath material: TPE (LSZH – Low Smoke Zero Halogen)
• Outer diameter: 4.1 mm
• Operating temperature: -20 to +75 °C
• Storage temperature: -20 to +75 °C
• Connector type: RJ45 plug straight on both ends
• Length: 1 m
• Data transfer rate: 10 Gbit/s
• Max. supported PoE standard: 802.3bt
• Max. supported power: 90 W
• PoE support: Yes, up to 87 watts (4PPoE)
• Wire pairs used for power transmission: All
