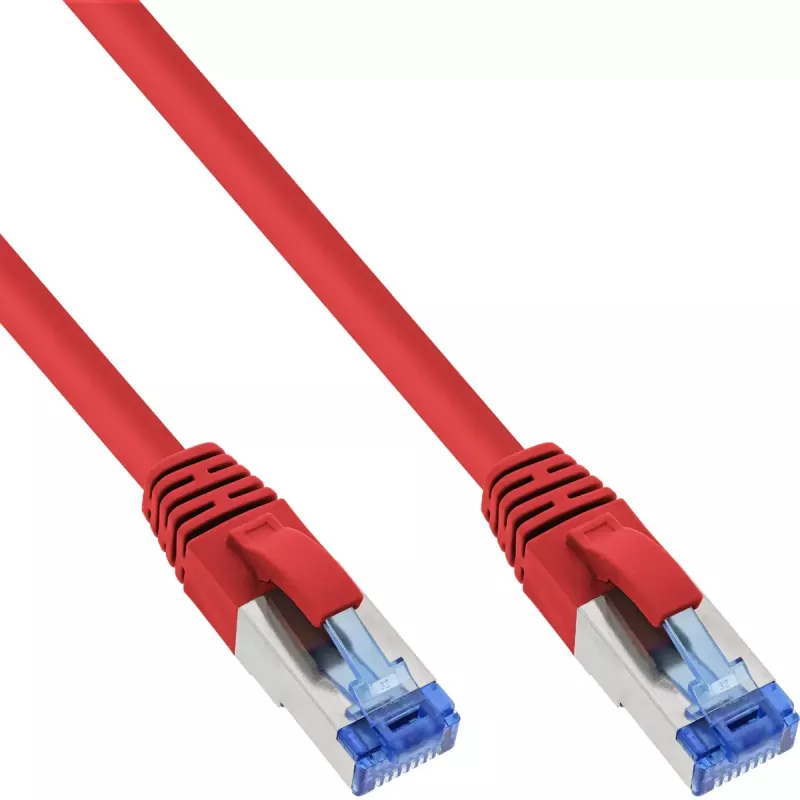

InLine B-76802R Cat6A S/FTP (PiMF) halogeenvrije patchkabel, 2 m, rood, 40-pack

The InLine B-76802R is a Cat6A S/FTP (PiMF) halogen-free patch cable supplied in a 40-pack. It features a halogen-free LSZH jacket and RJ45 connectors with 50µ" gold-plated contacts.

Key features

• Cat6A S/FTP (PiMF) construction
• Halogen-free LSZH jacket
• RJ45 connectors with 50µ" gold-plated contacts
• Blue-coloured connector for differentiation
• Suitable for Gigabit and 10 Gigabit applications
• Up to 500 MHz
• Includes enclosed test report
• PoE/PoE+/PoE++: Yes
• Max. supported PoE standard: 802.3bt
• Max. supported power: 90W
• Max. supported data transfer rate: 10Gb/s
• Assignment according to TIA/EIA 568B2.1
• Bulk EcoPack packaging

Specifications

• Brand: InLine
• MPN: B-76802R
• Product colour: Red
• Length: 2 m
• Cable construction: S/FTP (PiMF) 4x2xAWG26/7, solid copper wire
• Overall braided shield with pair-wise foil shielding
• Jacket: Halogen-free (LSZH), compliant with IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034
• Connector type: RJ45 plug straight (Side A and Side B)
• Outer diameter: 6.2 mm
• Conductor material: CU (copper)
• Wire pairs used for power transmission: The specific method used is determined by the PSE (Power Sourcing Equipment)
• Operation temperature: -10 to +60°C
• Storage temperature: -20 to +70°C
• Signal: Network
• Diameter: AWG 26
• Design: Round cable
• Assignment: 1:1
• UL: No
• Country of origin: Taiwan
