InLine Basic wandbeugel, voor flatscreen-tv 58-107cm (23-42 inch)

The InLine Basic wall mount fits flat screen TVs from 58.4 cm (23") to 107 cm (42") and supports a maximum load of 25 kg. It is compatible with VESA patterns from 75 x 75 mm up to 200 x 200 mm. The bracket offers adjustable viewing by providing a tilt range of -7.5° to 7.5° and a swivel range of -90° to 90°, while the extension from the wall can be set between 7 cm and 40 cm. Finished in black, the mount is designed for straightforward installation and everyday use in homes, offices, or public spaces.

Advantages

The InLine Basic mount provides a compact, reliable solution for wall-mounting a single flat screen. Its wide swivel range enables flexible positioning to reduce glare and improve sightlines, while the adjustable tilt helps to fine-tune vertical viewing angle. The variable extension offers both a low-profile installation and the option to pull the display further from the wall when access or angling is needed. Compatibility with common VESA patterns and a 25 kg load capacity covers the majority of small to medium screens in the 23"–42" range.

Suitable for

• Living rooms and bedrooms with 23"–42" flat TVs
• Conference rooms and offices for small presentation displays
• Kitchen or utility areas where space-saving mounting is required
• Retail or public spaces displaying menus, schedules, or information

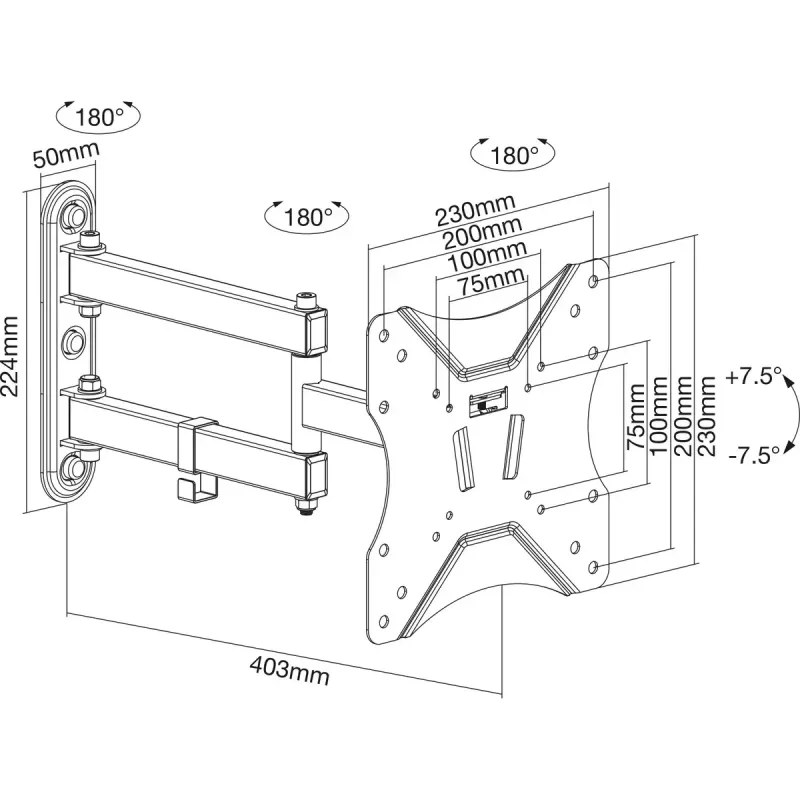

Key specifications

• Screen size compatibility: 58.4 cm (23") to 107 cm (42")
• VESA compatibility: 75 x 75 mm up to 200 x 200 mm
• Maximum load capacity: 25 kg
• Tilt: -7.5° to 7.5°
• Swivel: -90° to 90°
• Wall distance (adjustable): 7 cm to 40 cm
• Color: Black
• Supports one display

How to use

Position the mount on a suitable wall surface and mark the fixing points according to the instructions provided with the product. Secure the wall plate with appropriate anchors or bolts for the wall type and hang the display using the VESA mounting holes, selecting screws that match the display's thread and depth. Adjust the tilt and swivel to obtain the desired viewing angle, and set the extension distance between 7 cm and 40 cm as needed. Verify all fasteners are tightened and check that the mounted display is stable before leaving it unattended.

Recommendations

Use suitable wall fixings for the substrate (drywall, concrete, brick) and respect the display's maximum weight. When installing in public or high-traffic areas, verify that the chosen height and swivel range do not obstruct movement or create viewing hazards. Periodically inspect mounting bolts and joints for secure seating and retighten if necessary.
