InLine wandbeugel voor displays 81-140cm 32-55 inch max. 50kg

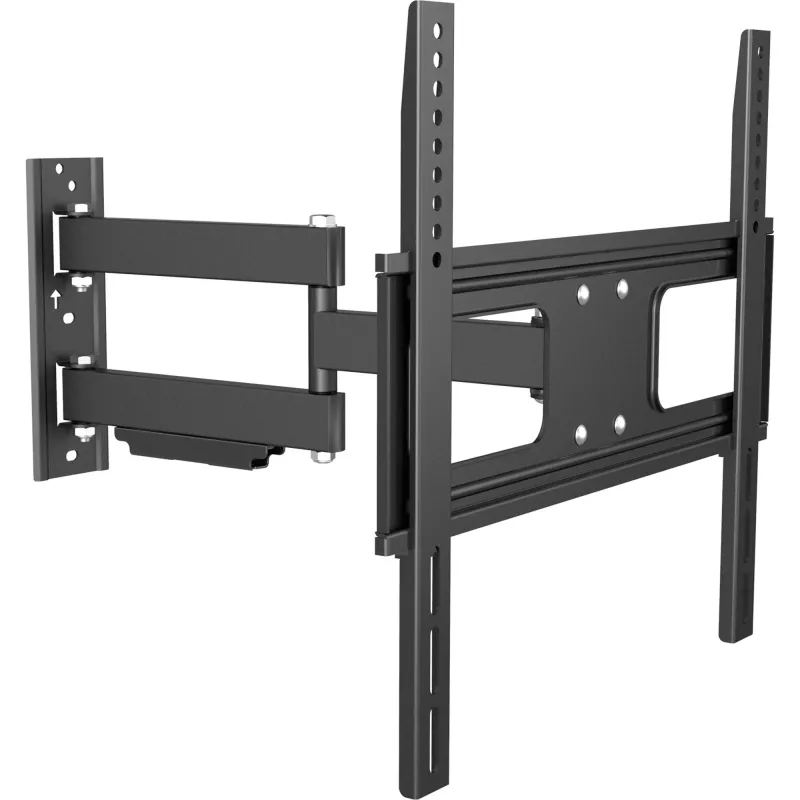

The InLine Wall Bracket for Display 81-140cm (32–55") is a fixed-to-wall mount engineered to support a single flat-panel display up to 50 kg. It accommodates VESA patterns from 200 x 200 mm to 400 x 400 mm and provides adjustable viewing angles with a tilt range of -10° to 20° and a swivel range of -90° to 90°. The bracket's extendable arm lets you set the display distance from the wall between 6 cm and 47.3 cm. Finished in black, the bracket is intended for residential, office, retail or meeting-room installations where a robust, space-conscious mounting solution is required.

Advantages

The bracket offers a broad compatibility range with common VESA standards and a high maximum load capacity of 50 kg, enabling secure mounting of most 32–55" displays. Adjustable tilt and swivel provide flexible viewing angle control for ergonomic positioning and reduced glare. The variable wall distance combines compact wall proximity with the option to pull the display outward for maintenance or improved sightlines. The black finish delivers a discreet appearance suitable for different interior styles.

Suitable for

• Mounting a single 32–55" flat-panel TV or monitor
• Home living rooms and bedrooms
• Office workstations and conference rooms
• Retail displays and point-of-sale screens
• Temporary exhibition or event signage

Key specifications

• Supported screen size: 32–55 inches
• Maximum load capacity: 50 kg
• Supported VESA: 200 x 200 mm up to 400 x 400 mm
• Tilt range: -10° to 20°
• Swivel range: -90° to 90°
• Adjustable wall distance: 6.0 cm to 47.3 cm
• Number of displays supported: 1
• Finish: black

How to use

Locate a suitable wall area with sufficient structural support for the bracket and the intended display weight. Mark and drill mounting holes according to the bracket's template, use appropriate anchors or bolts for your wall type, and securely fasten the wall plate. Attach the display mounting interface to the screen using the compatible VESA holes, lift the display onto the bracket and secure it following the manufacturer's safety steps. Adjust tilt and swivel to the desired viewing position and set the wall distance between 6 cm and 47.3 cm as needed. Confirm all fasteners are tightened and the display is stable before use.

Recommendations

Verify the display's weight and VESA pattern before installation and use appropriate wall fixings for your wall material. For safety, install the bracket into load-bearing structures or use certified anchors; if unsure, consult a professional installer. Periodically check mounting hardware for tightness, especially after moving the display or adjusting angles.
