InLine F-stekker voor coaxkabel met kabelmantel 7mm InLine 69912

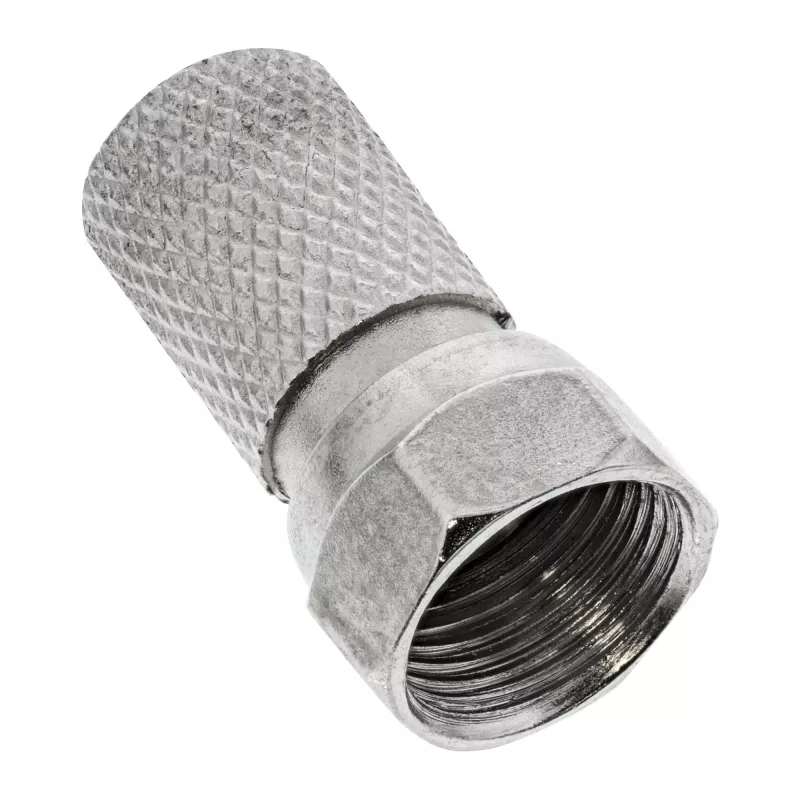

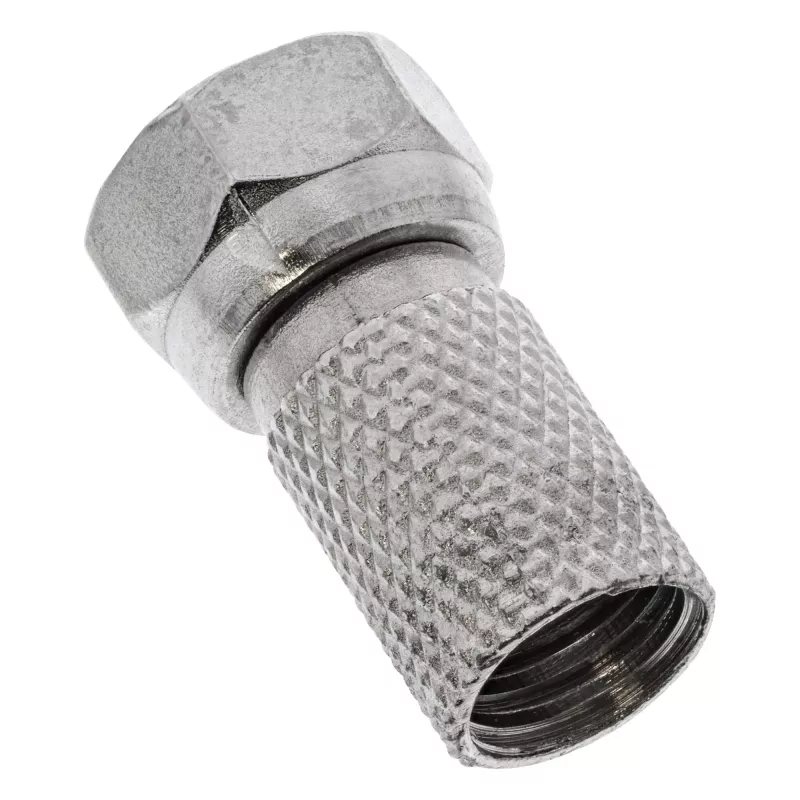

The InLine F-Plug connector for Coax Cable with Cable sheath 7mm (model 69912, EAN 4043718023875) is an F-type connector designed for coaxial cable termination. It is suitable for coax cables with an outer sheath diameter up to 8.2 mm, with optimal fit for a 7 mm sheath. Constructed from stainless steel, the connector is intended to provide reliable electrical contact and mechanical durability for signal transmission in domestic and professional installations.

Advantages

The stainless steel body resists corrosion and mechanical wear while maintaining consistent contact quality. The connector supports straightforward installation on the specified cable diameter, helping to achieve stable RF signal connection. Its standardized F-plug interface ensures compatibility with common receivers, splitters and wall outlets used in television and satellite systems.

Suitable for

Key specifications

How to use

Prepare the coaxial cable by stripping the outer sheath, shielding and dielectric to the dimensions appropriate for an F-plug connector, taking care not to damage the inner conductor. Slide the InLine F-Plug onto the cable and ensure the inner conductor protrudes through the center pin. Secure the connector according to the connector type — by crimping, screwing or compression — following standard termination practice and any tools recommended for stainless steel fittings. After installation, verify mechanical retention and test the RF signal to confirm correct connection.

Recommendations

Use this connector with coaxial cables that match the recommended sheath diameter (7 mm) for best electrical performance. When terminating cables near the maximum diameter (8.2 mm), check fit before final installation. Use appropriate tools for stainless steel connectors and test the signal after installation to ensure reliable performance.
