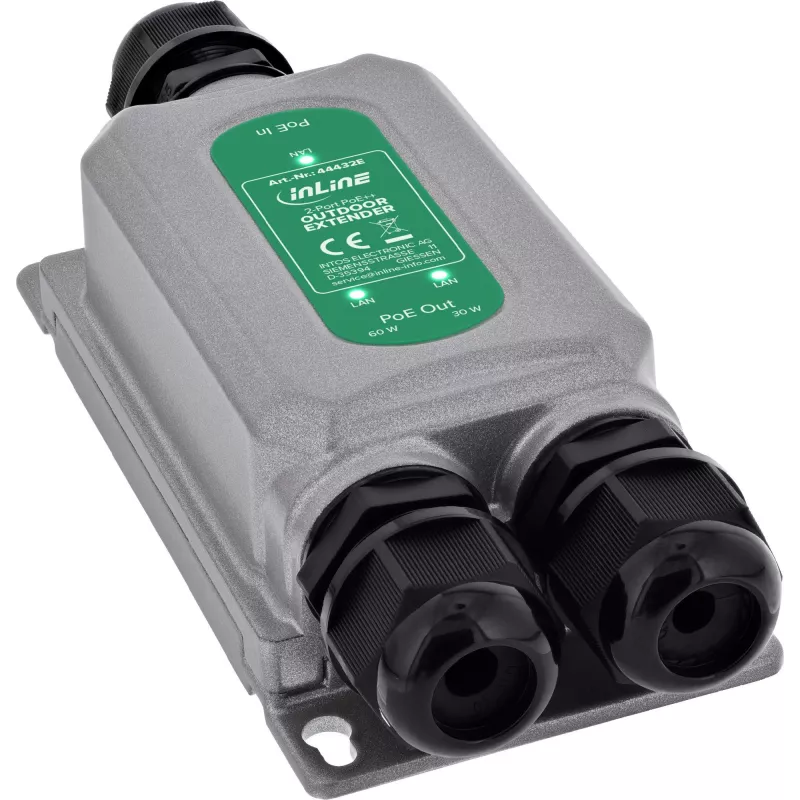

InLine® Gigabit PoE-extender, 90W, 2-poorts, IP67, IEEE 802.3bt

Power over Ethernet installations often hit a wall—literally—when cable runs exceed 100 metres or when devices need more power than standard PoE can deliver. The InLine® Gigabit PoE Extender solves this by doubling your reach and boosting power delivery, all without adding a separate power supply. This rugged, IP67-rated unit takes a single 90W PoE++ input and splits it into two Gigabit PoE outputs, making it ideal for outdoor cameras, wireless access points, and other high-power network devices in harsh environments.

Who is it for

Network installers, system integrators, and IT professionals who need to extend PoE networks beyond the standard 100-metre limit, power multiple devices from one cable run, or deploy equipment in outdoor or industrial settings. It is also perfect for anyone upgrading to 802.3bt PoE++ devices that require up to 60W per port.

Main features

• Extends Gigabit Ethernet and PoE up to an additional 100 metres per extender, enabling total runs of 200 metres or more when cascaded.
• Supports IEEE 802.3bt Type 4 (PoE++) with up to 90W input and 90W total output, delivering up to 60W on a single port or 30W per port when both are used.
• Two Gigabit RJ45 output ports allow you to power and connect two devices from one PoE input, reducing cabling and switch ports.
• IP67-rated metal housing is dustproof and waterproof, with an operating temperature range of -40°C to 75°C for reliable outdoor performance.
• Plug-and-play installation—no external power supply or configuration needed; simply connect the PoE input and your devices.
• LED indicators for power, PoE input, and PoE output provide instant status monitoring.
• Wall-mountable design for secure installation in cabinets, poles, or outdoor enclosures.

Specifications

• PoE Standard: IEEE 802.3bt Type 4 (PoE++)
• Data Rate: Gigabit Ethernet (10/100/1000 Mbps)
• PoE Input: 1x RJ45, up to 90W
• PoE Output: 2x RJ45, total 90W (max 60W per port if only one used)
• Extension Distance: 100 metres per extender
• Environmental Protection: IP67 (dustproof, waterproof)
• Operating Temperature: -40°C to 75°C
• Housing Material: Metal (aluminium alloy)
• Power Consumption (Self): Less than 2W
• Mounting: Wall-mountable
• Recommended Cable: Cat.5e or Cat.6 or higher

Tips

To maximise performance, use high-quality Cat.6 or Cat.6a cables and avoid running parallel to high-voltage lines. When cascading multiple extenders, ensure each segment is within 100 metres and that the total power budget accounts for all connected devices. For outdoor installations, seal all connections with weatherproof boots or enclosures to maintain the IP67 rating.
