InLine glasvezel duplexkabel LC/LC 50/125µm OM4 1m

Reliable high-speed connection:The OM4 multimode fibre cable with 50/125µm enables efficient data transmission over short distances – ideal for data centres and server cabinets.
High-precision LC/LC connector:UPC polishing on both sides guarantees low attenuation values and stable connections – suitable for professional applications.
Halogen-free LSZH jacket:The fire-resistant design ensures increased safety in public facilities and enclosed spaces.
Robust duplex design:Two separately routed fibres with a diameter of 3.0 mm ensure flexibility during installation and facilitate cable routing.
Colour-coded purple coding:Complies with the standard for OM4 cables – for quick identification and a structured network infrastructure.

The InLine® fibre optic duplex cable with LC/LC connectors has been developed for professional applications in data centres, corporate networks and structured building cabling. With its OM4 multimode fibre technology (50/125 µm), it offers a reliable high-speed connection for demanding network requirements over short transmission distances.
The LC connectors on both sides with precise UPC polishing guarantee low insertion loss and consistent signal quality – a basic requirement for the stable operation of modern network systems. The halogen-free LSZH (Low Smoke Zero Halogen) jacket also ensures increased safety during installation in sensitive areas such as public facilities or office buildings.

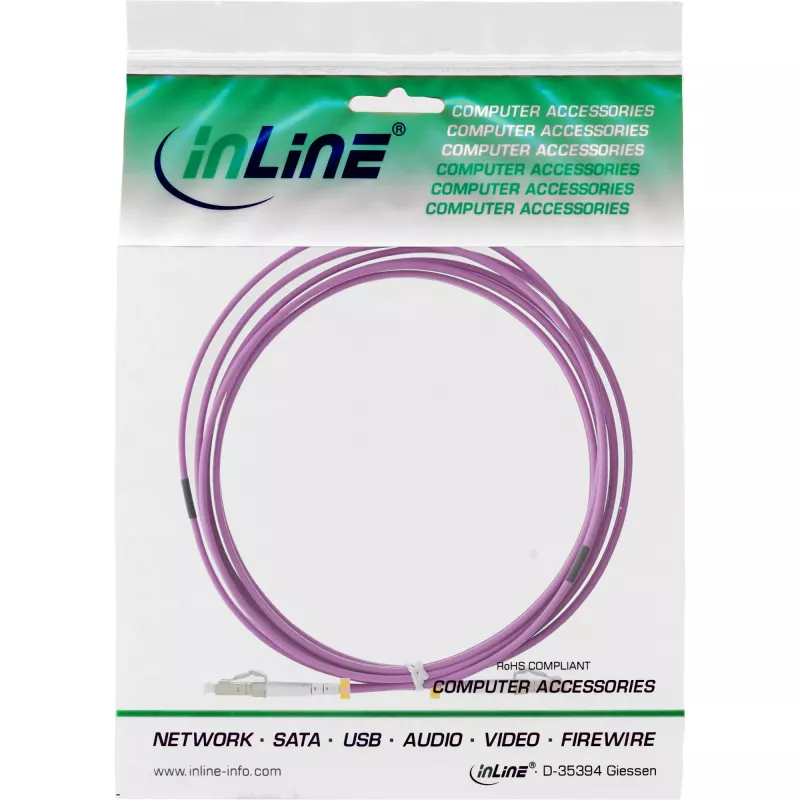

With a cable diameter of 3.0 mm per fibre, the cable offers high flexibility and a robust design. The purple colouring complies with the standard for OM4 fibres and supports easy differentiation within complex cabling environments. The cable is supplied in a practical shop wall bag including EAN code, which facilitates storage and integration into existing distribution processes.

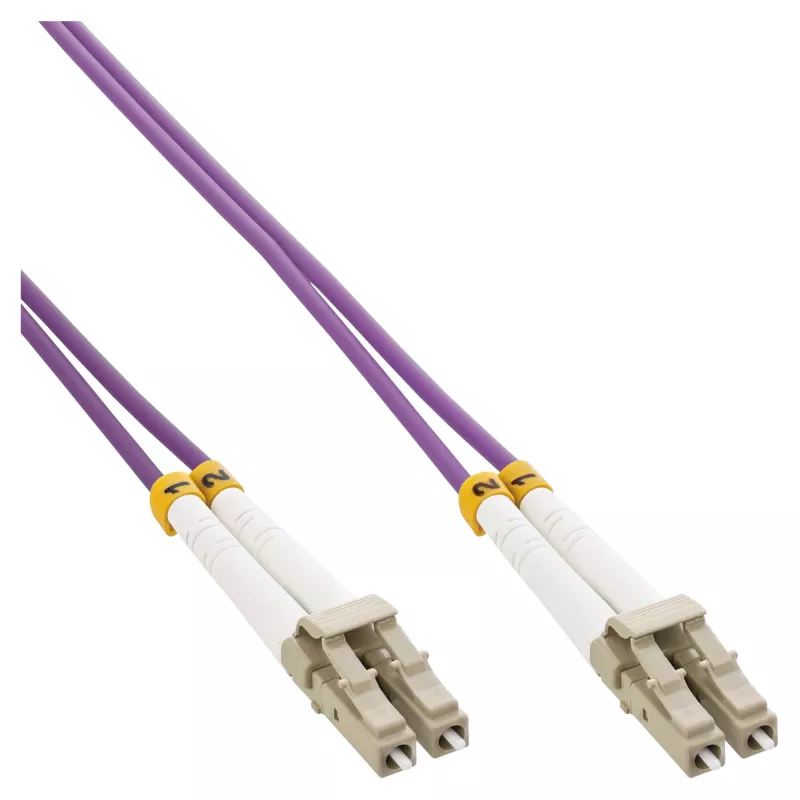

Connector type: 2x LC to 2x LC
Polishing: UPC on both sides
Cable diameter: 3.0 mm per strand
Fibre type: OM4 multimode, 50/125µm
Jacket material: LSZH (halogen-free)
Fibre colour: Purple

InLine Fiber Optical Duplex Cable LC/LC 50/125µm OM4 1m. Cable length: 1 m, Fibre optic type: OM4, Core diameter: 50 µm, Full duplex

How to use

Route the InLine LC/LC duplex cable between the two fiber ports ensuring proper bend radius to avoid microbending losses. Align and insert LC connectors into the corresponding transceiver or patch panel ports until a tactile click confirms secure connection. Verify proper transmit/receive orientation if required by your equipment and perform standard optical link testing or certified patch verification to confirm insertion loss and continuity.

Recommendations

Handle fiber connectors by the boot or housing to avoid touching the ferrule; keep protective caps on unused connectors. Maintain minimum bend radius as specified by OM4 multimode fiber guidelines, avoid excessive pulling force, and store the cable coiled without tight loops to preserve performance.
