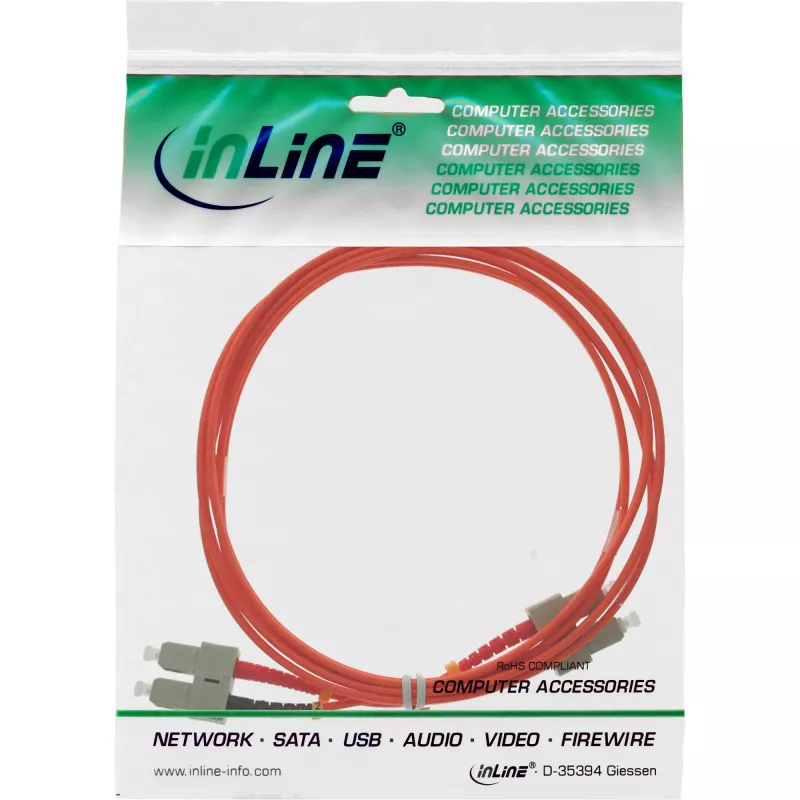

InLine glasvezel-duplexkabel SC/SC 50/125µm OM2 10m

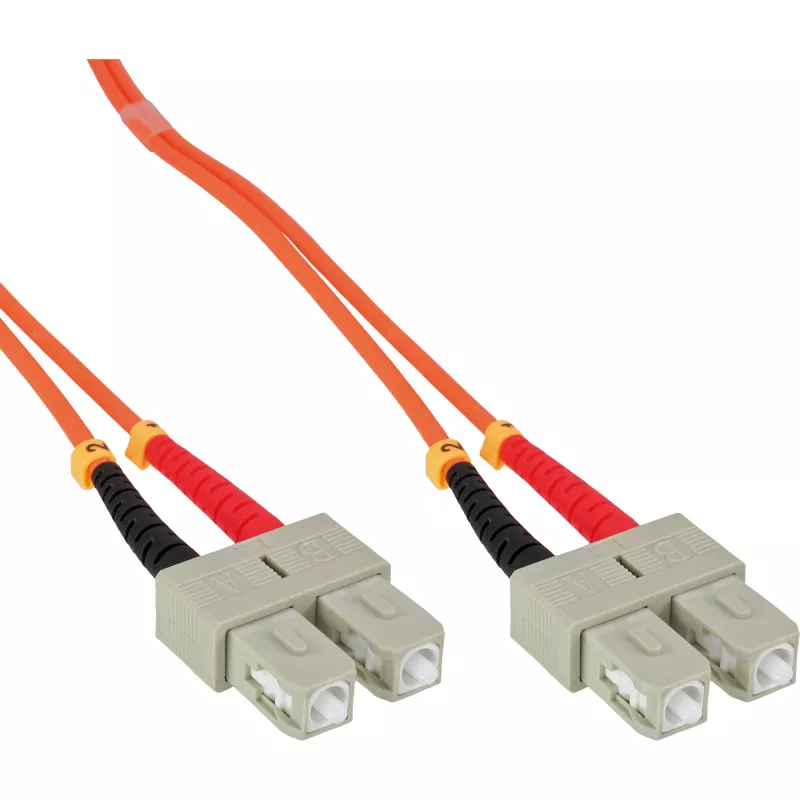

InLine Fiber Optical Duplex Cable SC/SC 50/125µm OM2 10m is a multimode duplex fiber patch cable with SC connectors on both ends and a core/cladding specification of 50/125 µm (OM2). It provides a 10 meter link for full-duplex optical data transmission and is manufactured without halogen materials.

Advantages

The cable uses OM2 multimode fiber with a 50/125 µm core, has SC connectors on both ends (2x SC to 2x SC) for simple plug-and-play installation, supports full-duplex transmission and is produced as halogen-free for improved safety in installations.

Suitable for

• Multimode network patching in data centers and server rooms
• Connecting switches, routers and optical transceivers with SC interfaces
• Telecommunications links requiring OM2 50/125 µm fiber
• Structured cabling where a 10 m duplex fiber run is needed

Key specifications

• Length: 10 m
• Fibre type: OM2 multimode
• Core/cladding diameter: 50/125 µm
• Connectors: 2x SC (SC to SC duplex)
• Mode: Full duplex
• Material: Halogen-free

How to use

Route the duplex cable between the two SC-equipped devices, ensuring proper bend radius for multimode fiber and secure the connectors into the SC ports until they click. Use one fiber for transmit and the other for receive to establish full-duplex communication. Avoid tight bends, kinks and excessive pulling force during installation.

Recommendations

For optimal performance, keep connector endfaces clean and use appropriate dust caps when the cable is not connected. Verify polarity and test the link with suitable optical test equipment after installation.
