InLine glasvezel simplexkabel, FTTH, LC/APC8° naar SC/APC8° 9/125µm OS2 25m

Single-fiber simplex patch cable by InLine, 25 m long, designed for single-mode (9/125 µm OS2) installations. The cable is terminated with an LC/APC (8°) connector on one end and an SC/APC (8°) connector on the other, providing angled physical contact for reduced back reflection. The assembly is intended for low-loss single-mode transmission in FTTH and other optical network environments, suitable for patching, splicing links and connecting optical equipment in premises or outside plant.

Advantages

The cable uses an armoured 3.0 mm outer jacket and a stainless-steel spiral tube for mechanical reinforcement, offering improved durability compared with many thin FTTH drop cables. The white neutral sheath allows unobtrusive routing in living areas. APC-polished connectors (8°) minimise return loss while typical insertion loss values are low, supporting reliable signal transfer. The cable is halogen-free and rated for a wide temperature range, making it suitable for indoor installations and sheltered outdoor runs.

Suitable for

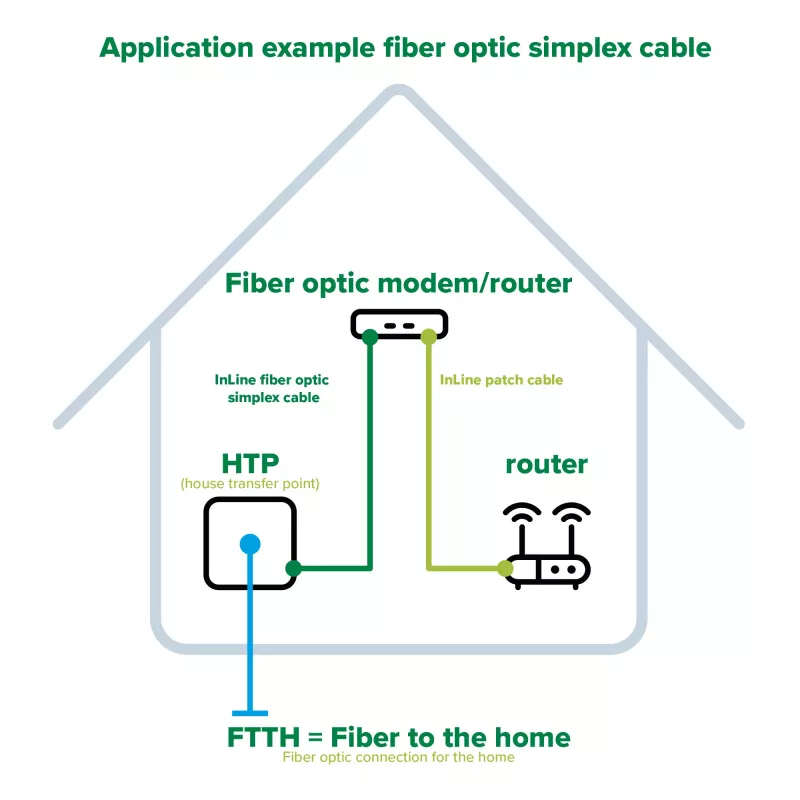

• FTTH connections between a house transfer point and an optical modem
• Single-mode patching in telecommunication rooms and data cabinets
• Connecting optical transceivers, ONTs or OLTs to subscriber equipment
• Temporary or permanent splicing links and test setups

Key specifications

• Fiber type: single-mode OS2, 9/125 µm
• Cable outer diameter: approximately 3.0 mm
• Reinforcement: stainless-steel spiral tube (armoured construction)
• Outer sheath: halogen-free, white

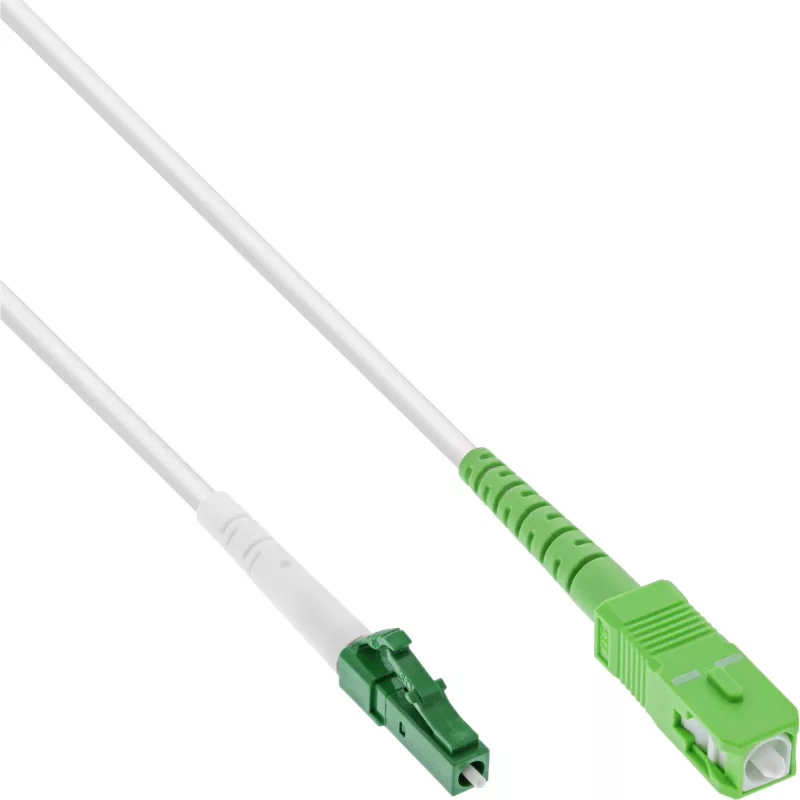

• Connector types: LC/APC (8°) to SC/APC (8°)
• Connector polish: APC angled physical contact (8°)
• Typical insertion loss: <0.20 dB (typical)
• Maximum insertion loss: <0.30 dB
• Return loss: >60 dB
• Compliance: IEC optical and fire/smoke standards for fibre installations
• Operating temperature range: -40 °C to +85 °C
• Length: 25 m

How to use

Route the cable between the optical network termination point and the target device, avoiding sharp bends and compressive stress. Insert the LC connector into the LC receptacle and the SC connector into the SC adapter until each connector clicks or seats firmly. Verify direction and keyed alignment when mating APC connectors to ensure the angled ferrule faces correctly. After installation, test the link with appropriate optical power meters or insertion-loss testers to confirm performance against expected loss and return-loss values.

Recommendations

Avoid tight bends below the cable's minimum bend radius and do not expose the cable to direct mechanical impact or prolonged UV exposure. Use dust caps on unused connectors and handle ferrules by the connector body to keep end-faces clean. For runs in areas with potential rodent activity or severe mechanical stress, consider additional conduit or protective routing.
