InLine HDMI-matrixswitch, 4K2K, 4 ingangen naar 2 uitgangen

The InLine HDMI MATRIX SWITCH conducts high-definition video and multi-channel digital audio from four HDMI sources to two display devices, supporting resolutions up to 4K2K. With two outputs, the unit provides independent routing of high-definition audio and video to up to two displays. The compact switch supports a bandwidth of 3.4 Gbit/s and has a typical power consumption of 2.5 W, suitable for home theater and professional installations where flexible source selection is required.

Advantages

The 4x2 HDMI matrix enables simultaneous connection of four input devices and two displays while allowing any input to be routed to either output without manual cable changes. Built-in IR remote control provides convenient switching from the display location. Rear audio outputs (Toslink, coaxial, analogue stereo) deliver audio linked to output A for separate analogue or digital extraction. The unit is compact, energy-efficient and supports up to 4K2K resolution to preserve image quality.

Suitable for

• Home theater systems requiring multiple HDMI sources
• Small professional AV installations and meeting rooms
• Setups where routing different sources to two displays is needed
• Environments that need external audio extraction from output A

Key specifications

• Model: InLine HDMI Matrix Switch 4x2 (MPN 65011K, EAN 4043718232000)
• Inputs / outputs: 4 HDMI inputs, 2 HDMI outputs
• Max resolution: up to 4K2K
• Bandwidth: 3.4 Gbit/s

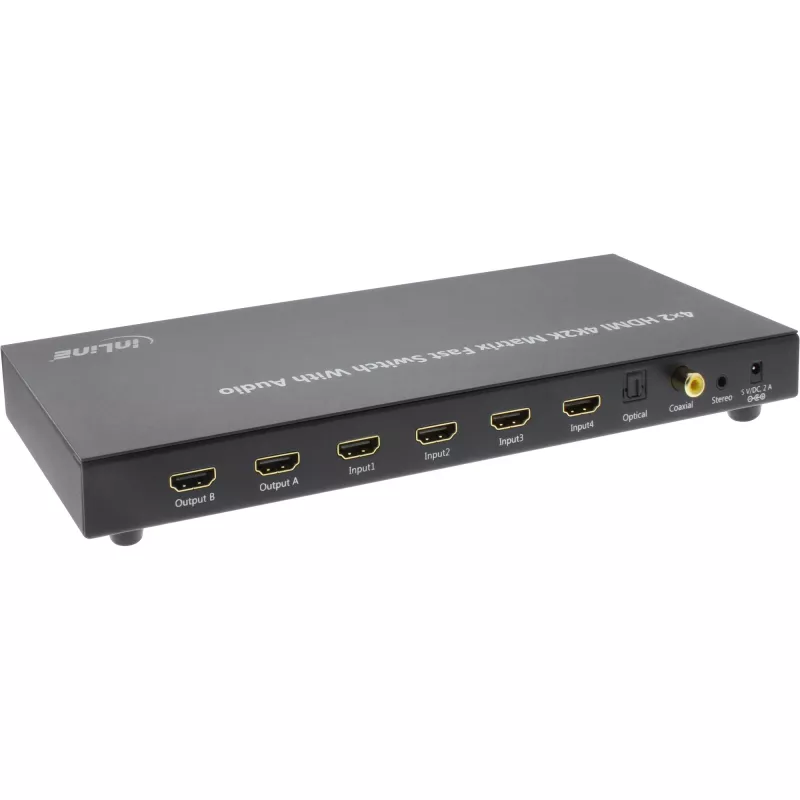

• Audio outputs: Toslink (optical), coaxial digital, analogue stereo (assigned to output A only)
• Colour: Black
• Typical power consumption: 2.5 W

How to use

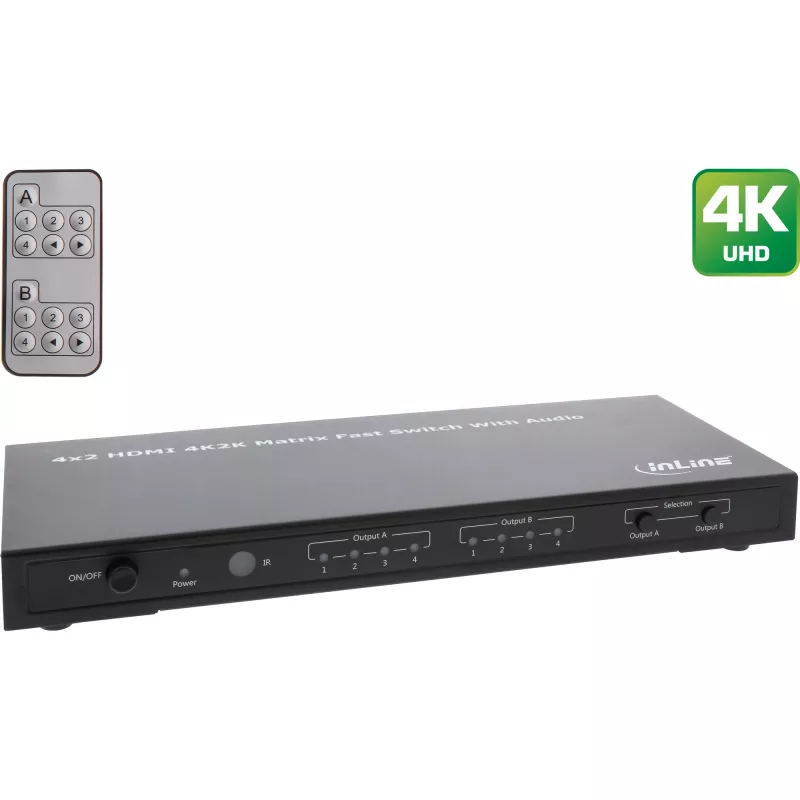

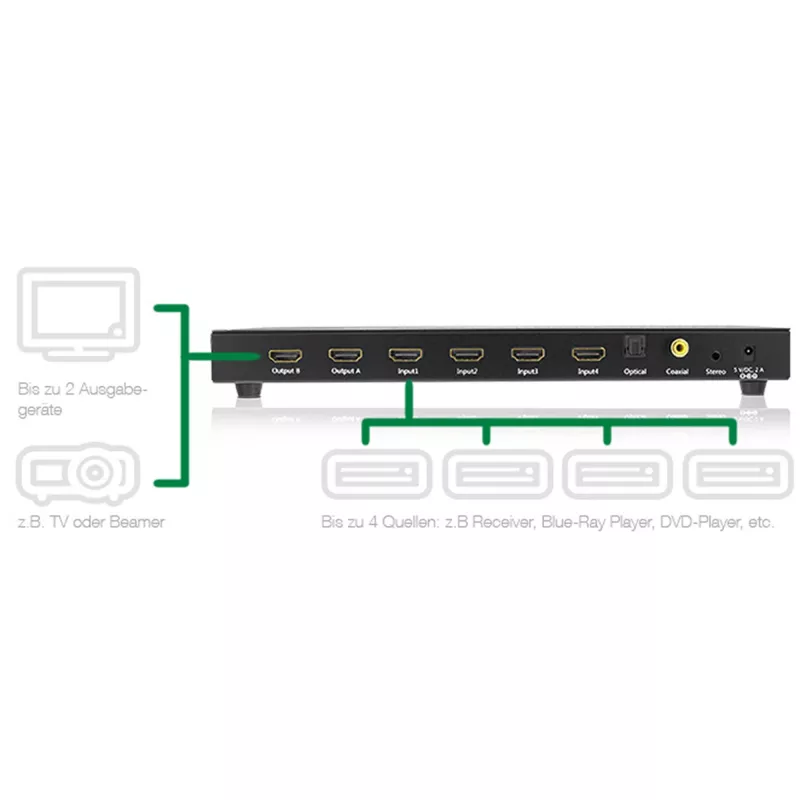

Connect up to four HDMI source devices to the HDMI input ports and connect up to two displays to the HDMI outputs. Use the front panel controls or the supplied IR remote control to select which input is routed to each output. If external analogue or digital audio extraction is required, use the Toslink, coaxial or analogue stereo outputs on the rear; note that these audio outputs correspond to output A only. Provide power to the unit and verify display resolutions are supported by connected devices.

Recommendations

For stable 4K2K performance use high-quality HDMI cables rated for the required bandwidth and ensure connected displays and sources support the target resolution. Place the unit in a ventilated location and avoid sharing the same power outlet with high-interference equipment.
