InLine PCI multi-I/O-controllerkaart 1 parallelle poort 25-pins

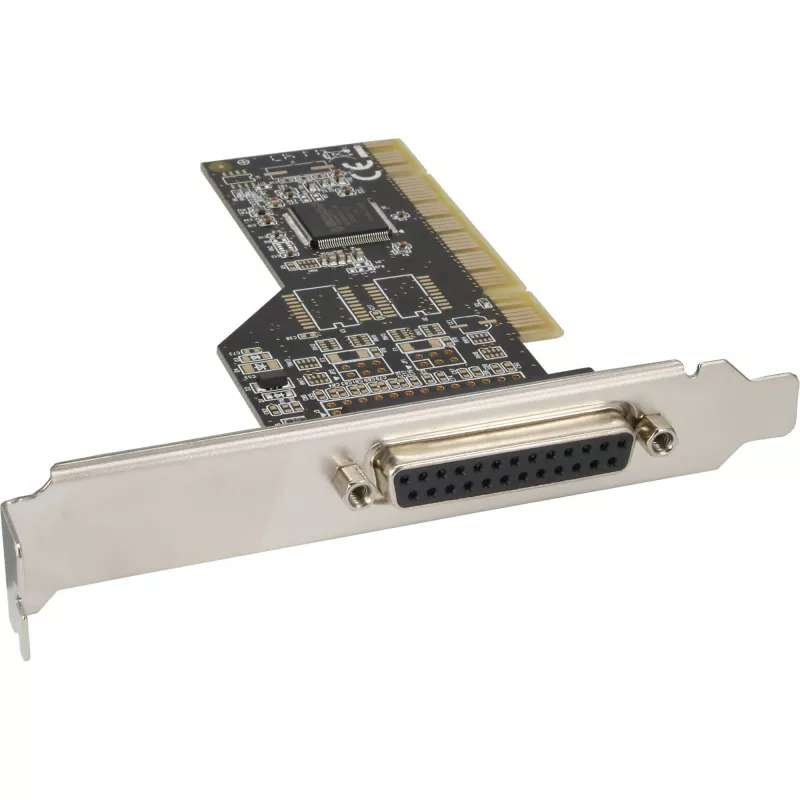

The InLine PCI Multi I/O Controller Card 1 Parallel Port 25 Pin adds a standard 25-pin parallel port to any PCI-capable PC. Based on the MCS9865 MosChip chipset and connecting via a PCI host interface, the card restores a DB-25 parallel connection for printers, scanners and other parallel devices. It supports wired data transfer rates up to 1.5 MBps and is compatible with a range of operating systems including DOS 6.22, Windows 2000, XP (32/64-bit), Server 2003 (32/64-bit), Vista (32/64-bit) and Server 2008.

Advantages

This PCI multi-I/O controller card provides a reliable DB-25 parallel port using the MosChip MCS9865 chipset and a standard PCI interface, delivering stable performance and data transfer rates up to 1.5 MBps. The card is designed for straightforward installation in any PCI slot and restores legacy parallel connectivity on modern motherboards that no longer include built-in parallel ports. Compatibility with multiple Windows and DOS versions ensures broad driver support for legacy equipment.

Suitable for

• Connecting legacy parallel printers and plotters
• Industrial automation devices that use parallel interfaces
• Older scanners and measurement instruments with DB-25 parallel ports
• Workstations requiring a dedicated parallel port for legacy software

Key specifications

• Model: InLine PCI Multi I/O Controller Card 1 Parallel Port 25 Pin (MPN: 66630I, EAN: 4043718122615)
• Chipset: MosChip MCS9865
• Interface: PCI host interface
• Parallel port: 1 × 25-pin (DB-25)
• Maximum data transfer rate: up to 1.5 MBps
• Supported OS: DOS 6.22, Windows 2000, Windows XP (32/64-bit), Server 2003 (32/64-bit), Vista (32/64-bit), Server 2008

How to use

Power off the PC and insert the card into an available standard PCI slot on the motherboard. Secure the card in the chassis bracket, restart the system and install the appropriate drivers for your operating system if they are not installed automatically. Connect the DB-25 parallel cable from your printer or other parallel device to the card’s 25-pin connector. Verify device recognition in the OS device manager and configure port settings as required by the connected hardware.

Recommendations

Install the card in a spare PCI slot and use shielded DB-25 cables for reliable wired connections. Ensure you install the correct driver version for your OS to achieve full compatibility and maximum transfer rates. For industrial environments, mount the card in a well-ventilated chassis and avoid excessive electromagnetic interference near the parallel cabling.
