InLine RJ45 module bus naar bus SNAP-In Cat.6 STP 74206M

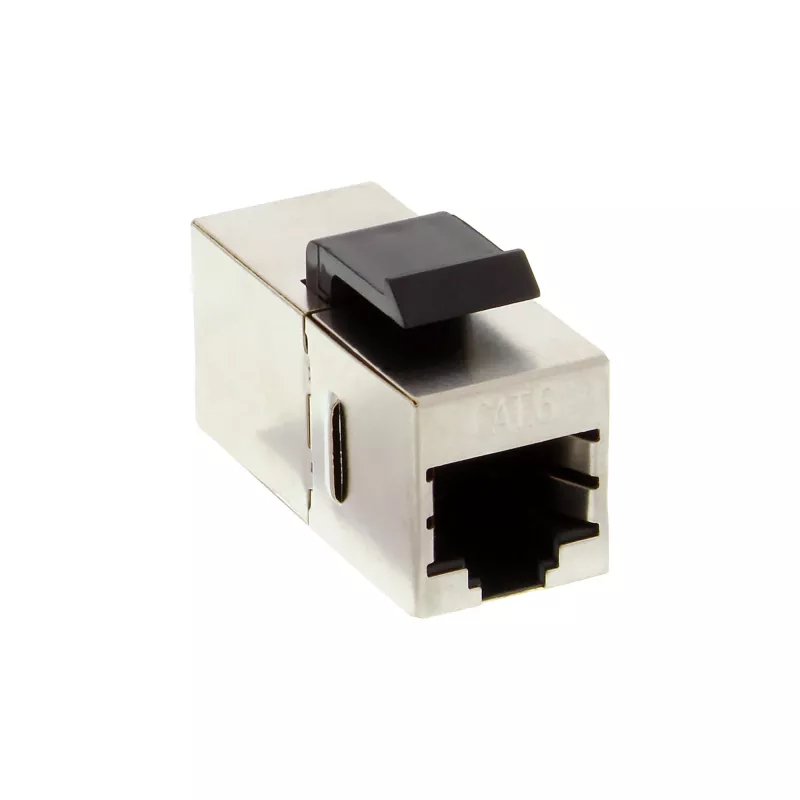

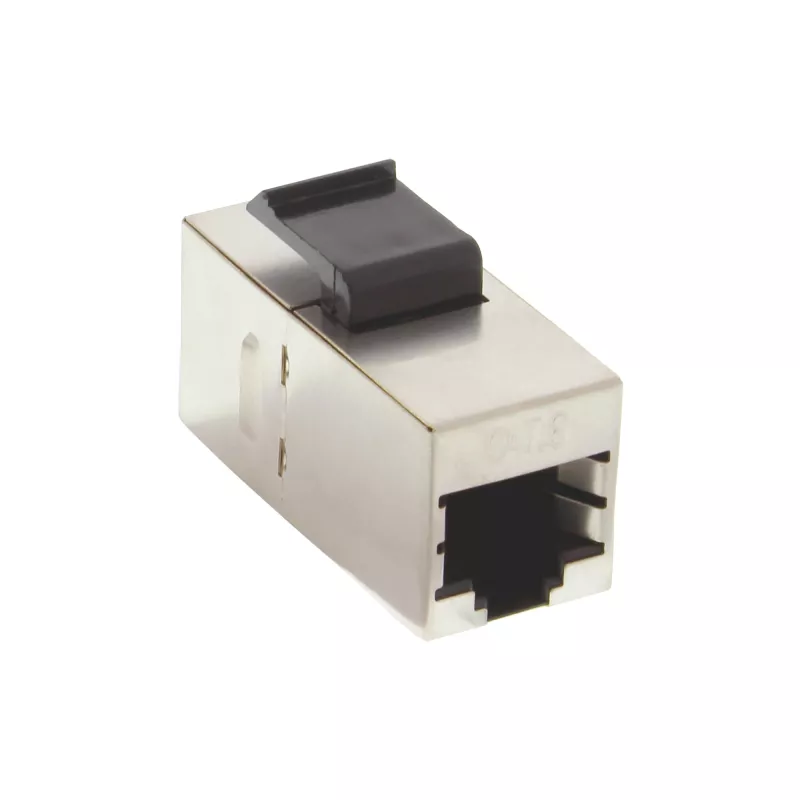

The InLine RJ45 Module female to female SNAP-In Cat.6 STP 74206M is a compact keystone-style insert that provides two RJ45 female ports in a single snap-in unit. Designed for structured LAN installations, the module fits into standard snap-in support frames and wall plates from common manufacturers and supports shielded Cat.6 connections for reliable high-speed data transmission. The module is available in black and silver and is suitable for creating network extensions, patch panels or compact coupling points inside enclosures or sockets.

Advantages

This SNAP-In Cat.6 STP module offers a dual RJ45 female interface in a single insert, enabling easy coupling or extension of Ethernet connections. Its snap-in (keystone) format allows installation into support frames and socket outlets from manufacturers such as Gira, Merten and PEHA (insert size: 14.6 x 19.4 mm). The shielded Cat.6 design improves interference protection for higher data integrity, and the compact construction simplifies mounting in limited spaces.

Suitable for

Key specifications

How to use

Prepare the installation by turning off network devices if necessary. Insert the module into a compatible snap-in support frame or wall plate opening until it clicks into place. Connect standard shielded RJ45 patch cables to each female port to couple two cable runs or to create a short patch link. Ensure shield continuity is maintained when using shielded cables and metal frames by properly connecting grounding elements where required.

Recommendations

Use the module with shielded Cat.6 cables for best performance and ensure the support frame or socket outlet matches the insert size (14.6 x 19.4 mm). Verify grounding of the shielded system when installed in metal enclosures or using metal faceplates.
