InLine slotbeugel DB25-bus / 26-pins header 0,34 m, bulk

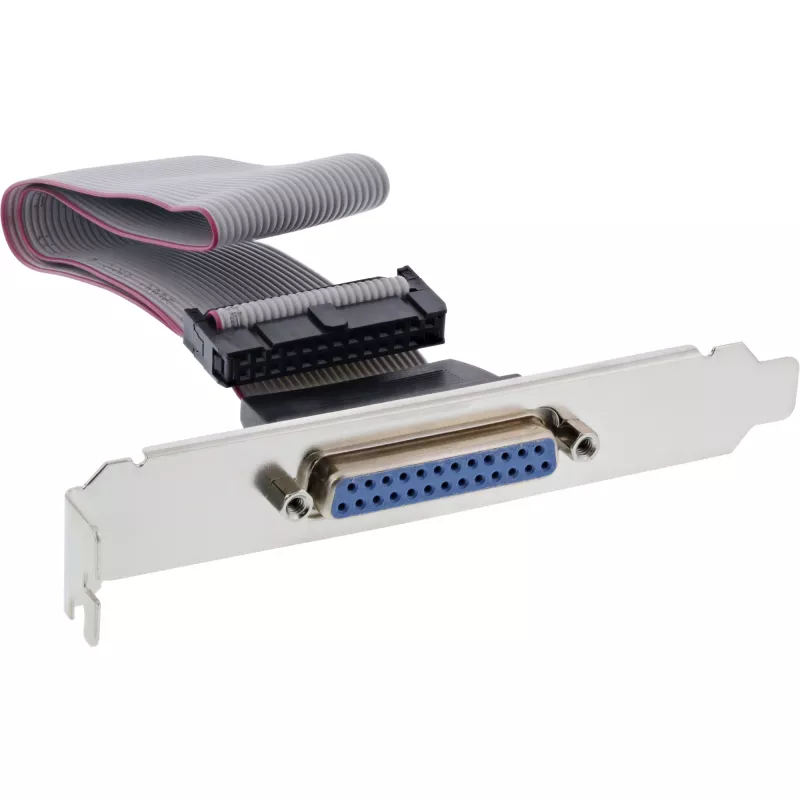

Slot bracket with a DB25 female Sub-D socket mounted on a short cable with a 26-pin header connector. The InLine Slot Bracket DB25 female / 26 Pin Header 33225B provides a standard DB25 female connection at the rear of a PC chassis, enabling connection to a motherboard or internal device via the 26-pin header.

Advantages

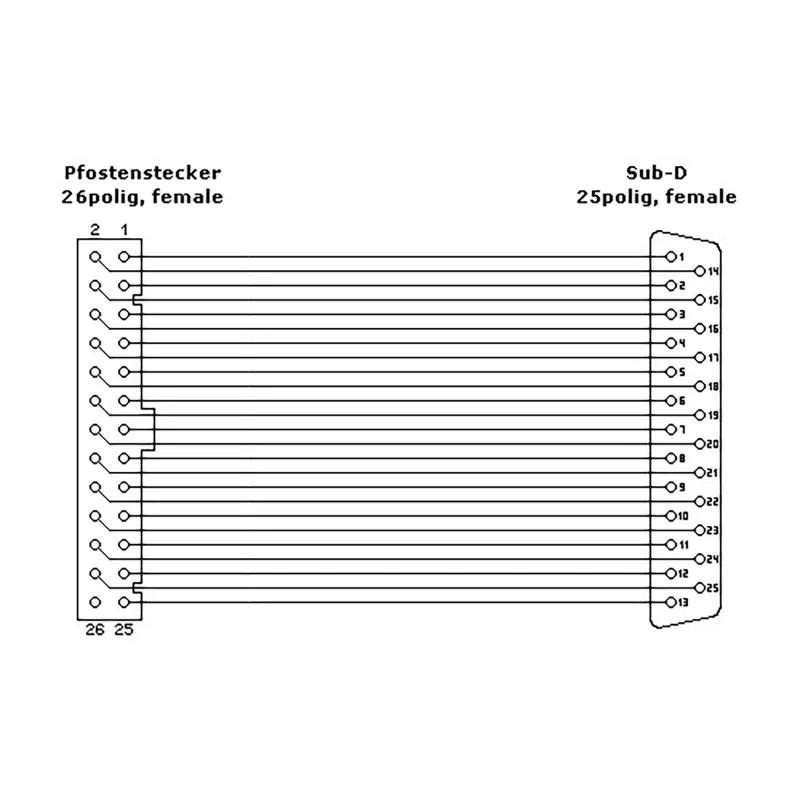

The bracket offers a compact, silver-finished external connector that converts an internal 26-pin header to a DB25 female port. It comes pre-wired on a 0.34 m cable and is delivered as a single-piece unit for straightforward installation. The design follows common Sub-D and header pinouts to ensure compatibility with equipment expecting a 26-pin to DB25 interface.

Suitable for

Key specifications

How to use

Install the slot bracket into an available rear expansion slot of the PC chassis and secure it with the slot screw. Connect the 26-pin header to the corresponding header on the motherboard or expansion card, ensuring correct pin alignment. Once connected, the DB25 female socket on the bracket provides external access for compatible cables and devices.

Recommendations

Verify the pinout and signal compatibility between the motherboard/header and the external device before use; use only cables and peripherals rated for DB25 connections to avoid damage or miswiring.
