InLine tafelsteun met lift en USB/audio tot max. 82 cm 32 inch 9 kg

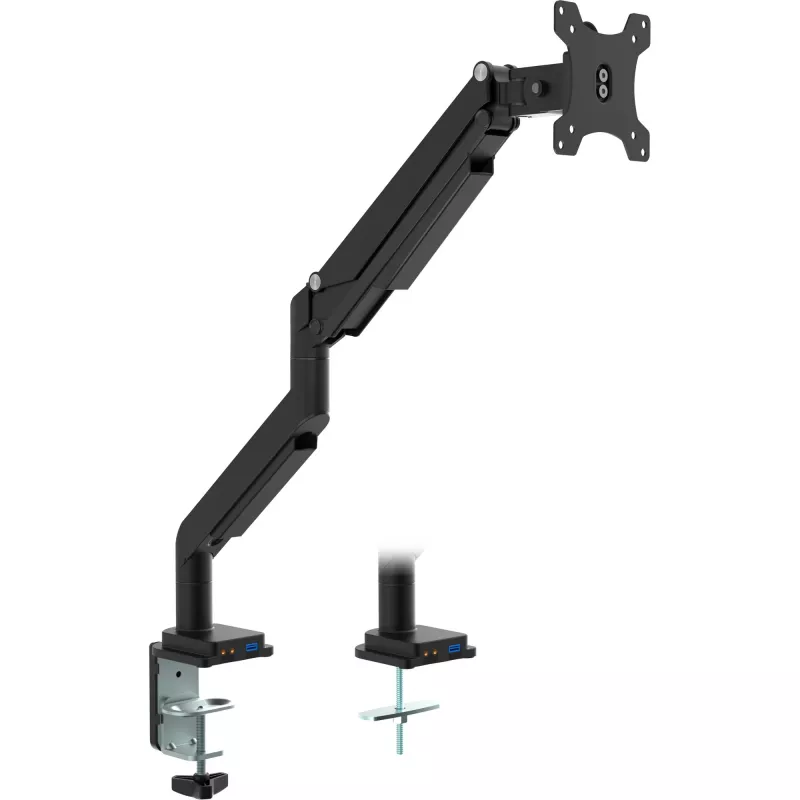

The InLine Table mount with lift USB/Audio 82cm 32" 9kg is a compact desk-mounted support designed for single screens with VESA patterns from 75 x 75 mm up to 100 x 100 mm. It accommodates monitors up to 32" with a maximum load of 9 kg and provides vertical adjustment up to 82 cm. The mount features integrated USB and audio pass-through for convenient cable access and a black finish that integrates with most workspaces.

Advantages

This table mount combines a tall lifting range with a minimal footprint, allowing users to position a compatible monitor precisely at the desired viewing height. The swivel and tilt ranges permit flexible screen orientation, while the VESA compatibility supports standard monitor attachment. Integrated USB and audio ports reduce desk clutter by centralizing common connections at the display location.

Suitable for

• Home offices and corporate desks where a single 17"–32" monitor is used
• Workstations requiring frequent height adjustment for ergonomic viewing
• Environments that benefit from integrated USB and audio access at the screen

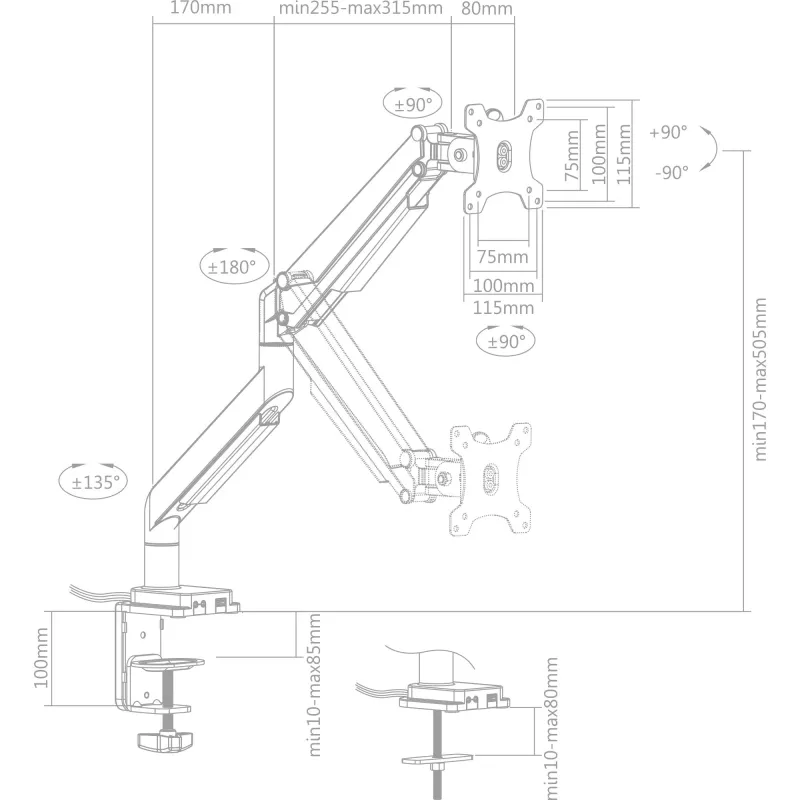

Key specifications

• Supported VESA: 75 x 75 mm to 100 x 100 mm
• Maximum screen size: up to 32"
• Maximum load capacity: 9 kg
• Height adjustment (lift): up to 82 cm
• Swivel range: -90° to 90°
• Tilt range: -90° to 90°
• Number of displays: 1
• Colour: Black

How to use

Attach the mount to a suitable desk edge or surface according to the included mounting hardware and instructions, ensuring the desk can support the combined weight of the clamp and monitor. Fasten the monitor to the VESA plate using the correct screws for the screen's VESA pattern. Use the lift mechanism to raise or lower the monitor within the 82 cm range, and adjust swivel and tilt to achieve the preferred viewing angle. Connect peripherals to the integrated USB and audio ports as needed.

Recommendations

Confirm the monitor weight does not exceed 9 kg and that the monitor's VESA holes match 75 x 75 mm or 100 x 100 mm before installation. Ensure the desk surface and clamp are secure, and periodically check fasteners and cable routing to maintain stable performance.
