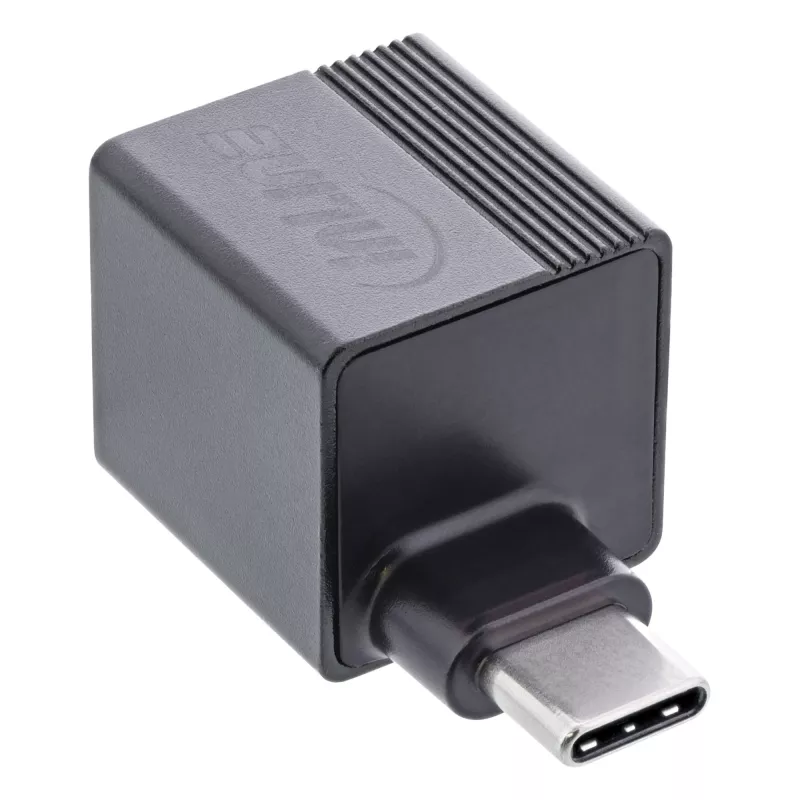

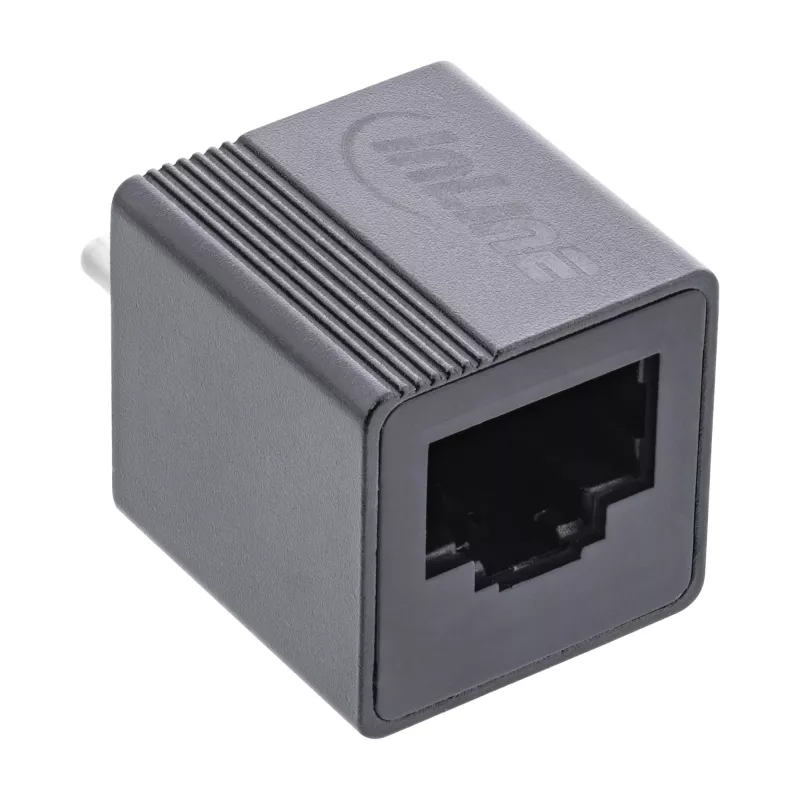

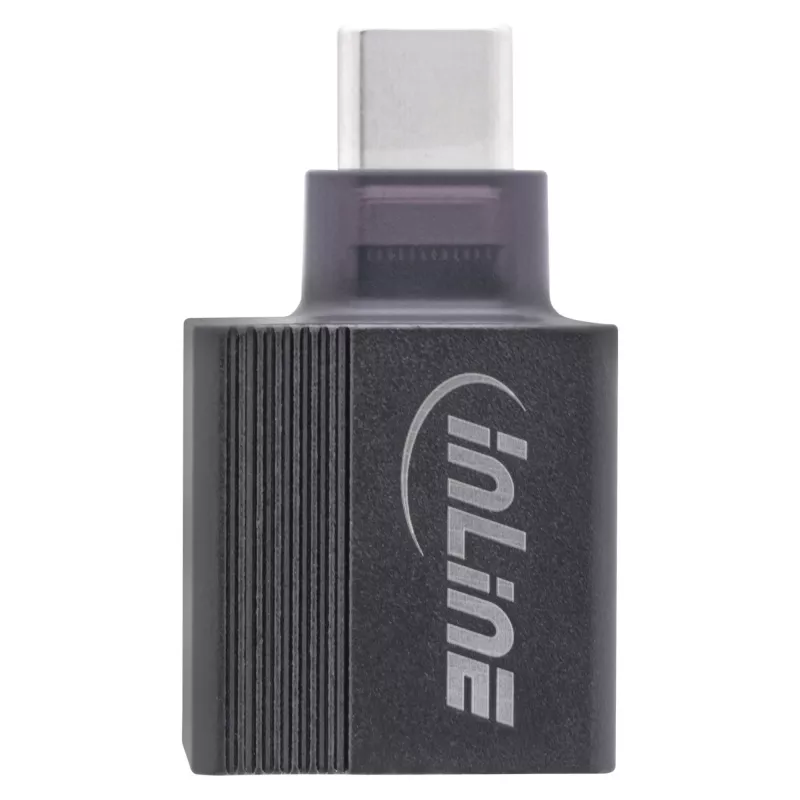

InLine USB 3.2 naar 1Gb/s netwerkadapter, USB-C naar RJ45

Stable Gigabit LAN connection:The adapter enables a reliable 1Gb/s network connection via any USB-C interface.
High performance thanks to USB 3.2:The super-speed interface with up to 5Gb/s supports fast and efficient data transfers.
Professional network standards:Supports IEEE 802.1P/802.1Q/802.3/802.3u/802.3az for use in structured IT environments.
Optimized duplex operation:Full-duplex operation with IEEE 802.3x flow control and half-duplex with backpressure flow control ensure stable data streams.
Support for large data packets:Jumbo frames up to 9K bytes improve efficiency in data-intensive applications.

The InLine® USB 3.2 to 1Gb/s network adapter offers a powerful and stable connection to wired networks. The connection is made via a USB-C interface, so devices without an integrated RJ45 port can be easily integrated into existing infrastructures. The adapter uses USB 3.2 SuperSpeed technology with up to 5Gb/s, offering high transfer speeds for professional work environments.
The network adapter is fully compatible with USB specifications 3.0, 2.0, and 1.1. It supports common IEEE standards such as 802.1P, 802.1Q, 802.3, 802.3u, and 802.3az. This makes it suitable for structured networks and demanding applications. Operation in full duplex with IEEE 802.3x flow control or in half duplex with backpressure flow control ensures stable data communication.
With support for jumbo frames up to 9K bytes, the efficiency of transferring large amounts of data is significantly increased. The adapter is powered via USB bus, so no additional power source is required. The integrated Realtek RTL8153 chipset ensures reliable and proven performance. Windows 11, Windows 10, Windows 8.x, and Windows 7 operating systems are supported.

Realtek RTL8153 chipset
USB bus powered
Scope of delivery: 1 x USB-C network adapter, 1 x user manual
Supported operating systems: Windows 11 / 10 / 8.x / 7 (32/64-bit)

InLine USB 3.2 to 1Gb/s network adapter, USB-C to RJ45. Host interface: USB Type-C, Output interface: RJ-45, Host interface gender: Male. Product colour: Grey. Connector 1 gender: Male, Connector 2 gender: Female, Connector 1 form factor: Straight. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1. Width: 20 mm, Depth: 35 mm, Height: 20 mm

How to use

Plug the adapter‘s USB Type-C connector into the computer‘s USB-C port and connect an Ethernet cable to the RJ‑45 jack. For Windows 10, 11, 8.1 and 8 the adapter should be recognised automatically; for Windows 7 or earlier install the required driver before use. After connection and driver installation (if needed), configure network settings in the operating system as usual.

Recommendations

Use a high-quality Cat5e or Cat6 Ethernet cable for stable Gigabit performance and avoid excessive bending of the adapter cable to prolong service life. Ensure drivers are updated for optimal compatibility on older Windows versions.
