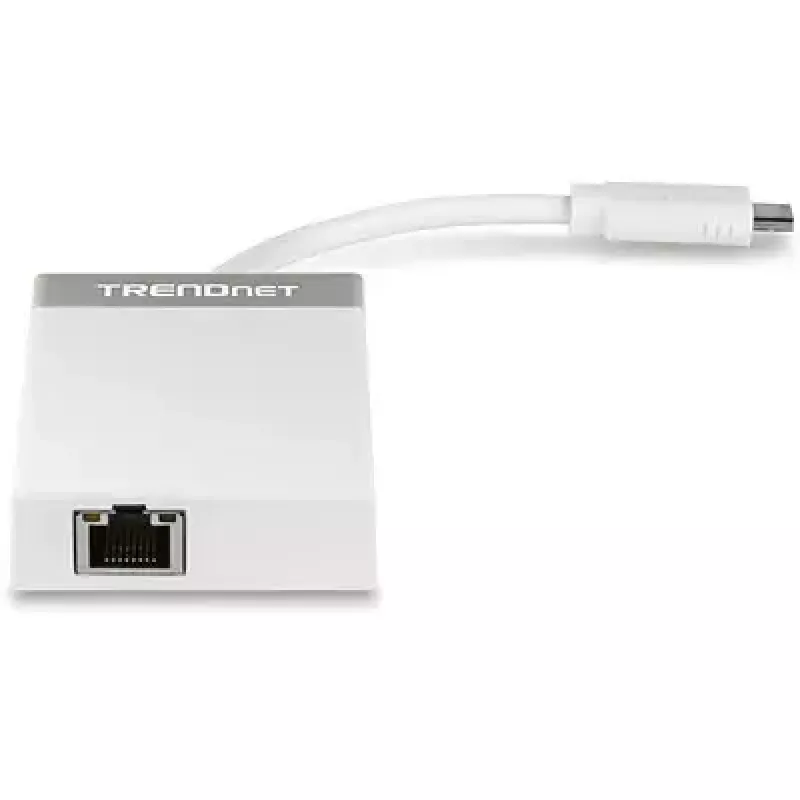

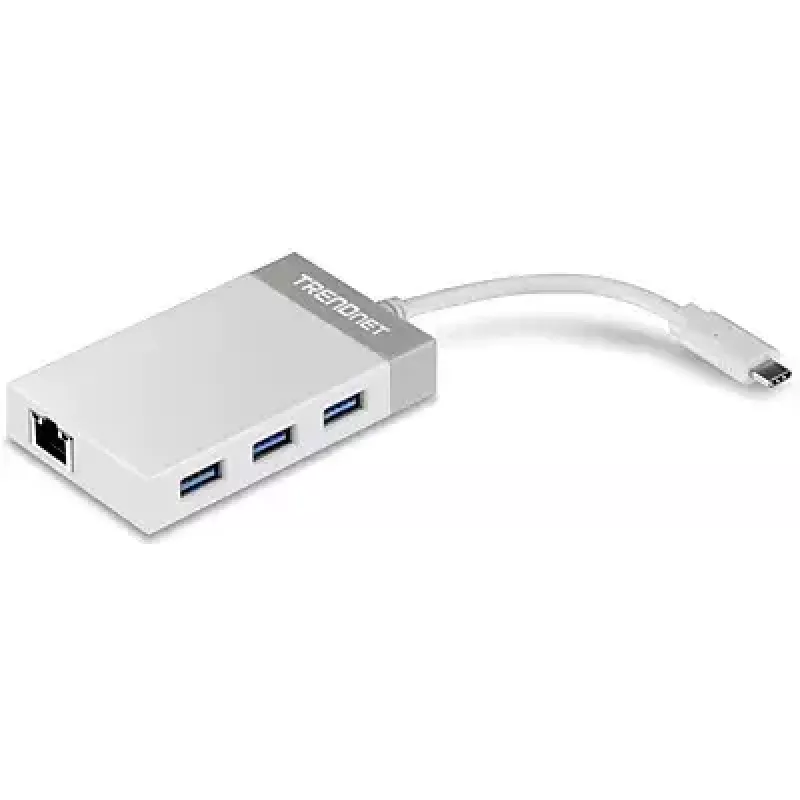

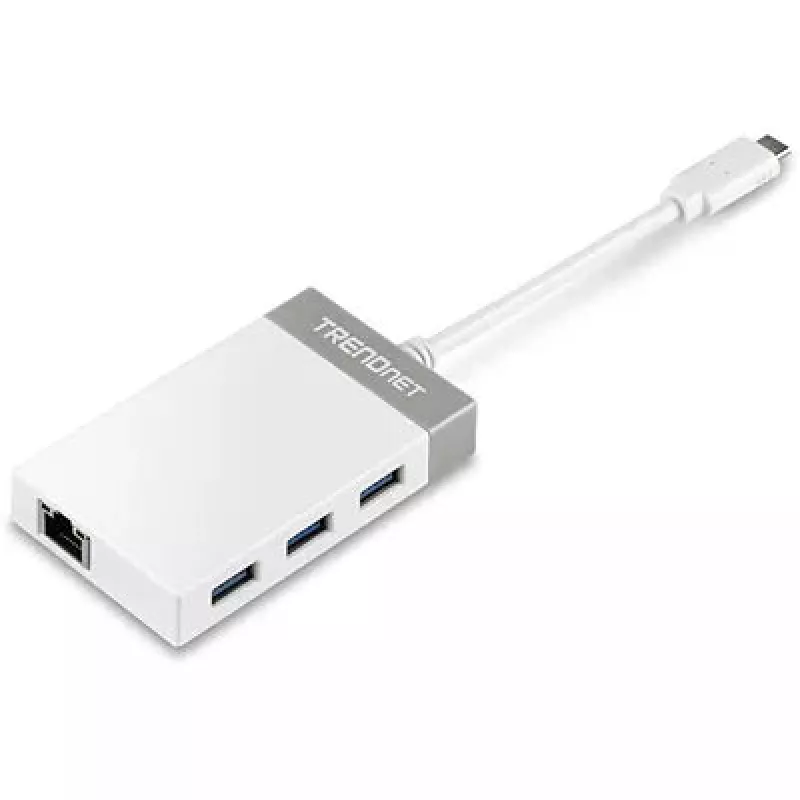

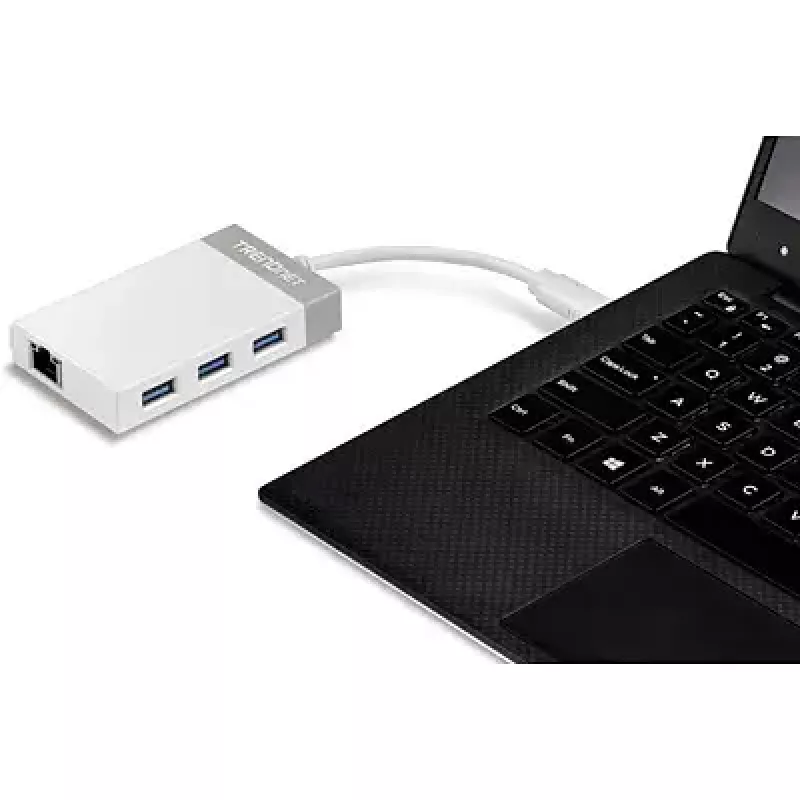

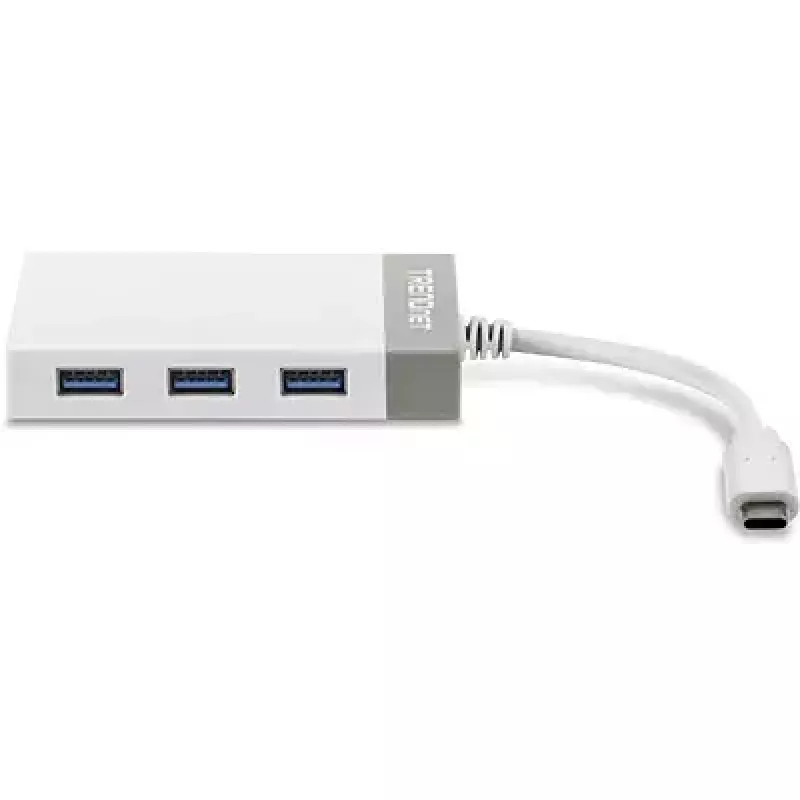

Dockingstation Trendnet TUC-ETGH3

The Trendnet TUC-ETGH3 is a compact USB 3.2 Gen 1 Type-C docking station that expands a laptop's connectivity with USB Type-A and RJ-45 network interfaces. Designed for users who need simple wired networking and additional USB access, the dock combines a USB 3.2 Gen 1 Type-A port and an Ethernet port in a grey-and-white enclosure. It is compatible with common desktop operating systems and provides low power consumption for efficient daily use.

Advantages

The docking station offers reliable Gigabit-capable Ethernet connectivity via the RJ-45 interface while maintaining high-speed USB 3.2 Gen 1 data transfer through the Type-A port. Its Type-C host interface ensures easy plug-and-play connection to modern laptops and devices. The unit's small form factor and lightweight construction make it portable and easy to integrate into mobile workstations. Low typical power consumption and modest output voltage/current specifications support energy-efficient operation.

Suitable for

• Connecting a laptop to a wired Ethernet network where Wi‑Fi is unavailable or unreliable
• Adding a high-speed USB 3.2 Gen 1 Type-A port to Type-C only devices
• Portable work setups and business travel where compact adapters are preferred
• Home offices and small office desks that require a minimal cable footprint

Key specifications

• Host interface: USB 3.2 Gen 1 (Type-C)
• Hub interfaces: USB 3.2 Gen 1 Type-A and RJ-45 (Ethernet)
• Supported operating systems: Windows 10, 8, 8.1 and Mac OS X 10.13 and 10.9
• Output voltage: 5 V
• Output current: 0.9 A
• Typical power consumption: 4.5 W
• Product colour: Grey, White
• Weight: 0.054 kg

How to use

Connect the Trendnet TUC-ETGH3 to a host device using a USB Type-C cable (host cable required). Once connected, the docking station should be recognized by the operating system; install drivers if prompted by the OS. Plug an Ethernet cable into the RJ-45 port to access wired network services and connect USB peripherals to the Type-A port for data transfer. Place the dock on a stable surface close to the host device to avoid tension on the cable.

Recommendations

For stable network performance, use a Cat5e or better Ethernet cable and keep firmware/drivers up to date according to the operating system's guidance. Avoid exposing the unit to liquids or extreme temperatures and disconnect the device by safely removing network shares or unmounting storage devices before unplugging.
