InLine USB-displayconverter, USB-C-stekker naar HDMI-bus (DP Alt Mode) 4K/60Hz

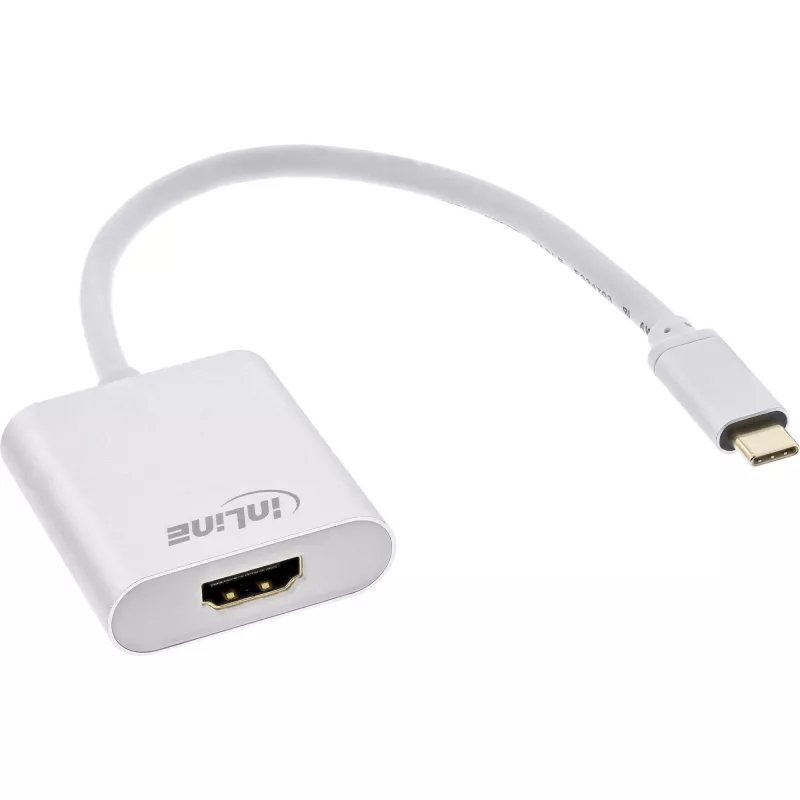

The InLine USB Display converter (model 64101S) is a USB Type-C to HDMI adapter designed to connect computers and devices with a USB-C port that supports DisplayPort Alternate Mode or Thunderbolt 3 to HDMI displays and monitors. The adapter carries both video and audio signals and supports 4K resolution at 60Hz with RGB and YCbCr 4:4:4 colour sampling. It is USB powered and requires no external power supply; the compact silver adapter and 0.2 m cable suit both home and office setups.

Advantages

The adapter supports resolutions up to 3840 x 2160 @60Hz and is compatible with VESA DisplayPort 1.2, HDMI 2.0 and USB 3.1 standards. It is HDCP 1.4 and 2.2 compatible, supports 3D, works with computers that have Thunderbolt 3, and offers plug & play operation without additional drivers.

Suitable for

Key specifications

How to use

Ensure your computer or device has a USB Type-C port that supports DisplayPort Alternate Mode or a Thunderbolt 3 port (often marked with a DisplayPort logo). Connect the USB-C plug of the adapter to the device and plug an HDMI cable from the adapter's HDMI-A socket to the display. The adapter is plug & play on supported systems; select the correct input on your monitor or TV. The adapter transmits both video and audio over the HDMI connection.

Recommendations

Use a high-quality HDMI cable rated for HDMI 2.0 or higher to achieve 4K@60Hz. Check your device’s specifications or port marking for DisplayPort Alternate Mode support; operating systems supported include Windows 7/8/10 and macOS 10.9 or newer. For optimum results, ensure your display and source both support the desired resolution and HDCP version.
