InLine WIFI-antenne 2,4 GHz SMA-stekker 5 dBi

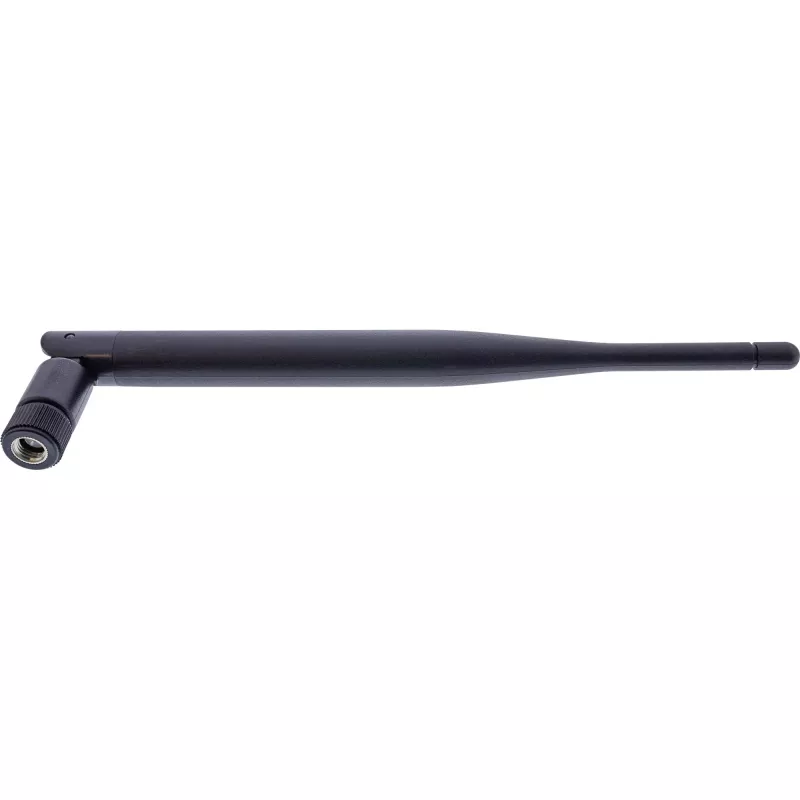

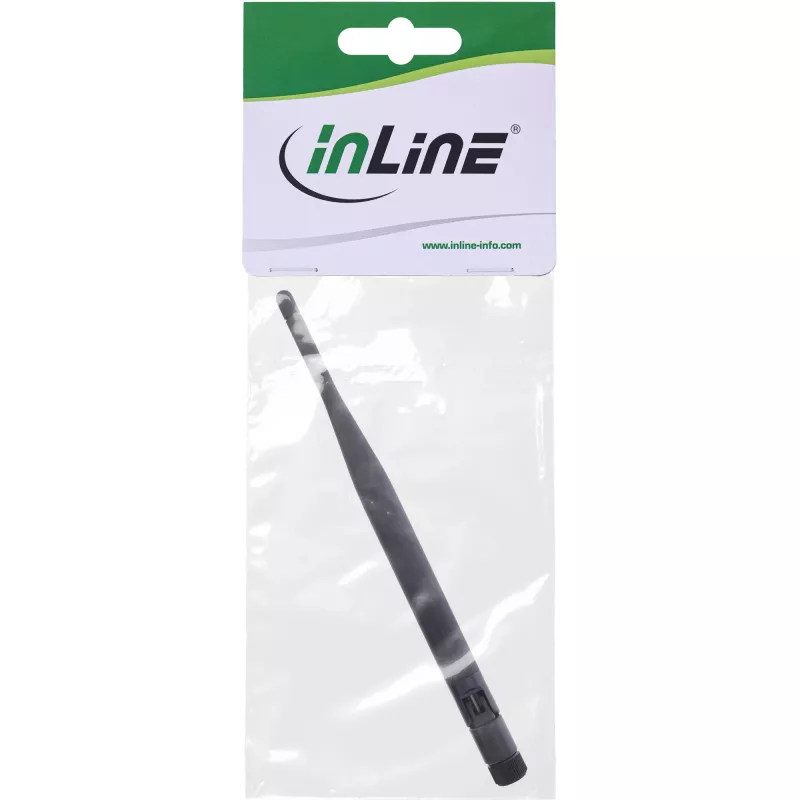

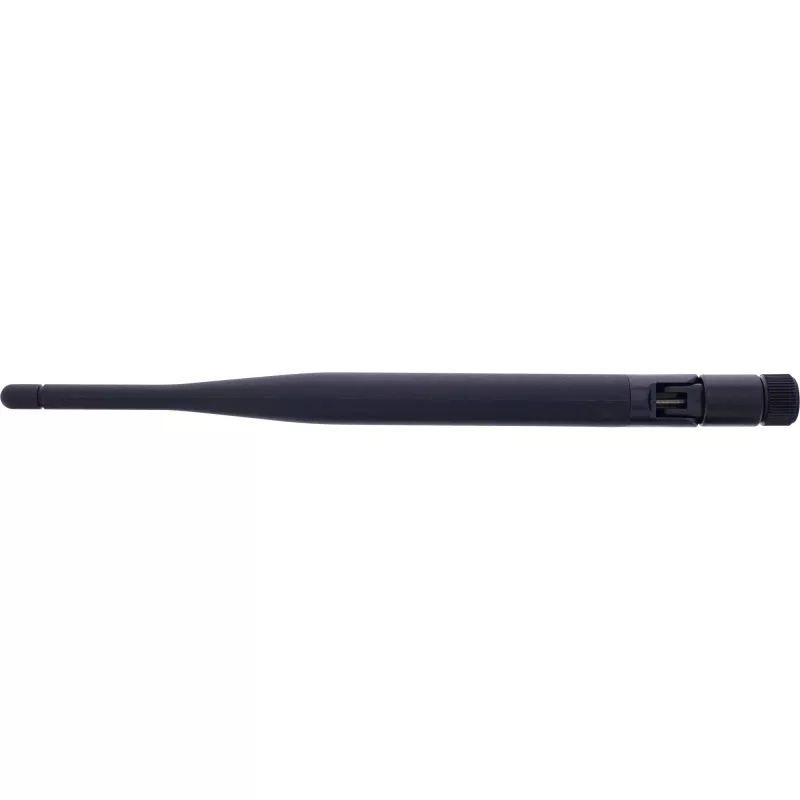

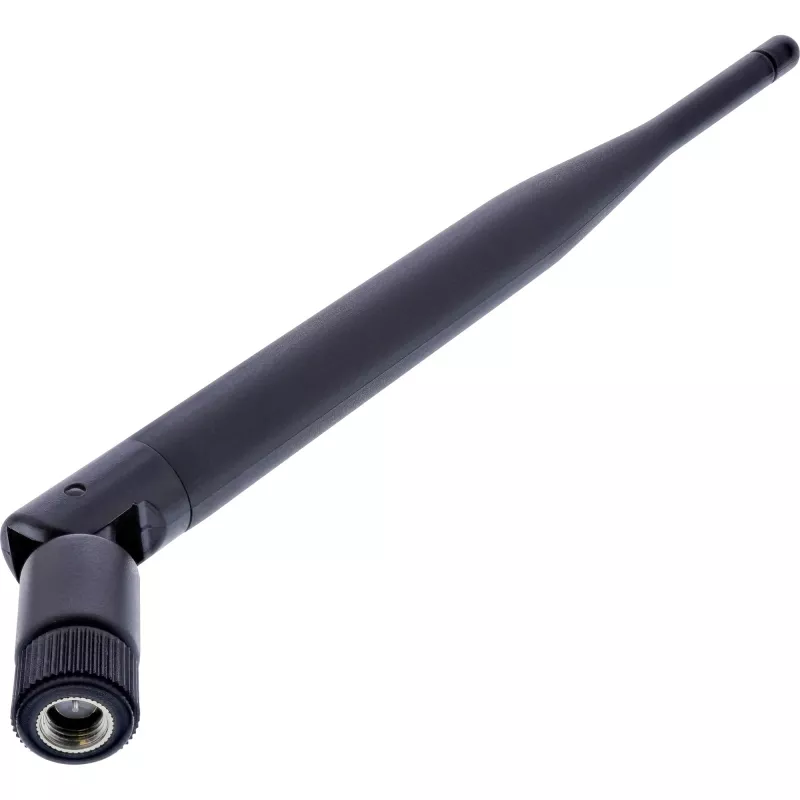

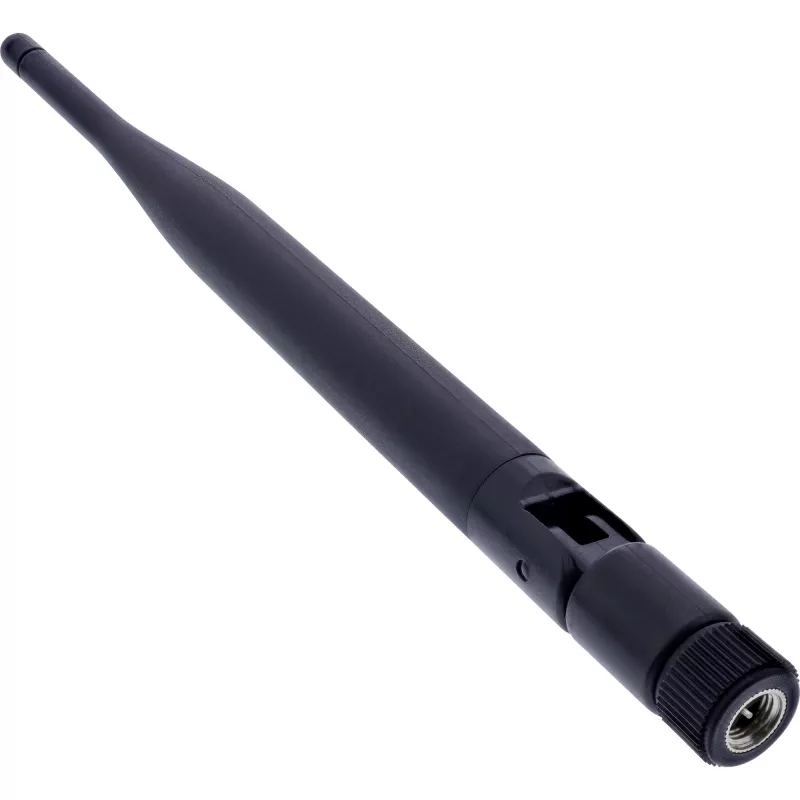

The InLine WIFI Antenna 2.4GHz with SMA male connector is a compact external antenna designed to improve WLAN signal reception for devices with an SMA or reverse-SMA connection. With a 5 dBi gain and operation in the 2.4–2.5 GHz band, it is suitable for amplifying the range and stability of Wi‑Fi cards, routers or access points that accept an external antenna.

Advantages

The antenna offers a 5 dBi gain to increase signal reach and reception quality while maintaining a standard 50 Ω impedance for compatibility. Its SMA male connector allows straightforward installation on compatible devices, and the black housing provides a discreet, unobtrusive appearance.

Suitable for

• Extending range of USB or PCIe WLAN adapters with SMA/reverse-SMA ports
• Improving reception on routers or access points with an external antenna connector
• Boosting signal strength in small home or office Wi‑Fi networks

Key specifications

• Frequency band: 2.4–2.5 GHz
• Antenna gain (max): 5 dBi
• Impedance: 50 Ω
• Connector: SMA male
• Colour: Black
• Brand: InLine, MPN: 40800A, EAN: 4043718073788

How to use

Attach the SMA male connector to the corresponding SMA or reverse-SMA socket on your WLAN card, router or access point. Position the antenna vertically for general coverage or adjust the orientation to optimize signal strength for the target direction. Ensure connectors are securely tightened but avoid over‑torquing to prevent damage.

Recommendations

For best results, place the antenna in a location free from large metal obstacles and away from other electronic devices that may cause interference. Test different orientations and positions to find the optimal placement for improved reception within the 2.4 GHz network range.
