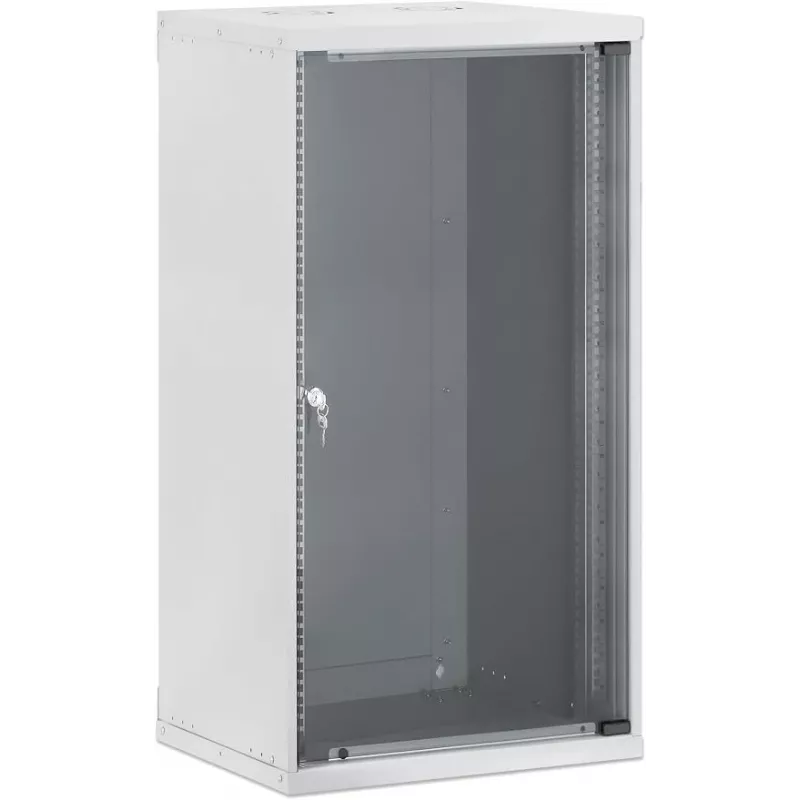

Intellinet 19 inch netwerk-wandkast, Basic Line, 20U, 400 mm diepte, grijs 716741

Managing network equipment in small offices or retail spaces often means choosing between a bulky floor-standing rack and a flimsy wall mount. The Intellinet 19" Network Wall Cabinet, Basic Line, 20U, 400 mm Depth, Grey solves this by offering a sturdy, lockable enclosure that can be wall-mounted or freestanding, with the option to add castors for mobility.

Who is it for

This cabinet suits IT installers and businesses that need to secure patch panels, switches, and small servers in a compact footprint. Its 20U capacity and 400 mm depth accommodate standard 19-inch equipment, while the flatpack design simplifies transport to upper floors or tight spaces.

Main features

• 20U rack capacity with 19-inch mounting rails
• 400 mm usable depth, 600 mm width, 990 mm height
• Wall-mountable or freestanding; optional castors (not included)
• Lockable tempered glass front door and removable, lockable side panels
• SPCC cold rolled steel construction: 2.0 mm rack profiles, 1.2 mm other panels
• Top and bottom cable entry for clean routing
• Maximum static load capacity: 60 kg
• Grey finish (RAL 9005)

Specifications

• Rack standard: 19-inch
• Rack units: 20U
• External dimensions (W x D x H): 600 x 400 x 990 mm
• Material: SPCC cold rolled steel
• Front door: tempered glass, lockable
• Side panels: removable, lockable
• Cable entry: top and bottom
• Max. static load capacity: 60 kg
• Series: Basic Line
• Assembly: flatpack (assembly required)

Tips

For mobile applications, add castors (available separately) to roll the cabinet between work areas. Use the removable side panels for easy access during installation, and plan cable routing through the top or bottom openings before mounting.
