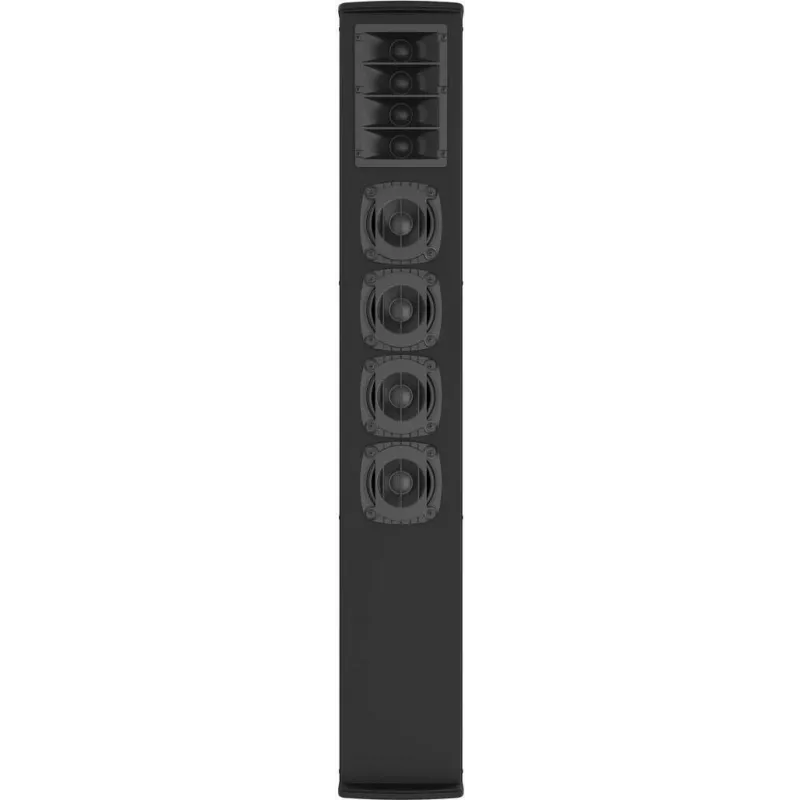

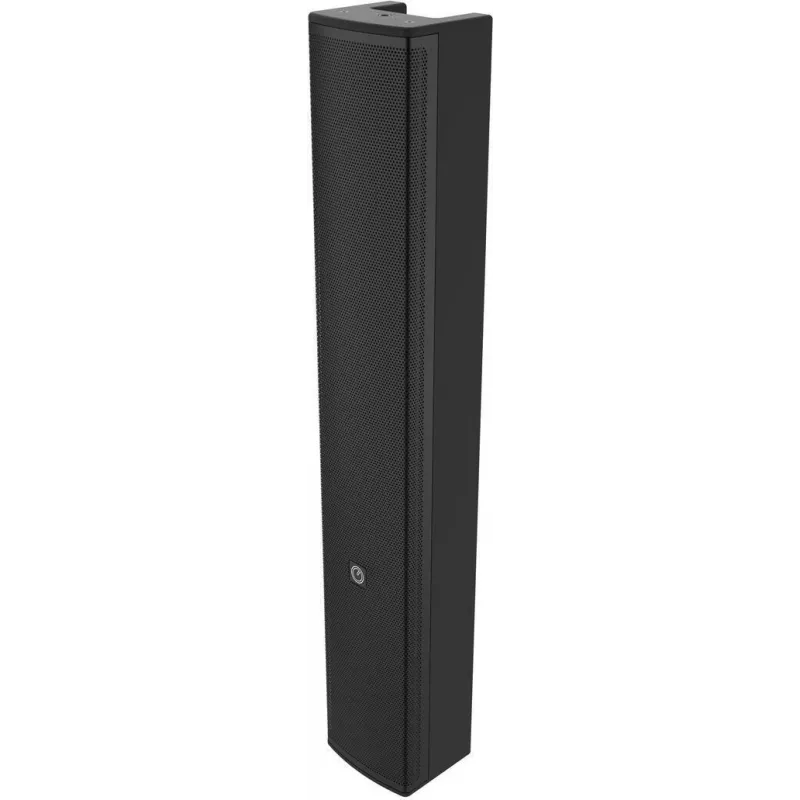

INTUSONIC 4VM100T 2-weg full-range zuilluidspreker zwart (12604183)

For installations that demand clear, focused sound in acoustically challenging spaces, the INTUSONIC 4VM100T delivers a 2-way full-range column speaker solution. Its slim aluminum enclosure houses four 3-inch full-range drivers and a 1-inch dome tweeter, providing a 120° horizontal by 30° vertical dispersion pattern for even coverage without excessive ceiling or floor reflections. The built-in 100V line transformer with taps at 100W, 50W, 25W, and 12.5W allows flexible power distribution across multiple speakers in commercial audio systems. With a frequency response from 100 Hz to 20 kHz and a maximum SPL of 112 dB, it reproduces speech and music with clarity. The included wall mount bracket simplifies installation, and the Phoenix terminal block ensures secure connections.

Who is it for

This column speaker is intended for installers and system integrators working on commercial projects such as retail stores, restaurants, conference rooms, houses of worship, and transportation hubs. It suits environments where voice intelligibility and uniform sound coverage are priorities, and where a low-profile, architecturally unobtrusive speaker is preferred.

Main features

• 2-way full-range design with 4x 3" full-range drivers and 1x 1" dome tweeter
• 100V line operation with multiple power taps for distributed audio systems
• Aluminum housing in black for durability and discreet installation
• Wide horizontal dispersion (120°) and controlled vertical dispersion (30°)
• Includes wall mount bracket for easy mounting
• Phoenix terminal block for secure wiring

Specifications

• Speaker type: 2-way full-range column speaker
• Woofer/mid-range drivers: 4x 3" full-range
• Tweeter: 1x 1" dome tweeter
• RMS power (8 Ohm): 100 W
• Peak power (8 Ohm): 200 W
• Impedance: 8 Ohm
• 100V line taps: 100W, 50W, 25W, 12.5W
• Frequency response: 100 Hz - 20 kHz
• Sensitivity (1W/1m): 92 dB
• Max SPL: 112 dB
• Horizontal dispersion: 120°
• Vertical dispersion: 30°
• Connectors: Phoenix terminal block
• Housing material: Aluminum
• Colour: Black
• Mounting options: Wall mount bracket (included)
• Transformer type: 100V line transformer

Tips

For optimal performance, mount the column speaker vertically at ear level and avoid obstructions that could block the line of sight to the listening area. When connecting multiple speakers to a 100V amplifier, ensure the total tapped wattage does not exceed the amplifier's rated output. Use the included wall bracket to angle the speaker slightly downward if mounting above seated listeners.
