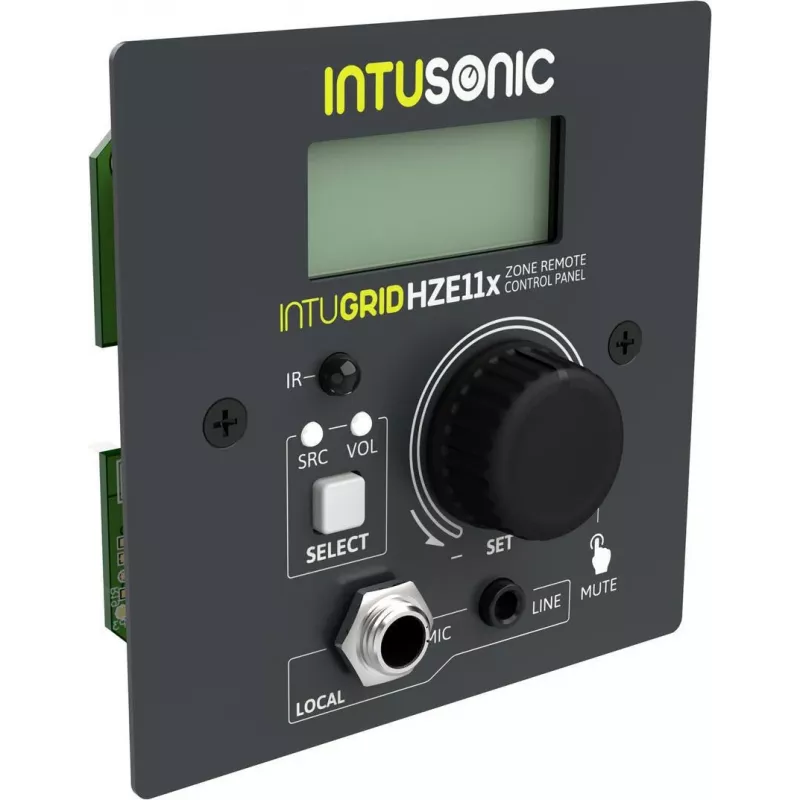

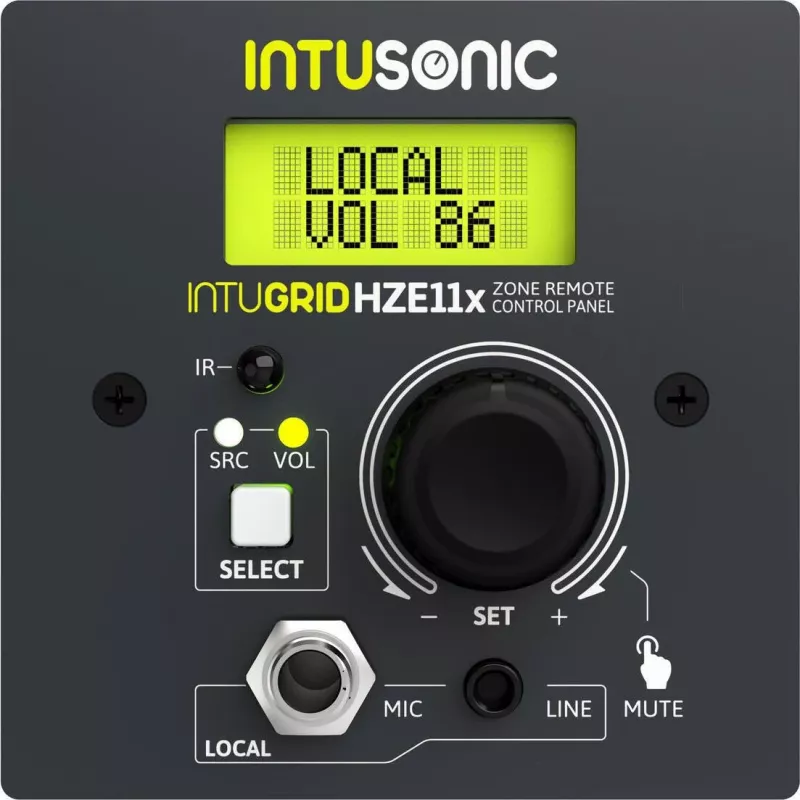

INTUSONIC HZE11+ zone-afstandsbedieningspaneel (12604191)

Take direct control of your multi-zone audio system with the INTUSONIC HZE11+ Zone Remote Control Panel. Unlike basic wall-mounted volume knobs, this panel gives you full command over zone selection, volume, and source switching from a single flush-mount unit. It connects to the HZE11+ matrix mixer over standard CAT5/CAT6 cable, drawing power directly from the mixer via PoE—no local power supply needed.

Highlights

• Backlit LCD display for clear feedback even in dark rooms
• Rotary encoder for precise volume adjustment and push buttons for zone/source selection
• LED status indicators for at-a-glance system state
• Wall-mount design fits standard EU flush-mount boxes; surface mount possible with optional back box
• Seamless integration with INTUSONIC HZE11+ multi-zone matrix mixer

In daily use

Install the panel in any zone—conference room, restaurant, or retail space—and let users adjust their own audio without touching the central mixer. The RJ45 connection supports cable runs up to 300 meters, so you can place panels far from the matrix. The white ABS housing blends with most interiors, and the backlit display remains readable in low light. Because power is delivered over the same Ethernet cable, installation is clean and requires only one low-voltage run.

Full specifications

• Product type: Audio zone remote control panel
• Compatibility: INTUSONIC HZE11+ multi-zone matrix mixer
• Control functions: Zone selection, volume control, audio source selection
• Display: Backlit LCD
• Connection interface: RJ45 (Ethernet)
• Cable type: CAT5/CAT6 UTP
• Max cable length: 300 m
• Power supply: Power over Ethernet (PoE) from HZE11+ matrix
• Mounting: Wall-mount, standard EU flush-mount box compatible
• User interface: Rotary encoder (volume), push buttons (zone/source)
• Colour: White
• Material: ABS plastic
• Indicators: LED status indicators
• Installation: Flush-mount or surface-mount (with optional back box)

Final note

A dedicated remote panel that extends the HZE11+ mixer's control to every zone, combining reliable PoE connectivity with an intuitive interface.
