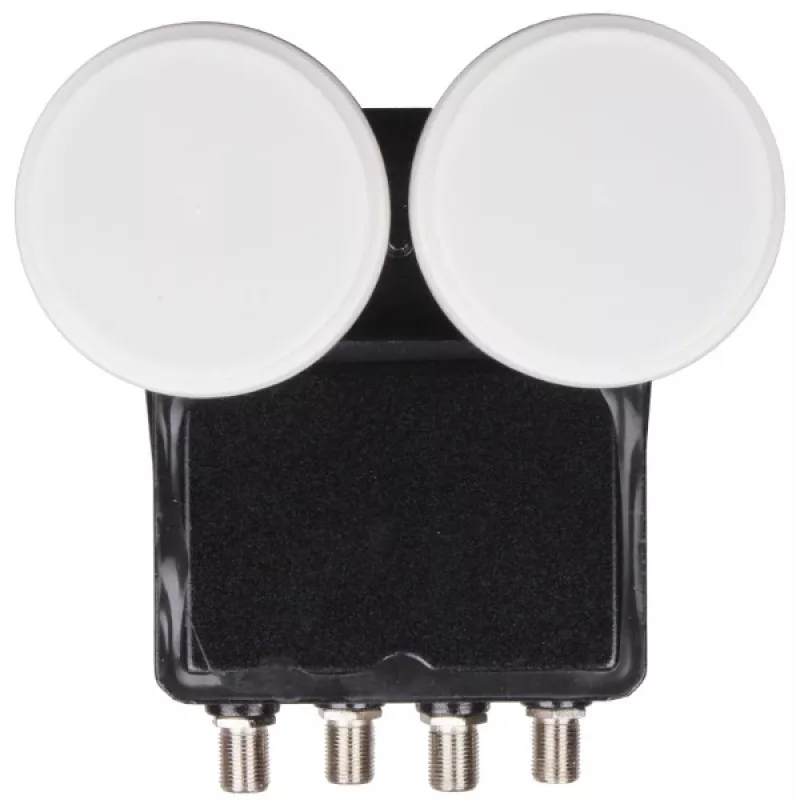

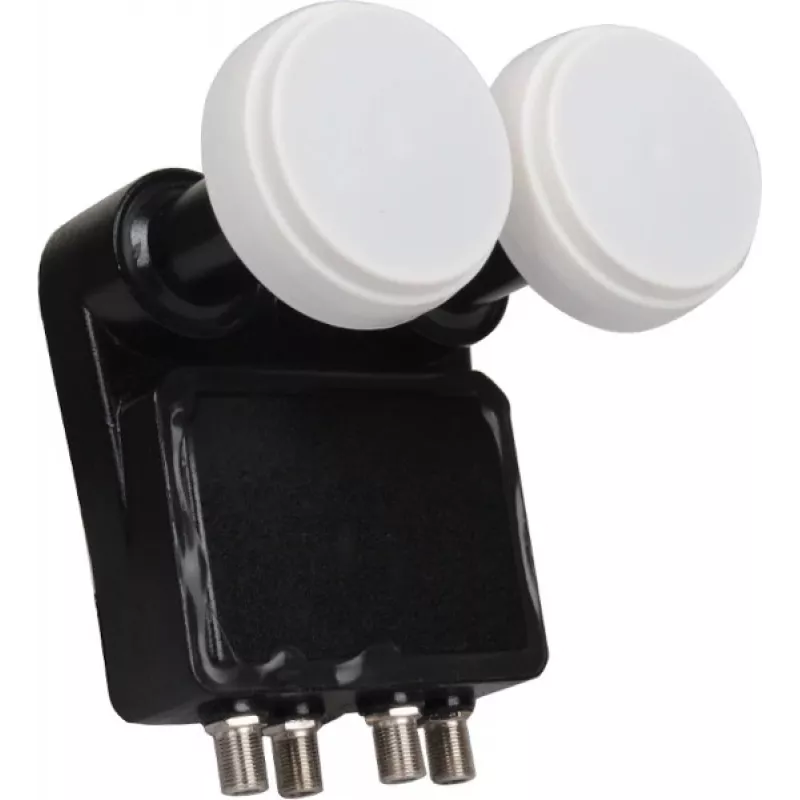

INVERTO monoblock quad LNB 4 uitgangen 6° afstand 0,2 dB

The INVERTO Monoblock Quad LNB is a high-performance satellite LNB designed for receiving signals from two satellites spaced 6° apart, such as Astra 19.2°E and Hotbird 13°E. With four independent outputs, it supports multiple receivers or recording devices simultaneously. The ultra-low noise figure of 0.2 dB ensures excellent signal quality even in weak signal areas. Built with a weather-resistant housing and integrated rain shield, this LNB delivers reliable performance in all conditions.

Advantages

• Four independent outputs for multi-room or multi-tuner setups
• 6° satellite spacing ideal for Astra/Hotbird combination
• Very low noise figure (0.2 dB) for superior reception
• DiSEqC 1.0 compatible for easy switching
• Integrated pull-down rain shield protects against moisture
• Supports HDTV, 3D, and 4K signals

Suitable for

• Satellite TV installations requiring reception from two satellites 6° apart
• Multi-room distribution with up to four receivers
• Digital and high-definition satellite systems (HDTV, 3D, 4K)
• Professional and consumer satellite setups

Key specifications

• LNB Type: Monoblock Quad
• Number of Outputs: 4 (Independent)
• Satellite Spacing: 6°
• Noise Figure: 0.2 dB (typical)
• Input Frequency Low Band: 10.7 – 11.7 GHz
• Input Frequency High Band: 11.7 – 12.75 GHz
• Output Frequency Low Band: 950 – 1950 MHz
• Output Frequency High Band: 1100 – 2150 MHz
• LO Frequency Low Band: 9.75 GHz
• LO Frequency High Band: 10.6 GHz
• Conversion Gain: 55 dB (min)
• Cross Polarization Isolation: 22 dB (min)
• DiSEqC Support: 1.0
• Feed Diameter: 40 mm
• Connector Type: F-Type
• Power Consumption: 120 mA (max)
• Operating Temperature: -30 ~ +60 °C
• Weather Protection: Integrated Pull-Down Rain Shield
• HDTV/3D/4K Compatible: Yes

Recommendations

For optimal performance, use high-quality coaxial cables and ensure the LNB is properly aligned with the satellites. The integrated rain shield should be pulled down after installation to protect the connectors from moisture.
