Inverto wideband LNB converter 2 uitgangen 10,7-12,75 GHz

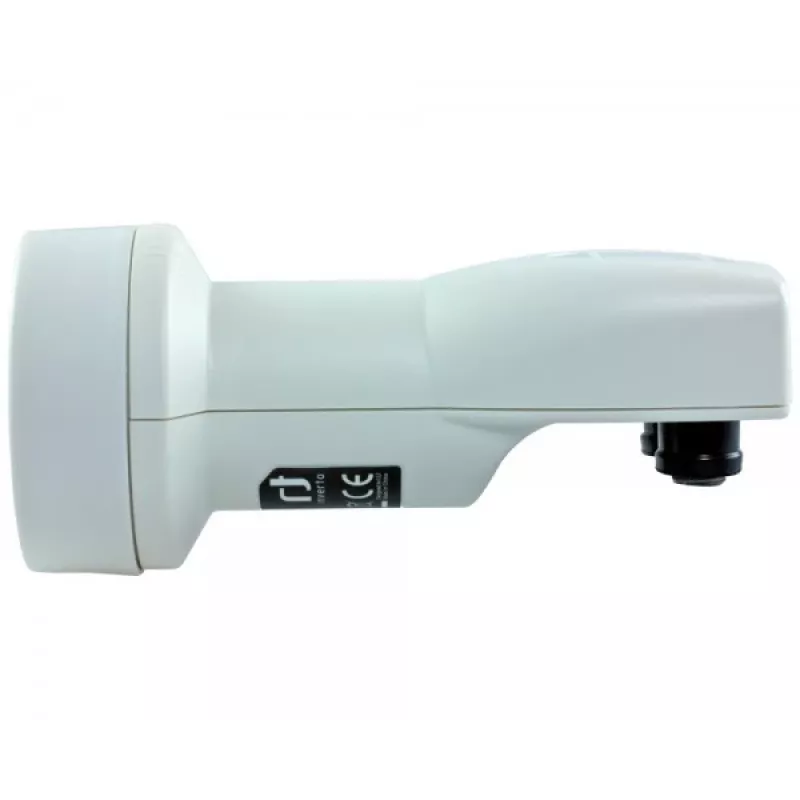

The Inverto Wideband LNB Converter (IDLP-WDB01-OOPRO-OPP) is a high-performance wideband LNB designed for modern satellite reception systems. It converts the full satellite frequency range (10.7-12.75 GHz) to a lower intermediate frequency (290-2340 MHz), making it compatible with wideband tuners and multiswitches such as Sky Q, Freesat 4K, and dCSS systems. With two F-type outputs for vertical and horizontal polarization, this LNB ensures reliable signal distribution for multi-room setups.

Advantages

This wideband LNB offers a low noise figure of 0.7 dB (typical) and a minimum conversion gain of 50 dB, ensuring excellent signal quality even in challenging conditions. Its weatherproof housing provides protection against rain, snow, and UV radiation, guaranteeing long-term outdoor durability. The 40 mm feedhorn diameter ensures compatibility with standard offset satellite dishes.

Suitable for

• Sky Q and Freesat 4K installations
• dCSS (Digital Channel Stacking Switch) systems
• Multi-room satellite TV distribution
• Wideband compatible satellite receivers

Key specifications

• LNB Type: Wideband
• Input Frequency Range: 10.7 - 12.75 GHz
• Output Frequency Range: 290 - 2340 MHz
• Local Oscillator Frequency: 10.4 GHz
• Noise Figure: 0.7 dB (Typ.)
• Conversion Gain: 50 dB (Min.)

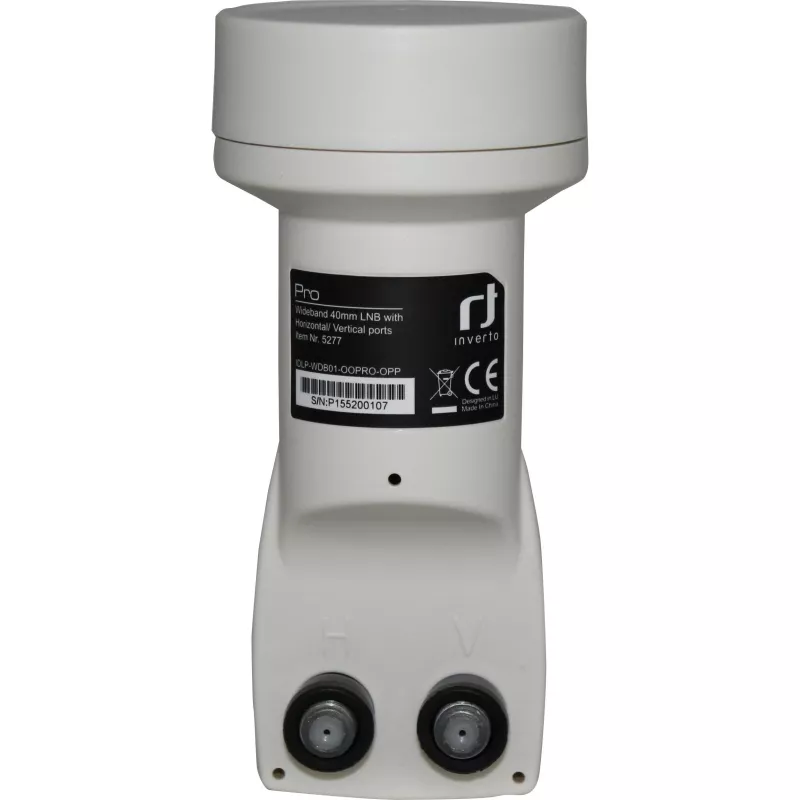

• Output Connectors: 2 x F-Type
• Polarization Outputs: Vertical, Horizontal
• Cross Polarization Isolation: 22 dB (Min.)
• Output Impedance: 75 Ohm
• Current Consumption: 120 mA (Max.)
• Operating Temperature: -30°C to +60°C

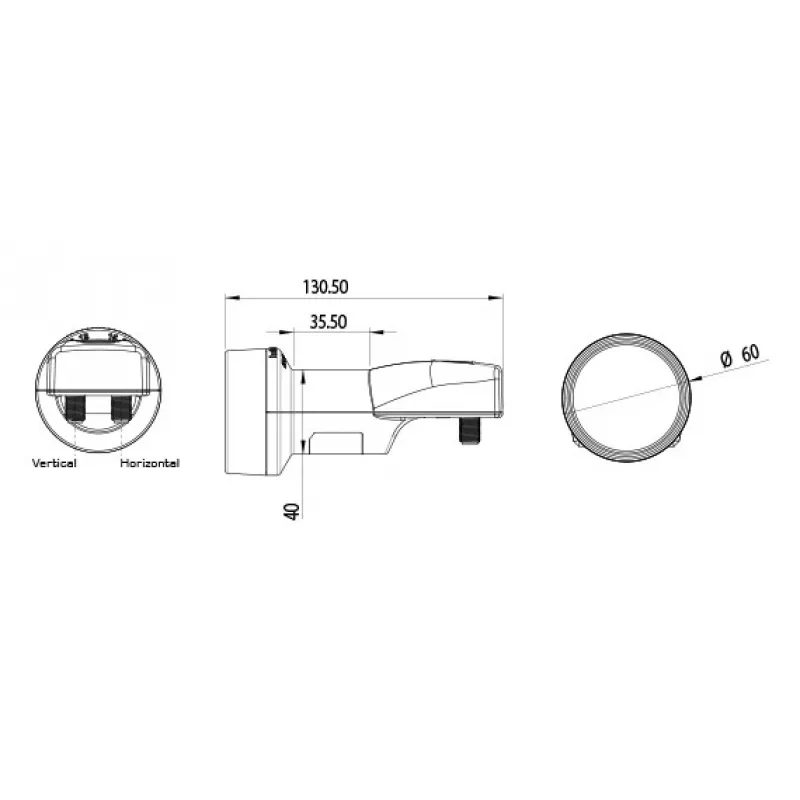

• Feed Diameter: 40 mm
• Water Protection: Weatherproof Housing

Recommendations

For optimal performance, use with high-quality F-type connectors and ensure proper sealing of connections against moisture. This LNB is ideal for upgrading existing satellite systems to support wideband technology.
