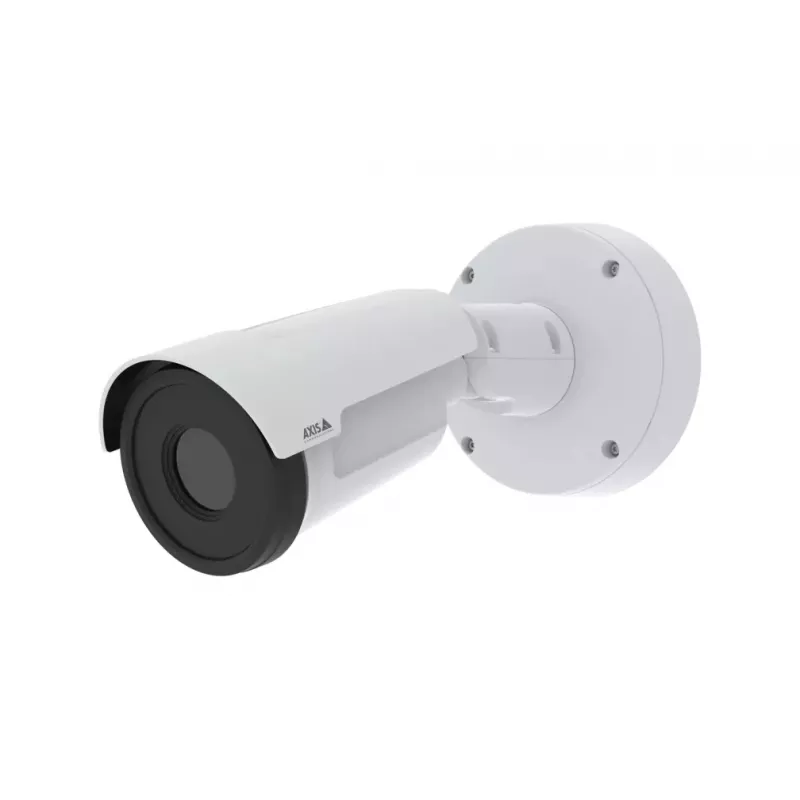

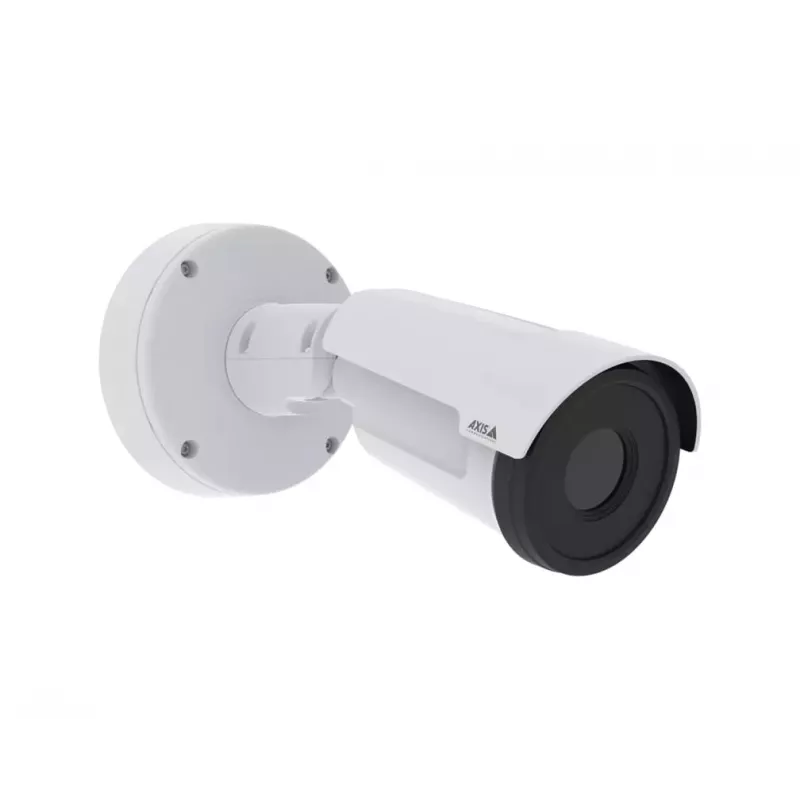

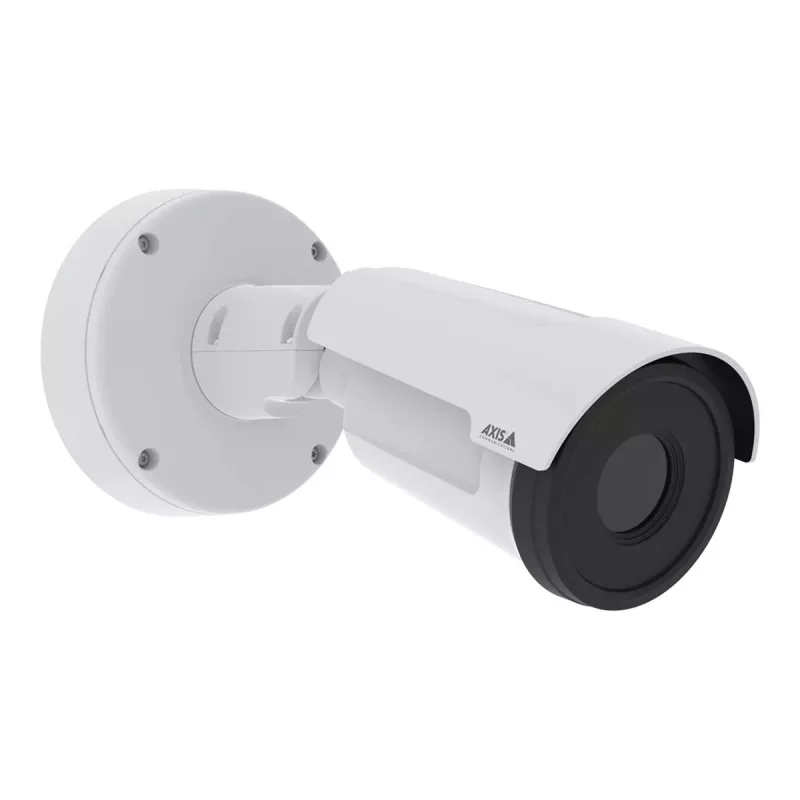

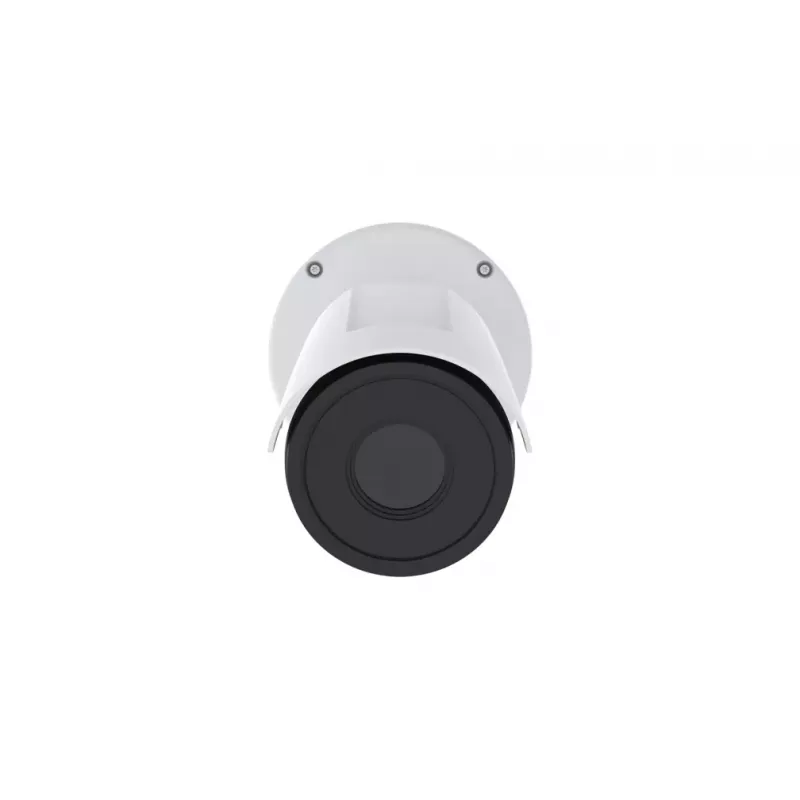

IP-beveiligingscamera Axis Q1971-E Bullet 768 x 576 pixel

The AXIS Q1971-E Bullet IP security camera provides continuous thermal detection and visual verification for indoor and outdoor surveillance. Using a thermal sensor (effective resolution 384 x 288) and a 768 x 576 video output, the camera detects heat signatures 24/7 regardless of light or most weather conditions. Five lens options (7, 13, 19, 25 and 35 mm) enable flexible installation and a horizontal field of view of about 10.5° with a vertical angle of 8°. The microbolometer-based thermal imaging and electronic image stabilization deliver stable video, and thermal palettes make different heat sources easier to interpret. Because thermal images do not allow personal identification, the camera supports privacy-sensitive monitoring.

Advantages

AXIS Q1971-E combines reliable round-the-clock thermal detection with visual verification while maintaining a low false alarm rate in low-contrast scenes. Preinstalled analytics (AXIS Motion Guard, AXIS Fence Guard and AXIS Loitering Guard) plus the option to add AXIS Perimeter Defender or third-party analytics enable advanced, event-triggered surveillance. The device is built for tough environments with IK10, IP66/67, NEMA TS2 and NEMA 4x ratings, and includes Axis Edge Vault and FIPS 140-2 Level 2 certified secure key storage to protect device integrity and data. Constructed from halogen-free materials and requiring no illumination for thermal detection, the camera contributes to lower system power consumption and a reduced carbon footprint.

Suitable for

• Perimeter and site protection for industrial and critical infrastructure
• Railway yards, ports and logistics hubs
• Remote outdoor areas where lighting is limited or undesirable
• Sensitive locations requiring privacy-preserving surveillance

Key specifications

• Sensor: Thermal microbolometer, effective resolution 384 x 288
• Video output resolution: 768 x 576 pixels
• Lens options: 7 mm, 13 mm, 19 mm, 25 mm, 35 mm
• Field of view: Horizontal ≈10.5°, Vertical ≈8° (depending on lens)
• Frame rate: 30 fps
• Connectivity: Wired Ethernet
• Mounting: Wall mount; suitable for indoor and outdoor placement
• Physical: Weight 1.4 kg; colour: white/black
• Ingress and impact protection: IK10, IP66/67; NEMA TS2, NEMA 4x

How to use

Install the camera using a suitable wall mount and select the appropriate lens for the required coverage distance. Connect the device to a wired Ethernet network for power and data. Use the camera’s web interface or Axis management software to configure thermal palettes, enable electronic image stabilization and set up preinstalled analytics (Motion Guard, Fence Guard, Loitering Guard). If desired, add AXIS Perimeter Defender or third-party analytics to refine detection and classification rules. Configure I/O ports to connect external devices such as horn speakers or strobe sirens for audio-visual alarms.

Recommendations

For optimal performance, choose the lens focal length that provides the required detection range (note that the camera’s closest focused distance is approximately 31.3 m), enable stabilization and thermal palettes, and perform periodic firmware and credential updates to maintain security. Use weatherproof cabling and compliant mounting hardware for outdoor installations.
