IP-beveiligingscamera Hikvision Pro Series DS-2CD2T86G2H-4I 4 mm

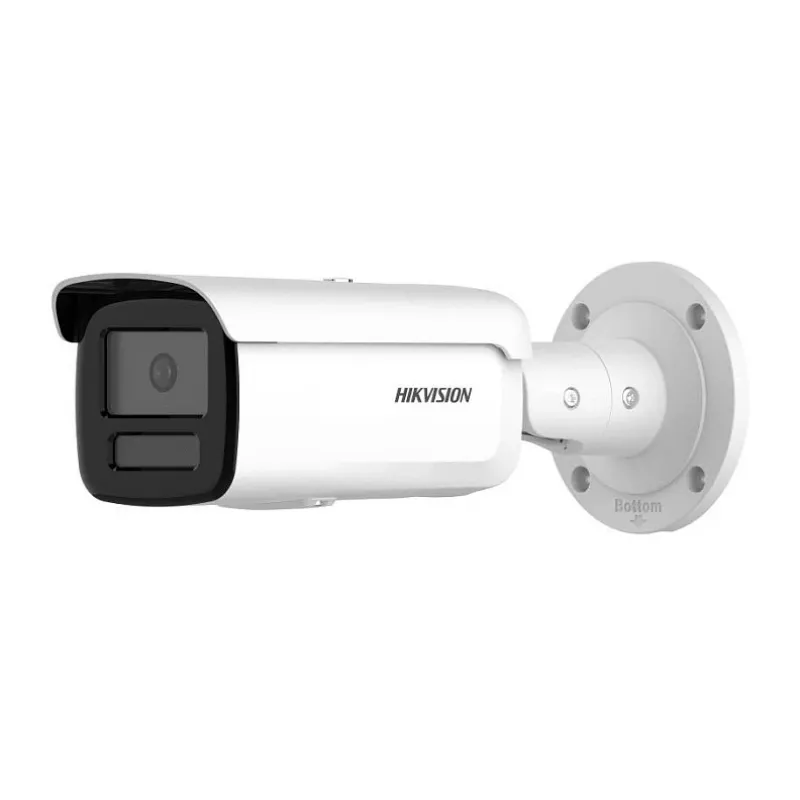

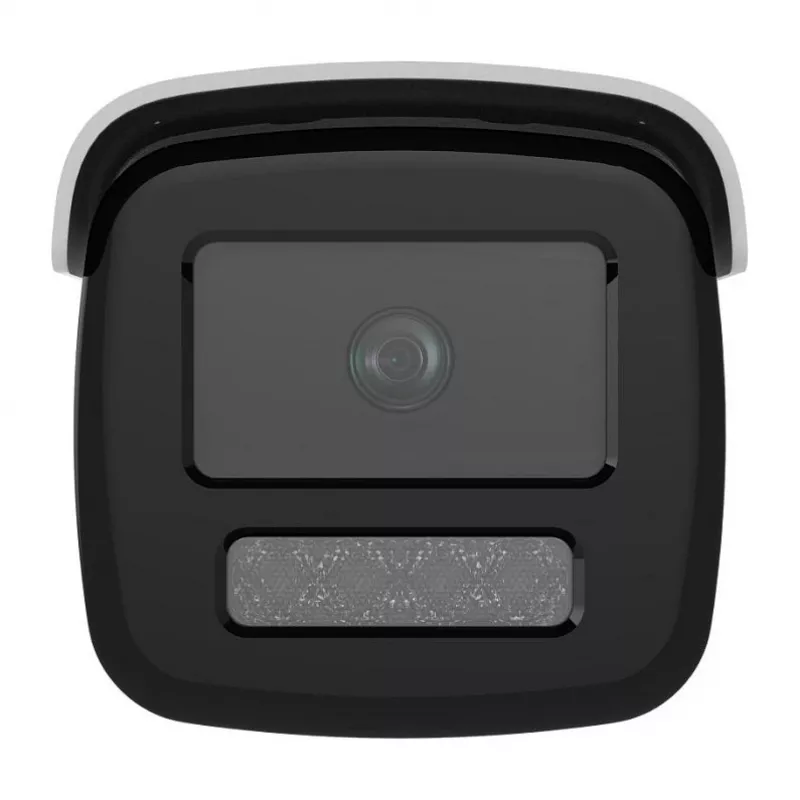

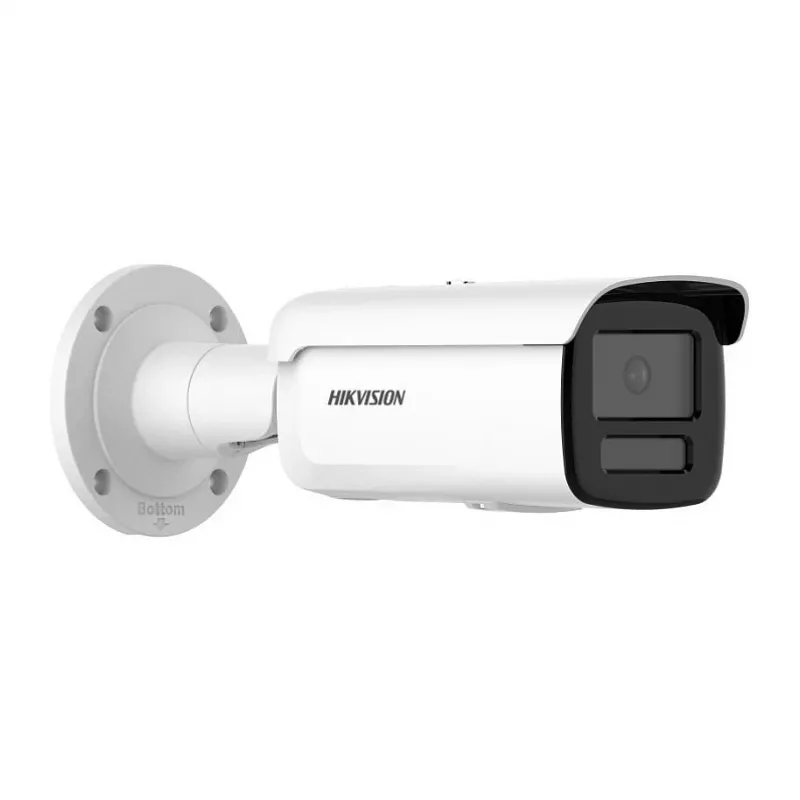

The Hikvision Pro Series DS-2CD2T86G2H-4I 4mm is an outdoor bullet IP security camera offering 3840 x 2160 resolution and a 4 mm lens. It uses a CMOS sensor to capture detailed video, supports wired Ethernet connectivity, and is designed for ceiling or wall mounting. Built for perimeter and site surveillance, the camera is available in black and white and delivers long-range detection up to 109 m with a wide horizontal viewing angle of 90° and vertical viewing angle of 45.8°.

Advantages

Equipped with Hikvision AcuSense deep-learning algorithms, the camera classifies human and vehicle targets at the front and back end, which reduces false alarms and improves detection efficiency. The model provides 4K resolution for clearer identification, a 360° rotation capability for flexible coverage, and reliable wired Ethernet connectivity for stable video transmission. It also supports video motion detection to trigger alerts when movement is detected.

Suitable for

• Perimeter and outdoor site surveillance
• Parking lots and vehicle access points
• Entrance areas and building façades
• Commercial and industrial property monitoring

Key specifications

• Model: DS-2CD2T86G2H-4I
• Resolution: 3840 x 2160 pixels (4K)
• Lens: 4 mm
• Sensor: CMOS
• Viewing angles: Horizontal 90°, Vertical 45.8°
• Rotation: 360°
• Detection distance: 109 m
• Frame rate: 30 fps
• Connectivity: Wired Ethernet (no Wi‑Fi)
• Motion detection: Yes
• Placement: Outdoor, ceiling or wall mount
• Colours: Black, White
• Weight: 1.18 kg

How to use

Install the camera on a stable ceiling or wall bracket at the recommended height for your surveillance area and connect it to a wired Ethernet network for power and data transmission if Power over Ethernet (PoE) is supported by your system. Configure the camera using Hikvision-compatible software or a network video recorder (NVR), set the video resolution to 3840 x 2160 for 4K recording, and enable AcuSense target classification and motion detection to tailor alerting to human and vehicle events. Adjust the viewing angle and rotation as needed to cover the intended field of view.

Recommendations

For optimal performance, mount the camera where the lens has an unobstructed view, ensure firmware is up to date, and configure AcuSense settings according to your site’s traffic and environmental conditions to reduce false alarms. Use a compatible Hikvision NVR or management software for full access to classification and recording features.
